What is a schottky diode?
FAIRCHILD SEMICONDUCTOR SB330 Schottky Rectifier, Single, 30 V, 3 A, DO-201AD, 2 Pins, 500 mV
The SB330 is a Schottky Barrier Rectifier. This article mainly introduces Package, Pinout, Datasheet and other detailed information about ON Semiconductor SB330.
SB330
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.61297 | $0.61 |
| 10+ | $0.57828 | $5.78 |
| 100+ | $0.54554 | $54.55 |
| 500+ | $0.51466 | $257.33 |
| 1000+ | $0.48553 | $485.53 |
The SB330 is a Schottky Barrier Rectifier for use in low voltage high-frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.
The SB330 Pinout is shown as follows.
Pinout
Primary Characteristics
| IF(AV) | 3.0 A |
| VRRM | 20 V to 60 V |
| IFSM | 120 A |
| VF | 0.49 V, 0.68 V |
| TJ max | 125 °C, 150 °C |
The following figure is SB330 CAD Model.

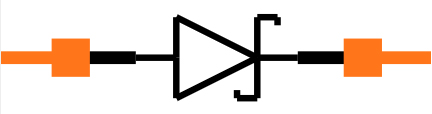

Symbol

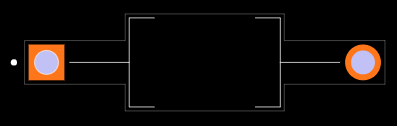

Footprint
3D Model
• Guard Ring Die Construction for Transient Protection
• Low Power Loss, High Efficiency
• High Surge Capability
• High Current Capability and Low Forward Voltage Drop
• Surge Overload Rating to 80A Peak
• For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications
• IEC 61000-4-2 (ESD - 150pF/330Ω) Contact - ±15kV
• Lead-Free Finish; RoHS Compliant
• For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities)
ON Semiconductor SB330 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SB330.
ON Semiconductor SB330 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SB330.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 13 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Weight | 360mg | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 3.6W | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -65°C | |
| Applications | GENERAL PURPOSE | |
| Additional Feature | FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Voltage - Rated DC | 30V | |
| Terminal Form | WIRE | |
| Current Rating | 3A | |
| Base Part Number | SB330 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 30V | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A | |
| Case Connection | ISOLATED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 3A | |
| Max Reverse Leakage Current | 500μA | |
| Operating Temperature - Junction | -65°C~125°C | |
| Max Surge Current | 80A | |
| Forward Voltage | 500mV | |
| Max Reverse Voltage (DC) | 30V | |
| Average Rectified Current | 3A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 30V | |
| Capacitance @ Vr, F | 180pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 80A | |
| Max Forward Surge Current (Ifsm) | 80A | |
| Natural Thermal Resistance | 40 °C/W | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| SR303-T/RDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, Silicon, | Frontier Electronics Co Ltd |
| SB330-E3/54DIODES | DIODE 3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode | Vishay Semiconductors |
| SB330-T/RDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, Silicon, | Frontier Electronics Co Ltd |
| SB330A-E3DIODES | DIODE 3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD, LEAD FREE, PLASTIC PACKAGE-2, Rectifier Diode | Vishay Semiconductors |
| SR303DIODES | Rectifier Diode | Cheng-Yi Electronic Co Ltd |
| SB330EDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 | Promax-Johnton Electronic Corporation |
| SB330-E3DIODES | DIODE 3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD, LEAD FREE, PLASTIC PACKAGE-2, Rectifier Diode | Vishay Semiconductors |
| SB330-E3/73DIODES | DIODE 3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode | Vishay Semiconductors |
| SB330A-E3/54DIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 | Vishay Semiconductors |
| SR303-TDIODES | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 | Diodes Incorporated |
• Low Voltage High-Frequency Inverters
• Freewheeling
• Dc-to-dc Converters
• Polarity Protection Applications

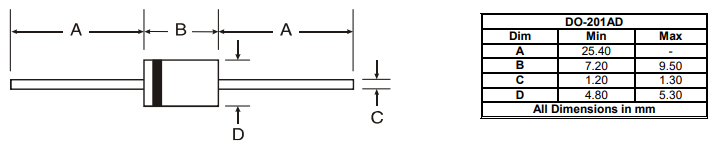

The following is SB330 Package.
Package
ON Semiconductor (Nasdaq: ON) is a leader in energy-efficient technology, enabling customers to cut worldwide energy consumption. In the automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply markets, the company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete, and custom solutions to help design engineers solve their unique design challenges. ON Semiconductor has a world-class supply chain and quality program, as well as a network of manufacturing sites, sales offices, and design centers in important markets in North America, Europe, and Asia Pacific.
Download datasheets and manufacturer documentation for SB330
