Gas Discharge Tubes - GDTs / Gas Plasma Arrestors 200V
The SE200 is a gas discharge tube from Littelfuse SE series. This article mainly introduce its datasheet, application and more detailed information about SE200
SE200 Gas Discharge Tube: Datasheet, Application, Advantage
Gas Discharge Tubes - GDTs / Gas Plasma Arrestors 200V The SE200 is a gas discharge tube from Littelfuse SE series.
47
Jul 30, 2021
Riva Benjamin
SE200
50000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.75814 | $2.76 |
| 10+ | $2.60202 | $26.02 |
| 100+ | $2.45473 | $245.47 |
| 500+ | $2.31579 | $1157.9 |
| 1000+ | $2.18471 | $2184.71 |
Unit Price:$2.75814
Subtotal: $2.76
Quick Links
SE200 Description
The SE200 is a gas discharge tube, coming from Littelfuse SE series. It offers high surge ratings in a miniature package designed for surface mounting on PCB with small size 3.2x1.6x1.6mm.
SE200 2D Model
Symbol
Footprint
SE200 Features
• RoHS compliant and Lead-free
• GHz working frequency
• Excellent stability on multiple pulse duty cycle
• Excellent response to fast rising transients.
• Ultra Low Insertion Loss
• 0.5-0.6KA surge capability tested with 8/20μS pulse as defined by IEC 61000-4-5
•Ultra small devices offered in a variety of mounting lead forms
• Non-Radioactive
• Low capacitance (<0.5pF)
• Voltage Ranges 140V to 500V
• UL recognized
• Conforms to ITU-T K12, IEC 1000-4-5
• Square Outline
Specifications
Littelfuse Inc. SE200 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SE200.
SE200 Tech Specifications
SE200 Tech Specifications
Littelfuse Inc. SE200 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SE200.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 1206 (3216 Metric) | |
| Packaging | Tape & Reel (TR) | |
| Series | SE | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| Max Operating Temperature | 90°C | |
| Min Operating Temperature | -40°C | |
| Case Code (Metric) | 3216 | |
| Case Code (Imperial) | 1206 | |
| Insulation Resistance | 1GOhm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Poles | 2Poles | |
| Peak Pulse Current | 500A | |
| Fail Short | No | |
| Voltage - DC Spark Over (Nom) | 200V | |
| Length | 3.2mm | |
| RoHS Status | ROHS3 Compliant |
SE200 Application
• Communication equipment
• CATV equipment
• Test equipment
• Data lines
• Power supplies
• Telecom SLIC protection
• Broadband equipment
• ADSL equipment, including ADSL2+
• XDSL equipment
• Satellite and CATV equipment
• General telecom equipment
SE200 Advantage
The SE200 is a popular gas discharge tube. Its low insertion loss is perfectly suited to broadband equipment applications. However, the capacitance does not vary with voltage, and will not cause operational problems with ADSL2+, where capacitance variation across Tip and Ring is undesirable. And it is extremely robust as well as is able to divert a 500A-600A pulse in a miniature package 1206 without destruction.
SE200 Dimensions

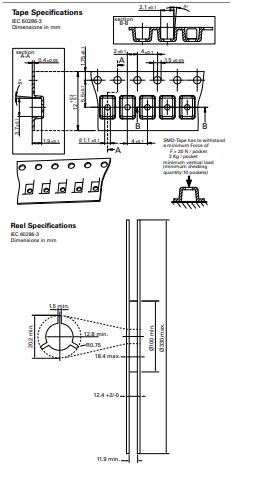

SE200 Manufacturer
Littelfuse products are vital components in applications that use electrical energy, from consumer electronics to vehicles and industrial facilities. They offer the industry’s broadest and deepest portfolio of circuit protection products, with growing platforms in power control and sensing.
Datasheet PDF
Download datasheets and manufacturer documentation for Littelfuse Inc. SE200.
SE200 Documents
SE200 Documents
Download datasheets and manufacturer documentation for SE200
PCN Design/Specification
GDT Capacity Expansion 01/Feb/2016
Environmental Information
RoHS 3 Cert SE200
Frequently Asked Questions
What is the storage and operational temperature of SE200?
-40 to +90 °C.
What is the material of SE200?
Device Tin Plated 17.5±12.5 Microns, Construction Ceramic Insulator.
What is gas discharge tube?
GDTs (or simply gas tubes) are devices that employ an internal inert gas that ionizes and conducts during a transient event. Because the internal gas requires time to ionize, gas tubes can take a few microseconds to turn on or off “fire”.
Are gas discharge tubes polarized?
No, they have no “negative” or “positive” side.
What is a gas discharge tube used for?
Gas Discharge Tubes (GDTs) get used to protect personnel and sensitive equipment from hazardous transient voltages. Bourns® GDTs are used in primary and secondary applications and can withstand multiple applications of high surge current energy in excess of 25 KA.
FAQ
What is the storage and operational temperature of SE200?
-40 to +90 °C.
What is the material of SE200?
Device Tin Plated 17.5±12.5 Microns, Construction Ceramic Insulator.
What is gas discharge tube?
GDTs (or simply gas tubes) are devices that employ an internal inert gas that ionizes and conducts during a transient event. Because the internal gas requires time to ionize, gas tubes can take a few microseconds to turn on or off “fire”.
Are gas discharge tubes polarized?
No, they have no “negative” or “positive” side.
What is a gas discharge tube used for?
Gas Discharge Tubes (GDTs) get used to protect personnel and sensitive equipment from hazardous transient voltages. Bourns® GDTs are used in primary and secondary applications and can withstand multiple applications of high surge current energy in excess of 25 KA.
