SF1V-4-07L Relay Sockets RELAY SOCKET 10 POS DIN RAIL: Datasheet, Features, and Application

RELAY SOCKET 10 POS DIN RAIL SF1V-4-07L can be used to expand outputs for safety relay modules and safety controllers. So this article is going to talk about more detailed information about SF1V-4-07L.

Mar 14, 2022

Bernie Yale

RELAY SOCKET 10 POS DIN RAIL

SF1V-4-07L can be used to expand outputs for safety relay modules and safety controllers. So this article is going to talk about more detailed information about SF1V-4-07L.

SF1V-4-07L

370In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$17.1171	$17.12
10+	$16.14821	$161.48
100+	$15.23416	$1523.42
500+	$14.37185	$7185.93
1000+	$13.55834	$13558.34

Unit Price:$17.1171

Subtotal: $17.12

Quick Links

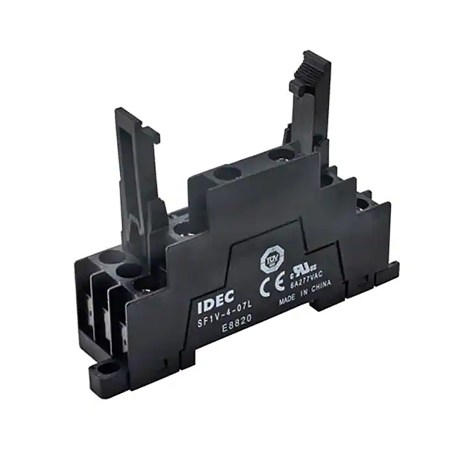

Overview of SF1V-4-07L

F1V-4-07L relay sockets for RF1V series force guided relays, which are used in safety circuits in combination with interlock switches, light curtains, and emergency stop switches to control outputs. They can also be used to expand outputs for safety relay modules and safety controllers.

SF1V-4-07L Features

Compact and slim
Built-in LED indicator, RTIII degree of protection, and counter-electromotive force models
Socket and PC board mounting
2-pole, 6 A contacts
Force guided contact mechanism (EN50205)
Fast response time
High shock resistance
Compatible with finger-safe SJ series sockets
1000 MOhm min insulation resistance
18 to 14 AWG wire
0.5 to 0.8 N-m tightening torque
50 N terminal strength
10 to 55 Hz vibration resistance
1000 m/sq sec shock resistance
5 to 85 % humidity

SF1V-4-07L Dimensions

SF1V-4-07L Dimensions

Specifications

IDEC SF1V-4-07L technical specifications, attributes, parameters and parts with similar specifications to IDEC SF1V-4-07L.

SF1V-4-07L Tech Specifications

IDEC SF1V-4-07L technical specifications, attributes, parameters and parts with similar specifications to IDEC SF1V-4-07L.

Product Attribute	Attribute Value
Factory Lead Time	4 Weeks
Mount	DIN Rail, Socket
Mounting Type	DIN Rail
Series	SF1V
Published	2009
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw

Product Attribute	Attribute Value
ECCN Code	EAR99
Type	Socket
Number of Positions	10Positions
HTS Code	8536.69.40.40
Voltage - Rated DC	250V
Current Rating	6A
Termination Style	Screw Terminal
Voltage - Rated AC	250V

Product Attribute	Attribute Value
Approval Agency	CSA
Height	58.9mm
Length	75mm
Width	22.4mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

View Similar

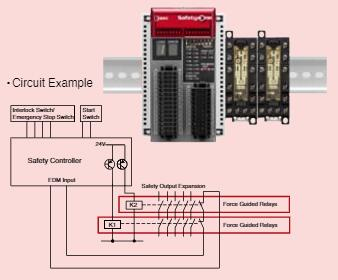

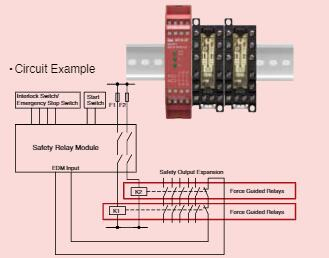

Output expansion for safety relay modules and safety controllers

Safety relay modules

Safety controllers

SF1V-4-07L Appications

Interlock switches
Light curtains
Emergency stop switches
Expand outputs for safety relay modules and safety controllers

SF1V-4-07L Manufacturer

IDEC has been working to create an "Optimum Environment for Humans and Machines" since 1945. Their cutting-edge products and technologies are designed with IDEC's "Save & Safety" philosophy in mind, which conserves energy while also ensuring safety. Machines have become indispensable in industry, and they are constantly evolving to be controlled by sophisticated systems. IDEC's objective is to provide cutting-edge solutions while also working to provide a safe and sustainable society. Constantly challenging themselves to be the best partner for their worldwide customers by leveraging their technology, acquired knowledge, and human resources to lead the future of automation.

Frequently Asked Questions

What’s the Mounting Type of SF1V-4-07L?

DIN Rail.

What’s the voltage of SF1V-4-07L?

250V.

What’s the Current Rating of SF1V-4-07L?

6A.

what is the SF1V-4-07L?

Force-guided relays are key electromechanical switching components used as a failsafe within safety circuits to detect failures such as contact welding or damage to the contact spring.
