How to make 12V to 220V AC Inverter 500W circuit using SG3525A with Feedback
ON SEMICONDUCTOR SG3525ANGDC/DC Converter, 35V-8V supply, 400 kHz, 18V/400mA out, DIP-16
The SG3525A PWM Controller offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
SG3525ANG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.49632 | $1.5 |
| 10+ | $1.41163 | $14.12 |
| 100+ | $1.33172 | $133.17 |
| 500+ | $1.25634 | $628.17 |
| 1000+ | $1.18523 | $1185.23 |
Pinout

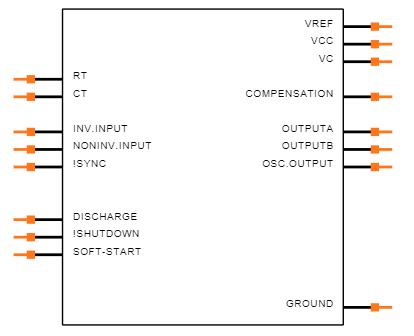

Symbol

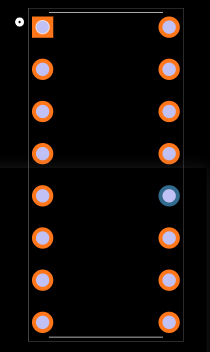

Footprint

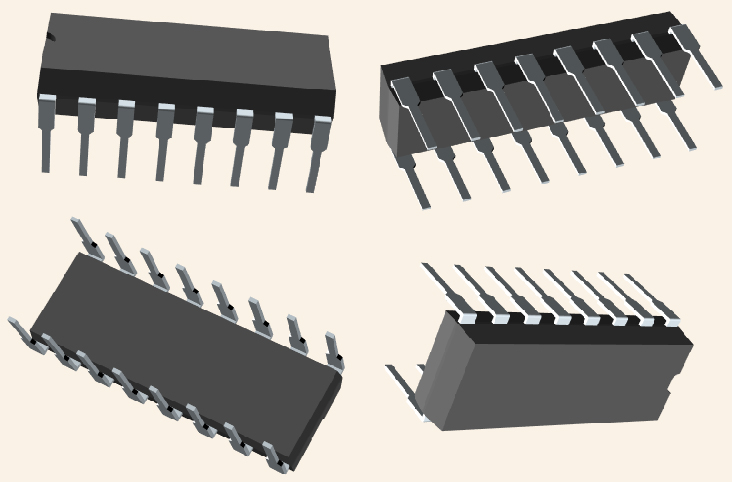

3D Model
The SG3525A Pulse Width Modulator Control circuits, It is a pulse width modulation controller IC which has 16 pins. It provides two pulse width modulator signal which is a complement of each other. It is used to generate a PWM signal for power electronics projects and also for switch-mode power supplies. It offers feedback circuitry to control the output voltage by comparing the feedback signal with a reference voltage. It has a protection circuitry that shutdown the PWM signal based on the feedback current limit.
And this article provides you with a basic overview of the SG3525A, including its pin descriptions, functions and specifications, etc., to help you quickly understand what SG3525A is.
• 8.0 V to 35 V Operation
• 5.1 V 1.0% Trimmed Reference
• 100 Hz to 400 kHz Oscillator Range
• Separate Oscillator Sync Pin
• Adjustable Deadtime Control
• Input Undervoltage Lockout
• Latching PWM to Prevent Multiple Pulses
• Pulse−by−Pulse Shutdown
• Dual Source/Sink Outputs: 400 mA Peak
• Pb−Free Packages are Available
The SG3525A Pulse Width Modulator Control circuit offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies. The on−chip +5.1 V reference is trimmed to 1% and the error amplifier has an input common−mode voltage range that includes the reference voltage, thus eliminating the need for external divider resistors. A sync input to the oscillator enables multiple units to be slaved or a single unit to be synchronized to an external system clock. A wide range of deadtime can be programmed by a single resistor connected between the CT and Discharge pins. This device also features built−in soft−start circuitry, requiring only an external timing capacitor. A shutdown pin controls both the soft−start circuitry and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft−start recycle with longer shutdown commands. The under voltage lockout inhibits the outputs and the changing of the soft−start capacitor when VCC is below nominal. The output stages are totem−pole design capable of sinking and sourcing in excess of 200 mA. The output stage of the SG3525A features NOR logic resulting in a low output for an off−state.
ON Semiconductor SG3525ANG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SG3525ANG.
ON Semiconductor SG3525ANG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SG3525ANG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 16 hours ago) | |
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Number of Pins | 16Pins | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Tube | |
| Published | 2011 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Frequency | 400kHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | SG3525A | |
| Function | Step-Up/Step-Down | |
| Number of Outputs | 2Outputs | |
| Qualification Status | Not Qualified | |
| Output Voltage | 18V | |
| Output Type | Transistor Driver | |
| Input Voltage-Nom | 20V | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Output Configuration | Positive | |
| Output Current | 100mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply (Vcc/Vdd) | 8V~35V | |
| Control Features | Enable, Frequency Control, Soft Start | |
| Input Voltage (Min) | 8V | |
| Topology | Push-Pull | |
| Control Mode | VOLTAGE-MODE | |
| Frequency - Switching | 100Hz~400kHz | |
| Input Voltage (Max) | 35V | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Duty Cycle (Max) | 49% | |
| Output Phases | 1 | |
| Height Seated (Max) | 4.44mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Block Diagram
| Model number | Manufacturer | Description |
| UC3525AQTRG3 | Texas Instruments | 0.5A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PQCC20, GREEN, PLASTIC, LCC-20 |
| UC2525ADWTRG4 | Texas Instruments | Regulating Pulse Width Modulators 16-SOIC -25 to 85 |
| SG3525AP | STMicroelectronics | Voltage Mode PWM |
| SG3525ADW | Motorola Mobility LLC | 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PDSO16, PLASTIC, SO-16 |
| UC2525AQTR | Texas Instruments | 0.5A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PQCC20, PLASTIC, LCC-20 |
| UC3525AQTR | Texas Instruments | 0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PQCC20, GREEN, PLASTIC, LCC-20 |
| UC2525BQ | Unitrode Corporation | Switching Controller, Voltage-mode, 0.5A, 500kHz Switching Freq-Max, BIPolar, PQCC20, PLASTIC, LCC-20 |
| UC3525BDW | Texas Instruments | Enhanced 35V, Dual 0.4A 400KHz PWM controller with Low output when off, 0C to 70C 16-SOIC 0 to 70 |
| UC3525BDWTRG4 | Texas Instruments | Regulating Pulse Width Modulators 16-SOIC 0 to 70 |
| UC2525BQTR | Texas Instruments | 0.5A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PQCC20, PLASTIC, LCC-20 |
• SG3525 is a voltage mode PWM controller integrated circuit. It is used in maximum inverters available in the market.
• Even top inverters manufacture companies also use SG3525 in dc to dc converter part of the inverter. It is a 16 pin integrated circuit.
• It has two PWM outputs both are an inversion of each. Another advantage of SG3525 is that it has a built-in totem pole base PWM driver.
• If you want to know about the internal architecture of SG3535. Search its datasheet.
• Output pins can driver semiconductor devices up to a current range of 50mA. For example, if you are using a switch that requires more than 50mA to operate, then you will have to use driver IC as MOSFET driver IR2110.
• The description and functionality of each pin are given in the next section on the pinout of SG3525.
• DC-DC converters
• DC-AC inverters
• Home UPS systems
• Solar inverters
• Power supplies
• Half Bridge
• Push-Pull
• LCD/Plasma TV Converters
• High Power Ac−DC Adapters for Notebooks
• Industrial and Medical Power Sources
• Offline Battery Chargers
Package
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for ON Semiconductor SG3525ANG.
Download datasheets and manufacturer documentation for SG3525ANG
