SG3525A / SG1525A / SG2525A Pulse Width Modulation PWM / SMPS Controller

The SG3525AN is designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. This article is going to introduce pinout, applications, features, and more details about SG3525AN.

SG3525AN

183In Stock

Min.: 1 Mult.: 1

Quick Links

Overview of SG3525AN

The SG3525AN is designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip + 5.1 V reference is trimmed to ±1 % and the input common-mode range of the error amplifier includes the reference voltage eliminating external resistors. A sync input to the oscillator allows multiple units to slave or a single unit to be synchronized to an external system clock. A single resistor between the CT and the discharge terminals provides a wide range of dead time adjustments.

These devices also feature built-in soft-start circuitry with only an external timing capacitor required. A shutdown terminal controls both the soft-start circuity and the output stages, providing instantaneous turn off through the PWM latch with the pulsed shutdown, as well as soft-start recycle with longer shutdown commands.

SG3525AN Features

• 8.0 V to 35 V Operation

• 5.1 V 1.0% Trimmed Reference

• 100 Hz to 400 kHz Oscillator Range

• Separate Oscillator Sync Pin

• Adjustable Deadtime Control

• Input Undervoltage Lockout

• Latching PWM to Prevent Multiple Pulses

• Pulse−by−Pulse Shutdown

• Dual Source/Sink Outputs: 400 mA Peak

• Pb−Free Packages are Available*

SG3525AN Pinout

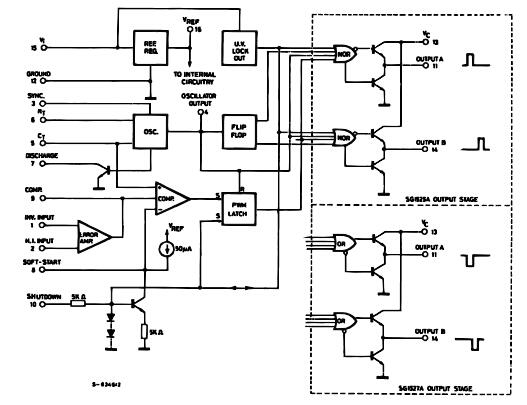

SG3525AN Block Diagram

SG3525AN Test Circuit

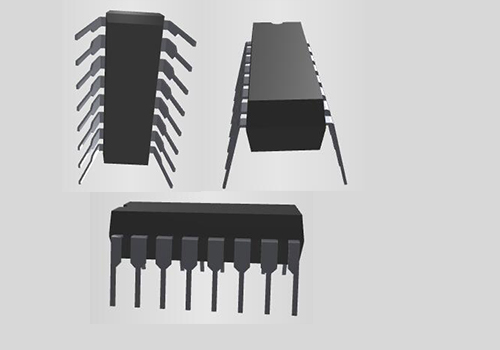

SG3525AN 3D Model

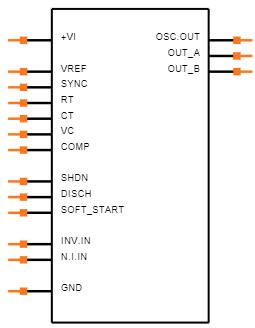

SG3525AN Symbol

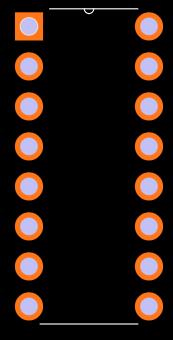

SG3525AN Footprint

SG3525AN 3D Model

Specifications

STMicroelectronics SG3525AN technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics SG3525AN.

SG3525AN Tech Specifications

STMicroelectronics SG3525AN technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics SG3525AN.

Product Attribute	Attribute Value
Factory Lead Time	10 Weeks
Mount	Surface Mount, Through Hole
Mounting Type	Through Hole
Package / Case	16-DIP (0.300, 7.62mm)
Number of Pins	16Pins
Weight	1.627801g
Operating Temperature	0°C~70°C TA
Packaging	Tube
Tolerance	1%
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16Terminations
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Frequency	400kHz

Product Attribute	Attribute Value
Base Part Number	SG3525
Function	Step-Down, Step-Up/Step-Down
Number of Outputs	2Outputs
Output Voltage	5.2V
Output Type	Transistor Driver
Input Voltage-Nom	20V
Analog IC - Other Type	SWITCHING CONTROLLER
Output Configuration	Positive
Power Dissipation	1W
Output Current	100mA
Voltage - Supply (Vcc/Vdd)	8V~35V
Max Supply Current	14mA
Quiescent Current	1mA
Control Features	Enable, Soft Start
Topology	Buck, Push-Pull
Min Input Voltage	8V
Control Mode	VOLTAGE-MODE

Product Attribute	Attribute Value
Frequency - Switching	100Hz~400kHz
Max Input Voltage	35V
Control Technique	PULSE WIDTH MODULATION
Reference Voltage	5.1V
Rise Time	100ns
Synchronous Rectifier	Yes
Fall Time (Typ)	50 ns
Nominal Input Voltage	35V
Max Duty Cycle	49 %
Output Phases	1
Height	1.6mm
Length	10mm
Width	4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

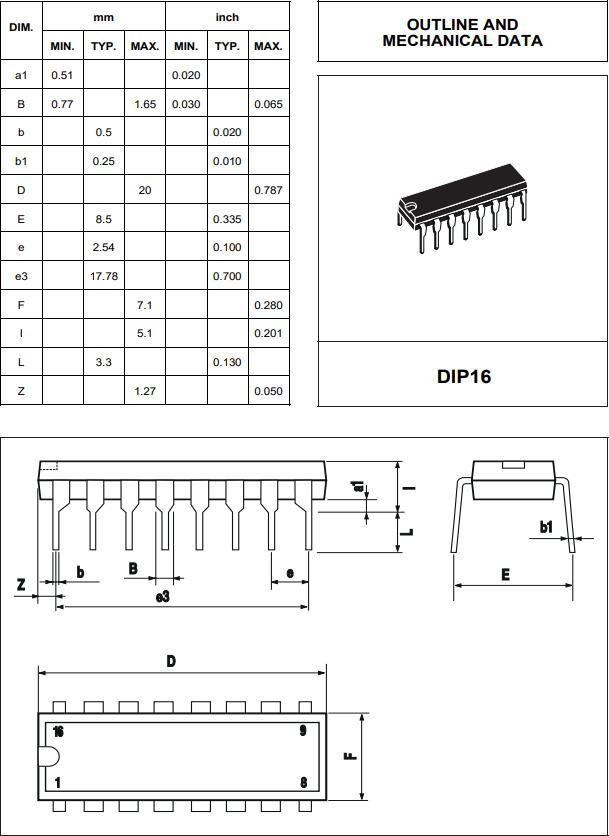

SG3525AN Package information
