SHA000001 Clock Oscillator: Pinout, Datasheet and Specification

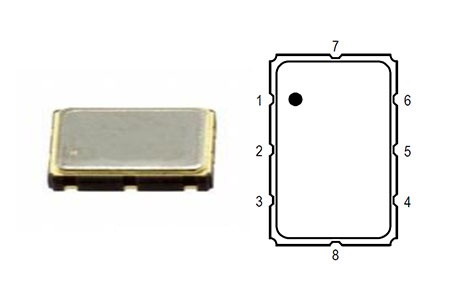

The SHA000001 includes a 3.3V HCSL PCIeG2 crystal clock oscillator that achieves superb jitter and stability over a broad range of operating conditions and frequencies. The output clock signal, generated internally with a patented oscillator design, provides HCSL differential levels. The device, available on tape and reel, is contained in a 7x5mm surface-mount ceramic package.

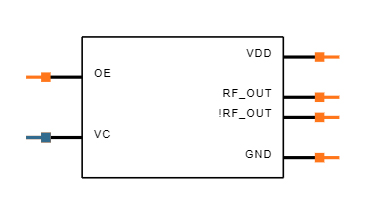

Symbol

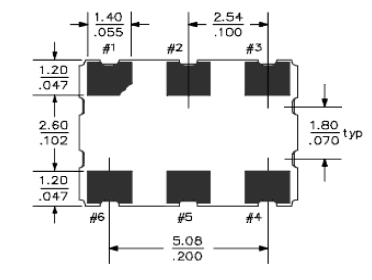

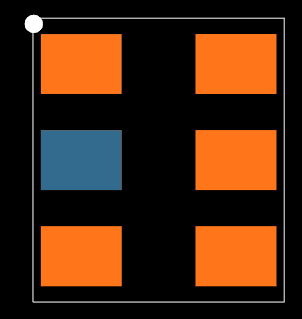

Footprint

Diodes Incorporated SHA000001 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated SHA000001.

• Thicker crystal than conventional overtones for improved reliability.

• Less than 3.1 ps RMS jitter (measured per PCISIG for PCIeG2 reference clock) with advanced non-PLL, patented XP Technology (U.S. Patent #7002423).

• Tight stability over a broad range of operating conditions HCSL differential output.

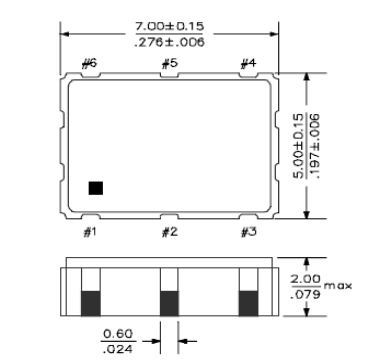

• Pin-compatible with standard 7x5mm packages.

• Designed for standard reflow & washing techniques IBIS models available RoHS compliant.

The clock oscillator is used to establish a reference frequency used for timing purposes. A typical application is the sequencing of events in a computer.

Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.

Download datasheets and manufacturer documentation for Diodes Incorporated SHA000001.
