SENSIRION - SHT21S - HUMIDITY/TEMP SENSOR, ANALOGUE, DFN-6 The SHT21 is a standard version humidity and temperature sensor IC in 6 pin DFN package.
231
Jul 9, 2021
Quinn Harvey
SHT21 Digital Temperature & Humidity Sensor Tutorial for ESP8266
SENSIRION - SHT21S - HUMIDITY/TEMP SENSOR, ANALOGUE, DFN-6
The SHT21 is a standard version humidity and temperature sensor IC in 6 pin DFN package. It has become an industry standard in terms of form factor and intelligence. This article mainly introduces pinout, datasheet, features, applications and other details about SHT21.
SHT21S
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.37853 | $7.38 |
| 10+ | $6.96088 | $69.61 |
| 100+ | $6.56687 | $656.69 |
| 500+ | $6.19516 | $3097.58 |
| 1000+ | $5.84449 | $5844.49 |
The SHT21 is a standard version humidity and temperature sensor IC of Sensirion . SHT21 sensor has become an industry standard in terms of form factor and intelligence. It is embedded in a reflow solderable Dual Flat No leads (DFN) package of 3 x 3mm foot print and 1.1mm height. SHT21 provides calibrated, linearized sensor signals in analog Sigma Delta Modulated (SDM) format.

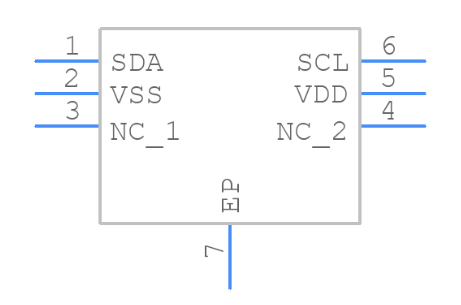

Symbol

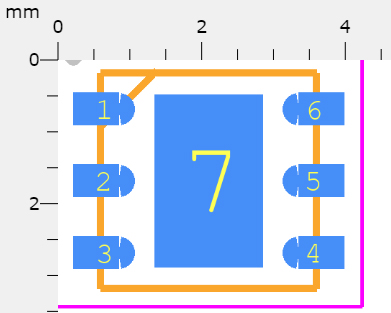

Footprint
3D Model
Sensirion AG SHT21S technical specifications, attributes, parameters and parts with similar specifications to Sensirion AG SHT21S.
Sensirion AG SHT21S technical specifications, attributes, parameters and parts with similar specifications to Sensirion AG SHT21S.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 5 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-TDFN Exposed Pad | |
| Number of Pins | 6Pins | |
| Supplier Device Package | 6-DFN (3x3) | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2010 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C | |
| Voltage - Supply | 2.1V~3.6V | |
| Output | 12b | |
| Output Type | SDM | |
| Operating Supply Voltage | 3V | |
| Max Supply Voltage | 3.6V | |
| Min Supply Voltage | 2.1V | |
| Accuracy | ±2% RH |
| Product Attribute | Attribute Value | |
|---|---|---|
| Response Time | 8s | |
| Sensor Type | Humidity, Temperature | |
| Humidity Range | 0 ~ 100% RH | |
| Height | 1.1mm | |
| Length | 3mm | |
| Width | 3mm | |
| REACH SVHC | Unknown | |
| RoHS Status | ROHS3 Compliant |
Fully calibrated
SDM interface convertible to analog output
Low power consumption
Excellent long term stability
DFN type package – reflow solderable
HTU21D is made based on the high-performance humidity sensor of Humirel, France. It has the characteristics of small size, low energy consumption, fast response speed, strong pressure resistance and high cost performance.
Sensirion is the leading manufacturer of high-quality sensors and sensor solutions for the measurement and control of humidity, and of gas and liquid flows worldwide. Sensirion’s sensors are used in a wide range of markets and different applications. Sensirion sensor products guarantee outstanding performance and correspondingly high customer utility. They are all based on our innovative CMOSens® Technology, which enables the sensor component to be combined with the analog and digital signal processing circuitry on a tiny CMOS silicon chip. This is implemented in advanced semiconductor technology, using specific microsystem processing steps to produce the microsensor structures on specially developed and patented semiconductor parts. The resulting sensor chips enable precise and reliable sensing of the desired physical parameters, such as relative humidity, temperature, or mass flow. CMOSens® accordingly represents a guarantee of high precision, reliability, and functionality combined with cost effectiveness.
Download datasheets and manufacturer documentation for Sensirion AG SHT21S.
Download datasheets and manufacturer documentation for SHT21S
