SHT31 is the next generation of Sensirion’s temperature and humidity sensors. This article mainly covers datasheet, pinout, features, advantages, and other details about SHT31.
SHT31-DIS-B

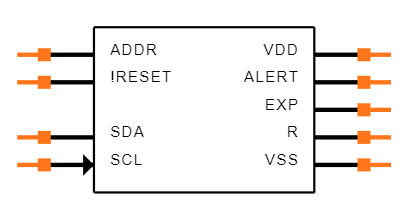

Symbol

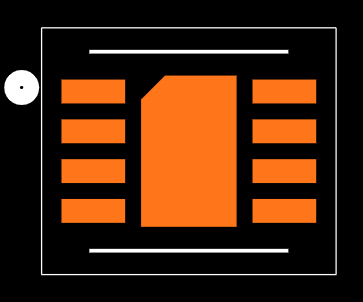

Footprint
3D Model
SHT31 is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability, and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user-selectable I2C addresses, and communication speeds of up to 1 MHz.
Sensirion SHT31-DIS-B technical specifications, attributes, parameters and parts with similar specifications to Sensirion SHT31-DIS-B.
Sensirion SHT31-DIS-B technical specifications, attributes, parameters and parts with similar specifications to Sensirion SHT31-DIS-B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mount | Surface Mount | |
| Package / Case | DFN | |
| Number of Pins | 8Pins | |
| Packaging | Cut Tape | |
| Published | 2014 | |
| Part Status | Active | |
| Max Operating Temperature | 125°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Output Type | Digital, I2C | |
| Operating Supply Voltage | 3.3V | |
| Interface | I2C | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2.15V | |
| Accuracy | 2 % | |
| Response Time | 8 s |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensor Type | Temperature | |
| Height | 1mm | |
| Length | 2.6mm | |
| Width | 2.6mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Fully calibrated, linearized, and temperature compensated digital output
Wide supply voltage range, from 2.4 V to 5.5 V
I2C Interface with communication speeds up to 1 MHz and two user-selectable addresses
Typical accuracy of ±1.5 %RH and ±0.1 °C for SHT35
Very fast start-up and measurement time
Tiny 8-Pin DFN package
High reliability and long-term stability
Industry-proven technology with a track record of more than 15 years
Designed for mass production
High process capability
High signal-to-noise ratio
Sensirion is the leading manufacturer of high-quality sensors and sensor solutions for the measurement and control of humidity, and gas and liquid flows.
Download datasheets and manufacturer documentation for Sensirion SHT31-DIS-B.
Download datasheets and manufacturer documentation for SHT31-DIS-B
