SI4133 Integrated Circuit: Pinout, Features and Datasheet

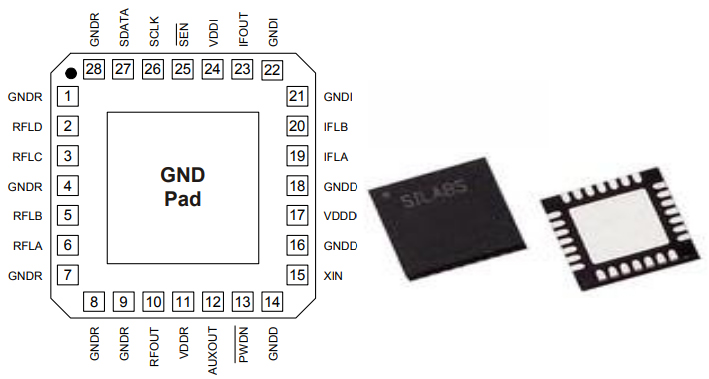

Pinout

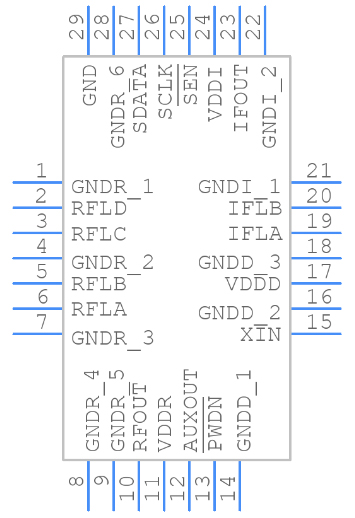

PCB Symbol

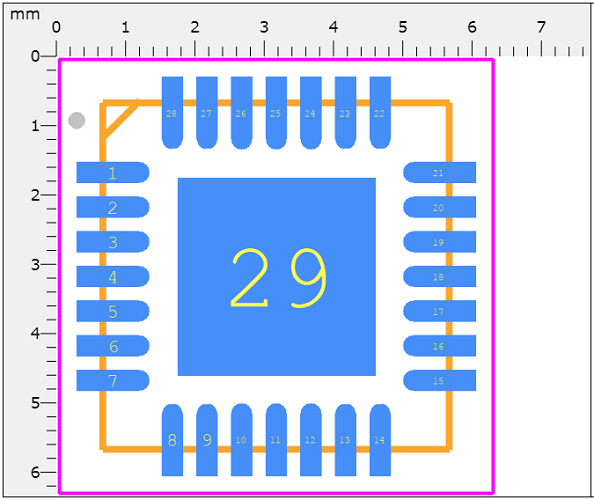

PCB Footprint

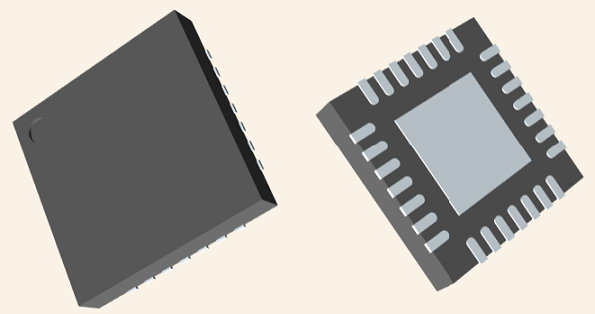

3D Model

The SI4133 is a monolithic integrated circuit that performs IF and dual-band RF synthesis for wireless communications applications. This integrated circuit (IC), with minimal external components, completes the frequency synthesis function necessary for RF communications systems. The SI4133 has three complete phase-locked loops (PLLs) with integrated voltage-controlled oscillators (VCOs). The low phase noise of the VCOs makes the SI4133 suitable for demanding wireless communications applications. The SI4133 is programmed serially with 22-bit words comprised of 18-bit data fields and 4-bit address fields. The SI4133 may operate at an extended frequency range of 1850 MHz to 2050 MHz by connecting the RFLA and RFLB pins directly.

This article provides you with a basic overview of the SI4133 Integrated Circuit, including its pin descriptions, features and specifications, etc., to help you quickly understand what SI4133 is.

Silicon Labs SI4133-D-GM technical specifications, attributes, parameters and parts with similar specifications to Silicon Labs SI4133-D-GM.

Functional Block Diagram

● Dual-band communications

● Digital cellular telephones GSM 850, E-GSM 900, DCS 1800, PCS 1900

● Digital cordless phones

● Analog cordless phones

● Wireless local loop

Package Outline
