SI7201-B-05-IV MAGNETIC SWITCH OMNIPOL SOT23-3[FAQ]: Datasheet, Pinout, and Applications

MAG SWITCH OMNIPOLAR SOT23-3 SI7201-B-05-IV is a magnetic sensor. This article is going to introduce pinout, applications, features, and more details about SI7201-B-05-IV.

188

Feb 7, 2022

Molly Nell

Si72xx Hall Effect Sensor Demos - from Silicon Labs

MAG SWITCH OMNIPOLAR SOT23-3

SI7201-B-05-IV is a magnetic sensor. This article is going to introduce pinout, applications, features, and more details about SI7201-B-05-IV.

SI7201-B-05-IV

224In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$0.87854	$0.88
10+	$0.82881	$8.29
100+	$0.7819	$78.19
500+	$0.73764	$368.82
1000+	$0.69589	$695.89

Unit Price:$0.87854

Subtotal: $0.88

Quick Links

Overview of SI7201-B-05-IV

SI7201-B-05-IV samples the magnetic field on a regular basis and has a digital output pin that goes high or low depending on the magnetic field.
SI7201-B-05-IV samples the magnetic field at regular intervals and outputs the data on a pin using analog, pulse width modulation (PWM), or Single Edge Nibble Transmission (SENT) protocols.
SI7201-B-05-IV provides for digital magnetic field reading in I2C format. The part can also be configured via I2C commands.
The Si72xx devices come in three or five-pin SOT23 packages, as well as a 1.4 mm1.6 mm0.35 mm dual-flat no-leads, 8-pin package (DFN-8), and a TO-92 package.

SI7201-B-05-IV Features

High-Sensitivity Hall Effect Sensor
Maximum BOP operating point/minimum field strength of <1.1 mT
Omnipolar or unipolar operation
Integrated digital signal processing for temperature and offset drift compensation
Low 400 nA Typical Current Consumption 5 samples per second
Selectable Sensitivity, Hysteresis, OutputPolarity and Sample Rate
Sensitivity Drift < ±3% over Temperature
Wide Power Supply Voltage
1.71 to 5.5 V
3.3 to 26.5 V
Selectable Output Options
Open-drain output
Digital high/low output
Industry-Standard Packaging
Surface mount SOT-23 (3 or 5 pins)
Through-hole TO-92 (3-pin)
1.4 x 1.6 mm 8-pin DFN package (coming soon)

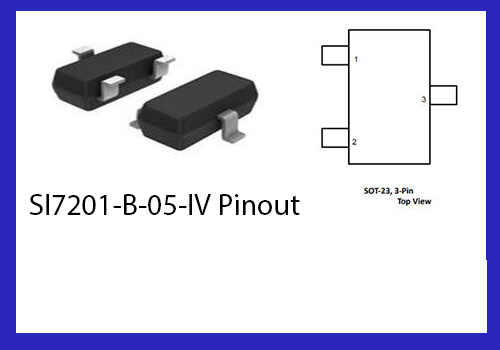

SI7201-B-05-IV Pinout

SI7201-B-05-IV Block Diagram

SI7201-B-05-IV Block Diagram

Specifications

SI7201-B-05-IV Tech Specifications

Silicon Labs SI7201-B-05-IV technical specifications, attributes, parameters and parts with similar specifications to Silicon Labs SI7201-B-05-IV.

Product Attribute	Attribute Value
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Test Conditions	-40°C ~ 125°C
Operating Temperature	-40°C~125°C TA
Packaging	Strip

Product Attribute	Attribute Value
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Voltage - Supply	1.7V~5.5V
Function	Omnipolar Switch
Current - Supply (Max)	0.4μA Typ
Output Type	Push-Pull

Product Attribute	Attribute Value
Polarization	North Pole, South Pole
Sensing Range	±2.0mT Trip, ±0.6mT Release
Features	Tamper Detection
RoHS Status	RoHS Compliant

View Similar

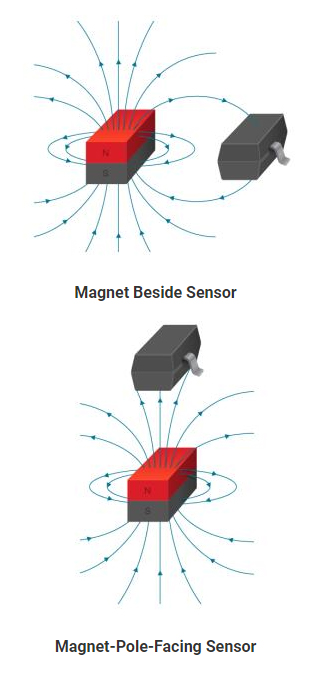

SI7201-B-05-IV Magnet Configurations

SOT23 and TO-92 Magnet Configuration

SI7201-B-05-IV Absolute Maximum Ratings

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Ambient Temperature Under Bias			-55		125	°C
Storage Temperature			-65		150	°C
Si7201/2/3/4
The voltage on I/O Pins			-0.3		VDD+0.3	V
The voltage on VDD with Respect to Ground			-0.3		6	V
ESD Tolerance		HBM			2	kV
ESD Tolerance		CDM			500	V
Si7205/6
The voltage on Output pin2			-21		40	V
The voltage on VDD with Respect to Ground3			-21		40	V
ESD Tolerance		HBM			8	kV
ESD Tolerance		CDM			500	V
Notes: 1. Absolute maximum ratings are stress ratings only, operation at or beyond these conditions is not implied and may shorten the life of the device or alter its performance. 2. The output pin can withstand EMC transients per ISO 7637-2-2-11 and Ford EMC-CS-2009.1 with a current limiting resistor of 220 Ω to a local bypass cap of 0.1 μF and an additional 22 Ω between the capacitor and ground. 3. VDD can withstand automotive EMC transients per ISO 7637-2-2-11 and Ford EMC-CS-2009.1 with a current limiting resistor of 220 Ω.

SI7201-B-05-IV Applications

• Replacement of reed switches in consumer, and security applications

• Position sensing of HVAC knob, door locks, windows, and other mechanical devices

• BLDC motor control

• Camera image stabilization, zoom, and autofocus

• Fluid level sensing

• Control knobs and selector switches

• General-purpose mechanical position sensing

SI7201-B-05-IV package information

SI7201-B-05-IV package information

Dimension	Min	Max
A	--	1.25
A1	0	0.1
A2	0.85	1.15
b	0.3	0.5
c	0.1	0.2
D	2.90 BSC
E	2.75 BSC
E1	1.60 BSC
e	0.95 BSC
e1	1.90 BSC
L	0.3	0.6
θ	0°	8°
aaa	0.15
BBB	0.2
ccc	0.1
DDD	0.2
Note: 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. Dimensioning and Tolerancing per ANSI Y14.5M-1994. 3. This drawing conforms to the JEDEC Solid State Outline MO-193, Variation AB. 4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020D specification for Small Body Components.
