SL100 NPN transistor: Datasheet, Equivalent and Application

The SL100 transistor is a medium-power NPN transistor that can be used for a variety of applications. The SL100 transistor is a general-purpose transistor that can be used in a wide range of electronic applications. To operate in the desired region of its characteristic curves, the transistor terminals require a constant DC voltage.

A collector, a base, and an emitter are the three terminals of an SL100 transistor. The emitter is indicated by a projecting edge in the transistor casing. The emitter is closest to the base, while the collector is at the opposite end of the casing.

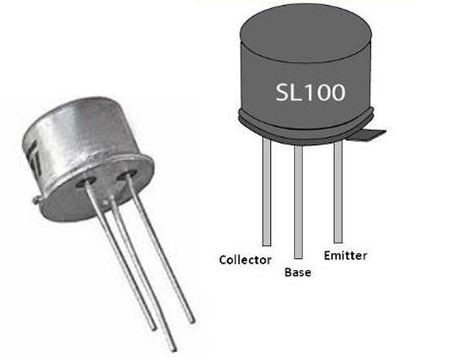

SL100 Pinout

• Operating and Storage Temperature: -65℃ to 200℃

• It is an NPN transistor with medium power

• Collector-Emitter (CE) voltage is 50V

• Output Capacitance is 20pf

• Collector Base (CB) voltage is 60V

• DC Current gain is 100 to 300 hfe

• Emitter Base (EB) voltage is 5.0V

• Dissipation of Collector Power (Max) is 0.8 W

• Transistor Material is Si

• Package is TO-39

• NPN Polarity

• The saturation voltage from Base to Emitter is 1.3V

• Collector Current is 0.5A

• The saturation voltage from Collector to Emitter is 0.6V

• Designator Type is SL100

• Ruggedness is high

• Easy drive requirements

• The operating area is high safe

• For less distortion balancing designs

• Easy to handle & carry

TE Connectivity ALCOSWITCH Switches SL1000 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity ALCOSWITCH Switches SL1000.

• Sound reproduction and amplification

• Switching

• Logic Gates Manufacture

• Reproduction of Sound

• Processing of Signal

• Radio Transmission

2N3904, MZT3055, P2N2369, P2N2369A, P2N2907A, PN100, PN200, 2CF2325, BC548B, 2N23867, 2N3055HV, 2N6371H, A1941, BD237S, BD675BPL, BF422BPL, BU908F, BC301

The SL100 transistor is inexpensive and widely available in the market, allowing it to be used in a wide range of circuits. A single SL100 transistor is enough to build a simple continuity tester circuit that emits visual and auditory signals when continuity is present at the probes. Automated water level indicator and rain detection alarm circuits are two such circuits that use SL100 transistors. Some uses include automatic street light circuits, automatic emergency lights, beeper circuits, gas sensor alarm circuits, automatic voltage stabilizers, and solar chargers.

SL100 Transistor Circuit

Depending on the supply voltage, you can replace the LED with any DC load. The supply voltage of 9 volts is used to turn on an LED in this circuit. When we close the switch and apply the base voltage, the transistor begins to conduct from Collector to Emitter, and the LED turns on. R1 is utilized to minimize the overvoltage at the base, and R2 is used to safeguard the LED.

BC is for Buried Channel, and 107 is the product version that defines how many different types of materials were employed to make this transistor. In the CE setup, a medium power NPN transistor such as the SL100 is utilized as a switch. The terminal of this type of transistor requires a constant DC voltage to operate within the preferred range of its properties, which is referred to as bias.

TE Connectivity is a company that provides internet connectivity. Tyco Electronics was renamed ALCOSWITCH. ALCOSWITCH has a large selection of high-quality electronic components. OEM applications, utility/energy, outside plant, and premise networking installations, and more are among the services they provide. Connectors/interconnection systems, terminal blocks, relays, electronic modules, circuit protection devices, fiber optic components, wire and cable, switches, wireless components, sensors, printed circuit boards, touchscreens, and application tooling are examples of well-known brand names' products. Electrical harnesses are also insulated, protected, held, bundled, and identified with their goods.

Download datasheets and manufacturer documentation for TE Connectivity ALCOSWITCH Switches SL1000.
