ESD Suppressor TVS 12V Automotive 3-Pin SOT-23 T/R
The SM712-02HTG TVS Diode Array is designed to safeguard RS-485 applications with asymmetrical working voltages. This article mainly introduces system, pinout, datasheet and other detailed information about Littelfuse Inc. SM712-02HTG.
SM712-02HTG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.59982 | $0.6 |
| 10+ | $0.56587 | $5.66 |
| 100+ | $0.53384 | $53.38 |
| 500+ | $0.50362 | $251.81 |
| 1000+ | $0.47511 | $475.11 |
The SM712-02HTG TVS Diode Array is designed to safeguard RS-485 applications with asymmetrical working voltages (-7V to 12V) from electrostatic discharge (ESD), electrical fast transients (EFT), and surges caused by lightning.
The SM712 can safely dissipate up to 19A of 8/20us induced surge current ( IEC- 61000-4-5 2nd edition) with very low clamping voltages and can absorb repetitive ESD strikes over the maximum level stipulated in the IEC 61000-4-2 international standard without performance deterioration.
The following figure is SM712-02HTG Pinout.
Pinout
The followings are SM712-02HTG Symbol, Footprint and 3D Model.
Symbol
Footprint
3D Model
• RoHS compliant and lead-free
• ESD, IEC 61000-4-2 , ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 50A (5/50ns)
• Lightning, IEC 61000-4-5 2nd edition, 19A (tP=8/20μs)
• Working Voltages: -7V to 12V
• Low clamping voltage
• Low leakage current
• AEC-Q101 Qualified
• Moisture Sensitivity Level (MSL-1)
Littelfuse Inc. SM712-02HTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SM712-02HTG.
Littelfuse Inc. SM712-02HTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SM712-02HTG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 13 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Diode Element Material | SILICON | |
| Breakdown Voltage / V | 13.3V | |
| Number of Elements | 2 Elements | |
| Reverse Stand-off Voltage | 12V | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Cut Tape (CT) | |
| Series | Automotive, AEC-Q101, SM712, SPA® | |
| Published | 2014 | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | Zener | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Applications | Automotive | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| HTS Code | 8541.10.00.50 | |
| Capacitance | 75pF | |
| Max Power Dissipation | 600W | |
| Terminal Form | GULL WING | |
| Depth | 1.4mm | |
| Operating Supply Voltage | 12V | |
| Working Voltage | 12V | |
| Polarity | UNIDIRECTIONAL | |
| Number of Channels | 2Channels | |
| Leakage Current | 20μA | |
| Element Configuration | Dual |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Line Protection | No | |
| Voltage - Breakdown (Min) | 13.3V 7.5V | |
| Current - Peak Pulse (10/1000μs) | 19A 8/20μs | |
| Voltage - Clamping (Max) @ Ipp | 31V 19V | |
| Clamping Voltage | 31V | |
| Voltage - Reverse Standoff (Typ) | 12V Max 7V Max | |
| Peak Pulse Current | 19A | |
| Max Surge Current | 19A | |
| Peak Pulse Power | 600W | |
| Direction | Bidirectional | |
| Capacitance @ Frequency | 75pF @ 1MHz | |
| Height | 1.12mm | |
| Length | 3.04mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following shows the SM712-02HTG Functional Block Diagram.
Functional Block Diagram
The following figure is SM712-02HTG Part Marking System.
Part Marking System

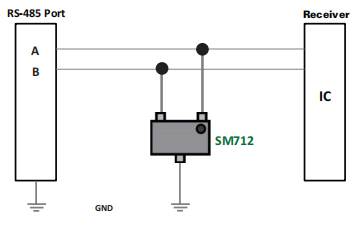

The following shows SM712-02HTG Application Circuit.
Application Circuit
• RS-485
• Fieldbus
• Modbus
• Profibus
• DMX512
• Security Systems
• AutomatedT eller Machines (ATMs)
• Lighting Control - DALI
• Communication Equipments
The following figure is SM712-02HTG Package.
Package
