The SMAJ58A is a Transient Voltage Suppression Diodes
SMAJ58A TVS Diodes: Features, Pinout, and Datasheet
TVS - Diodes TVS DIODE 58V 93.6V DO214AC The SMAJ58A is a Transient Voltage Suppression Diodes
85
Dec 9, 2021
Gale Dorothy
SMAJ58A
50In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.21949 | $0.22 |
| 10+ | $0.20707 | $2.07 |
| 100+ | $0.19534 | $19.53 |
| 500+ | $0.18429 | $92.15 |
| 1000+ | $0.17386 | $173.86 |
Unit Price:$0.21949
Subtotal: $0.22
Quick Links
SMAJ58A Description
The SMAJ58A is created to protect sensitive electronic equipment against voltage transients such as those caused by lightning and other transient voltage events.

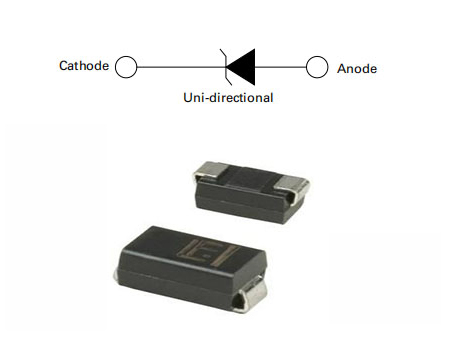

SMAJ58A Pinout
The following figure is SMAJ58A Pinout.
Pinout
SMAJ58A CAD Model
The following figures are SMAJ58A Symbol, Footprint and 3D Model.
Symbol
Footprint
3D Model
SMAJ58A Features
• 400W Peak pulse power capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%
• Excellent clamping capability
• Typical IR less than 1μA when VBR min>12V
• For surface mounted applications to optimize board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Built-in strain relief
• Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Glass passivated junction
• Low inductance
• High temperature to reflow soldering guaranteed: 260°C/40sec
• VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25))(αT:Temperature Coefficient, typical value is 0.1%)
• Plastic package is flammability rated V-0 per Underwriters Laboratories
• Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
• Matte tin lead–free Plated
• Halogen-free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
Specifications
Littelfuse Inc. SMAJ58A technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SMAJ58A.
SMAJ58A Tech Specifications
SMAJ58A Tech Specifications
Littelfuse Inc. SMAJ58A technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SMAJ58A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 17 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AC, SMA | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-214AC (SMA) | |
| Breakdown Voltage / V | 64.4V | |
| Number of Elements | 1 Element | |
| Reverse Stand-off Voltage | 58V | |
| Operating Temperature | -65°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | SMAJ | |
| Published | 2009 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| Type | Zener | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Composition | Zener | |
| Applications | General Purpose | |
| Power Rating | 400W | |
| Voltage - Rated DC | 58V | |
| Max Power Dissipation | 3.3W | |
| Operating Supply Voltage | 58V | |
| Polarity | Unidirectional | |
| Number of Channels | 1Channel | |
| Voltage | 58V | |
| Leakage Current | 1μA | |
| Element Configuration | Single | |
| Current | 43A | |
| Power Dissipation | 400W | |
| Power Line Protection | No | |
| Voltage - Breakdown (Min) | 64.4V | |
| Power - Peak Pulse | 400W | |
| Current - Peak Pulse (10/1000μs) | 4.3A | |
| Max Reverse Leakage Current | 1μA | |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Clamping Voltage | 93.6V | |
| Voltage - Reverse Standoff (Typ) | 58V | |
| Peak Pulse Current | 4.3A | |
| Max Surge Current | 4.3A | |
| Peak Pulse Power | 400W | |
| Direction | Unidirectional | |
| Test Current | 1mA | |
| Unidirectional Channels | 1 | |
| Reverse Breakdown Voltage | 64.4V | |
| Max Breakdown Voltage | 71.2V | |
| Number of Unidirectional Channels | 1Unidirectional Channel | |
| Height | 2.087mm | |
| Length | 4.5mm | |
| Width | 2.79mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
SMAJ58A Part Numbering System
The following figure shows the SMAJ58A Part Numbering System.
Part Numbering System
SMAJ58A Alternatives
| Part Number | Description | Manufacturer |
| P4SMAJ58ADIODES | Transient Suppressor | Secos Corporation |
| SMAJ58AHE3/61DIODES | DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN, Transient Suppressor | Vishay Semiconductors |
| P4SMAJ58ATRDIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 | World Products Inc |
| SMAJ58A/5ADIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | Vishay Semiconductors |
| SMAJ58A-T3DIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | Sensitron Semiconductors |
| SMAJ58A-E3/5ADIODES | DIODE 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN, Transient Suppressor | Vishay Semiconductors |
| SMAJ58A-GT3DIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN | Sangdest Microelectronics (Nanjing) Co Ltd |
| SMAJ58/51DIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN | Vishay Semiconductors |
| P4SMAJ58-FDIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2 | World Products Inc |
| SMAJ58A-WDIODES | Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2 | Rectron Semiconductor |
SMAJ58A Applications
• The Protection of I/O Interfaces
• VCC Bus and Other Vulnerable Circuits Used in Telecom
• Computer, Industrial, Consumer Electronic
• Applications
SMAJ58A Package
he following figure shows SMAJ58A Package.
Package
SMAJ58A Manufacturer
Littelfuse, Inc. is an electronic manufacturing company situated in Chicago, Illinois. The company's main focus is circuit protection, but it also makes electronic switches and vehicle sensors. Littelfuse first opened its doors in 1927. In addition to its world headquarters in Chicago, Illinois, Littelfuse has more than 40 sales, distribution, production, and engineering offices throughout the Americas, Europe, and Asia.
Datasheet PDF
SMAJ58A Documents
SMAJ58A Documents
Download datasheets and manufacturer documentation for SMAJ58A
Frequently Asked Questions
What is the role of SMAJ58A?
The function of SMAJ58A is to protect the precision components in the electric board. Under the condition of reverse application, when it is subjected to a high-energy large pulse, its working impedance will immediately drop to a very low conduction value, thereby allowing a large current to pass through while reducing the voltage Clamped at a predetermined level, its response time is only 10-12 milliseconds, so it can effectively protect the precision components in electronic circuits.
What is the principle of TVS diode?
The principle of TVS diodes: TVS diodes are connected in parallel with the circuit to be protected. When its voltage exceeds the burst breakdown level, the excessive current is directly shunted. TVS diodes are clamps that suppress excessive voltages that exceed their breakdown voltage. When the overvoltage disappears, the TVS diode automatically resets and absorbs much more energy than a similarly rated crowbar circuit.
Transient voltage suppression diode, also known as TVS diode, is a protective electronic component that protects electrical equipment from voltage spikes introduced by wires.
TVS diodes react faster to overvoltage than other overvoltage protection components such as varistors or gas discharge tubes. However, because the wires in the actual circuit have inductance, the protection components need to tolerate large voltages for a long time. Therefore TVS diodes are more suitable than other components to protect circuits from very fast and damaging voltage surges.
FAQ
What is the role of SMAJ58A?
The function of SMAJ58A is to protect the precision components in the electric board. Under the condition of reverse application, when it is subjected to a high-energy large pulse, its working impedance will immediately drop to a very low conduction value, thereby allowing a large current to pass through while reducing the voltage Clamped at a predetermined level, its response time is only 10-12 milliseconds, so it can effectively protect the precision components in electronic circuits.
What is the principle of TVS diode?
The principle of TVS diodes: TVS diodes are connected in parallel with the circuit to be protected. When its voltage exceeds the burst breakdown level, the excessive current is directly shunted. TVS diodes are clamps that suppress excessive voltages that exceed their breakdown voltage. When the overvoltage disappears, the TVS diode automatically resets and absorbs much more energy than a similarly rated crowbar circuit.
Transient voltage suppression diode, also known as TVS diode, is a protective electronic component that protects electrical equipment from voltage spikes introduced by wires.
TVS diodes react faster to overvoltage than other overvoltage protection components such as varistors or gas discharge tubes. However, because the wires in the actual circuit have inductance, the protection components need to tolerate large voltages for a long time. Therefore TVS diodes are more suitable than other components to protect circuits from very fast and damaging voltage surges.
