SMBJ16CA TVS Diode: Datasheet, Application, Functional Diagram

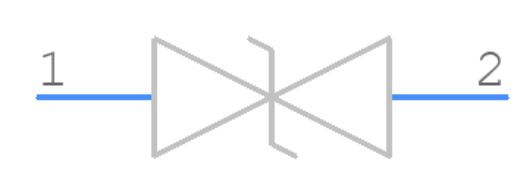

SMBJ16CA Symbol

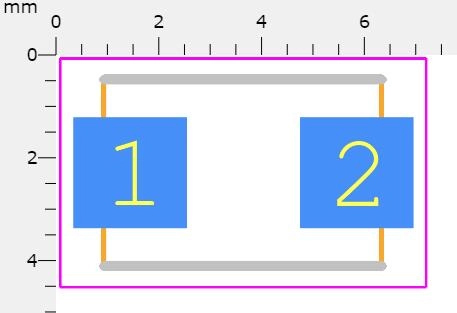

SMBJ16CA Footprint

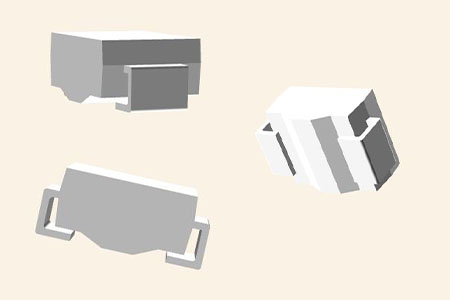

SMBJ16CA 3D Model

SMBJ16CA is a Transient Voltage Suppressor Diode from the SMBJ series that is used for surge and ESD protection. The device has a working peak reverse voltage range of 5V to 495V, as well as a breakdown voltage range of 550V. From 0V to minimal breakdown voltage, typical quick response times for unidirectional devices are less than 1-picosecond and less than 5-picosecond for bidirectional devices. It complies with JEDEC requirements, is simple to handle with ordinary pick and place equipment, and its flat design reduces roll away.

• Peak pulse power 600W @ 10/1000μs waveform

• Excellent clamping capability

• Low incremental surge resistance

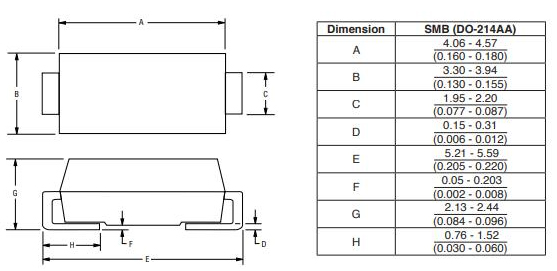

• Surface mount package for easy assembly and board space saving

• Typical I R <1μA When V R > 12V

• Fast response time: Typically less than 1.0ps from 0V to BV min

• IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact)

• EFT protection of data lines in accordance with IEC 61000-4-4

• High temperature to reflow soldering guaranteed: 260°C/10sec

• Meet UL94V-0 flammability classification which guaranteed by mold compound

• Meet MSL level1, per J-STD-020

• Lead-free lead finish

• Halogen-free and RoHS compliant

• Power supply protection

• Industrial application

• Power management

• I/O interface protection

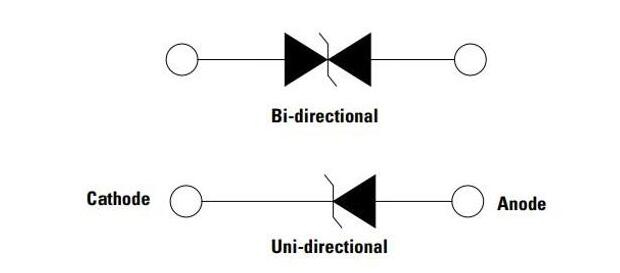

SMBJ16CA Functional Diagram
