IC TXRX RS485 FAULT-PROT 8-SOIC
The SN65HVD1781DR devices are half-duplex RS-485 transceivers with three speed classes that can transmit data at 115 kbps, 1 Mbps, and 10 Mbps. Check out more details of the component.

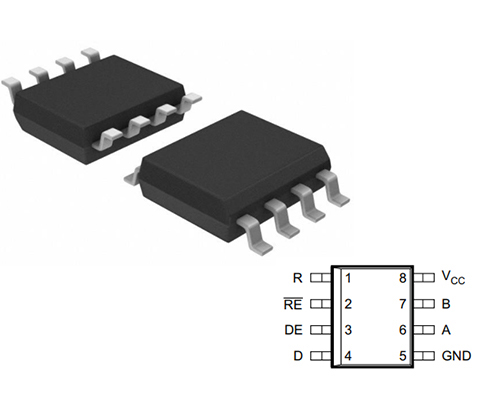

SN65HVD1781DR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.13174 | $4.13 |
| 10+ | $3.89787 | $38.98 |
| 100+ | $3.67723 | $367.72 |
| 500+ | $3.46909 | $1734.55 |
| 1000+ | $3.27272 | $3272.72 |
The SN65HVD1781DR devices are half-duplex RS-485 transceivers with three speed classes that can transmit data at 115 kbps, 1 Mbps, and 10 Mbps. These devices have a broad common-mode operating range as well as bus-pin fault prevention up to 70 V. Each device has an active-HIGH driver and an active-LOW receiver. Disabling both the driver and the receiver results in a standby current of less than 1 A.

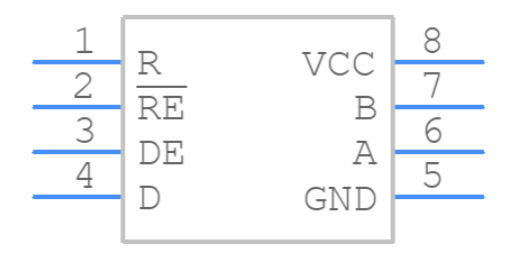

Symbol

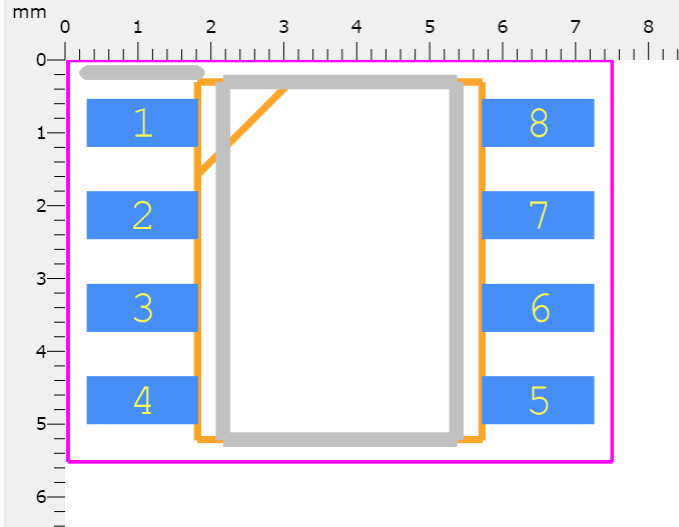

Footprint

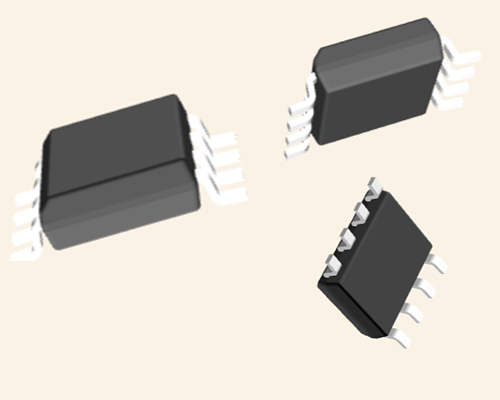

3D Model
• Bus-Pin Fault Protection to:
– > ±70 V (SN65HVD1780, SN65HVD1781)
– > ±30 V (SN65HVD1782)
• Operation With 3.3-V to 5-V Supply Range
• ±16-kV HBM Protection on Bus Pins
• Reduced Unit Load for Up to 320 Nodes
• Failsafe Receiver for Open-Circuit, Short-Circuit, and Idle-Bus Conditions
• Low Power Consumption
– Low Standby Supply Current, 1 µA Maximum
– ICC 4-mA Quiescent Current During Operation
• Pin-Compatible With Industry-Standard SN75176
• Signaling Rates of 115 kbps, 1 Mbps, and up to 10 Mbps
• Create a Custom Design using the SN65HVD178x with the WEBENCH® Power Designer
| MIN | NOM | MAX | UNIT | |||
| VCC | Supply voltage | 3.15 | 5 | 5.5 | V | |
| Vi | Input voltage at any bus terminal (separately or common mode)(1) | -7 | 12 | V | ||
| Vih | High-level input voltage (driver, driver enable, and receiver enable inputs) | 2 | VCC | V | ||
| V|L | Low-level input voltage (driver, driver enable, and receiver enable inputs) | 0 | 0.8 | V | ||
| VID | Differential input voltage | -12 | 12 | V | ||
| Output current, driver | -60 | 60 | mA | |||
| IO | Output current, receiver | -8 | 8 | mA | ||
| Rl | Differential load resistance | 54 | 60 | Q | ||
| CL | Differential load capacitance | 50 | pF | |||
| SN65HVD1780 | 115 | kbps | ||||
| 1/tui | Signaling rate | SN65HVD1781 | 1 | Mbps | ||
| SN65HVD1782 | 10 | |||||
| Ta | Operating free-air temperature (See Power | 5-V supply | -40 | 105 | °C | |
| Dissipation Characteristics) | 3.3-V supply | -40 | 125 | |||
| Tj | Junction temperature | -40 | 150 | °C | ||
| Part Number | Description | Manufacturer |
| SN65HVD1786DRDRIVERS AND INTERFACES | 70-V Fault-Protected RS-485 with -20 to +25 common mode 8-SOIC -40 to 105 | Texas Instruments |
| ISL32435EIBZDRIVERS AND INTERFACES | ±40V Fault Protected, 3.3V to 5V, ±15V CMR, 1Mbps Half-Duplex RS-485/RS-422, ±15kV ESD; MSOP8, SOIC8; Temp Range: -40° to 85°C | Intersil Corporation |
| ISL32435EIUZDRIVERS AND INTERFACES | ±40V Fault Protected, 3.3V to 5V, ±15V CMR, 1Mbps Half-Duplex RS-485/RS-422, ±15kV ESD | Renesas Electronics Corporation |
| SN65HVD1786DDRIVERS AND INTERFACES | 70-V Fault-Protected RS-485 with -20 to +25 common mode 8-SOIC -40 to 105 | Texas Instruments |
| ILX3485DTDRIVERS AND INTERFACES | Line Transceiver, | IKSemicon Co Ltd |
| ISL32435EIBZ-T7DRIVERS AND INTERFACES | LINE TRANSCEIVER | Intersil Corporation |
| ISL32435EIUZ-TDRIVERS AND INTERFACES | ±40V Fault Protected, 3.3V to 5V, ±15V CMR, 1Mbps Half-Duplex RS-485/RS-422, ±15kV ESD; MSOP8, SOIC8; Temp Range: -40° to 85°C | Intersil Corporation |
| ILX3485DDRIVERS AND INTERFACES | Line Transceiver, | IKSemicon Co Ltd |
| ISL32435EIBZ-T7ADRIVERS AND INTERFACES | ±40V Fault Protected, 3.3V to 5V, ±15V CMR, 1Mbps Half-Duplex RS-485/RS-422, ±15kV ESD; MSOP8, SOIC8; Temp Range: -40° to 85°C | Intersil Corporation |
| SN65HVD1781DDRIVERS AND INTERFACES | 70-V Fault-Protected RS-485 Transceivers 8-SOIC -40 to 125 | Texas Instruments |
Texas Instruments SN65HVD1781DR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN65HVD1781DR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |

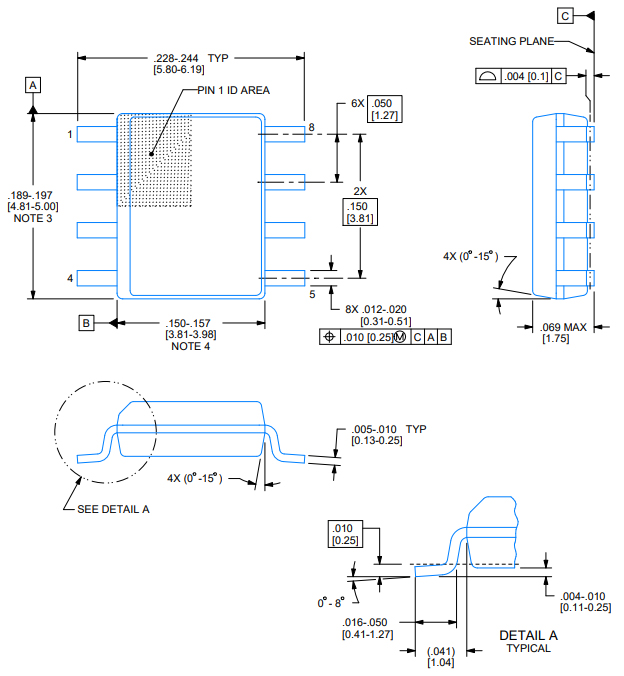

| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Weight | 75.891673mg | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Max Power Dissipation | 905mW | |
| Voltage - Supply | 3.15V~5.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | 65HVD1781 | |
| Pin Count | 8 | |
| Qualification Status | Not Qualified | |
| Output Voltage | 2.75V | |
| Operating Supply Voltage | 5V | |
| Interface | RS-422, RS-485 | |
| Operating Supply Current | 6mA | |
| Nominal Supply Current | 6mA | |
| Propagation Delay | 200 ns | |
| Data Rate | 1Mbps | |
| Output Characteristics | DIFFERENTIAL | |
| Differential Output | YES | |
| Output Polarity | DIFFERENTIAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protocol | RS422, RS485 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Number of Drivers/Receivers | 1/1Drivers/Receiver | |
| Driver Number of Bits | 1Bit | |
| Receiver Number of Bits | 1Bit | |
| Duplex | Half | |
| Receiver Hysteresis | 50mV | |
| Number of Transceivers | 1Transceiver | |
| Simplex/Duplex | Half Duplex | |
| Supply Voltage1-Nom | 5V | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 125°C | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• HVAC Networks
• Security Electronics
• Building Automation
• Telecommunication Equipment
• Motion Control
• Industrial Networks

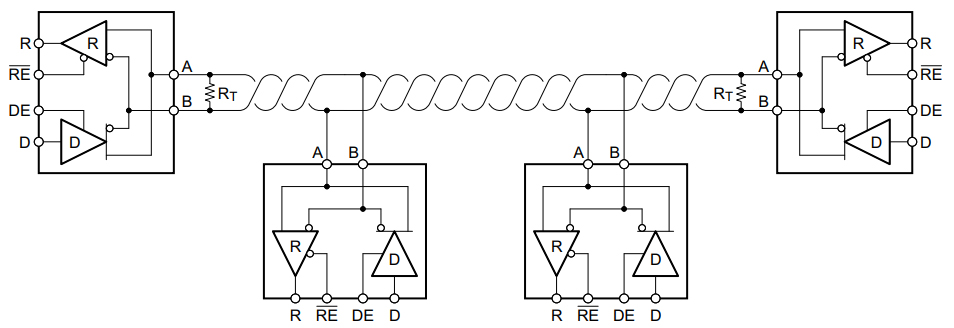

SN65HVD1781DR Typical Application Circuit
