IC GATE NAND 4CH 2-INP 14DIP The SN74HC00N provides four independent 2-input AND gates with standard push-pull outputs. This article is going to introduce pinout, applications, features, and more details about SN74HC00N.
340
Feb 11, 2022
Gavin Yonng
SN74HC00N integrated circuit IC quad NAND gate circuit test
IC GATE NAND 4CH 2-INP 14DIP
The SN74HC00N provides four independent 2-input AND gates with standard push-pull outputs. This article is going to introduce pinout, applications, features, and more details about SN74HC00N.
SN74HC00N
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.87791 | $0.88 |
| 10+ | $0.82821 | $8.28 |
| 100+ | $0.78133 | $78.13 |
| 500+ | $0.73711 | $368.56 |
| 1000+ | $0.69538 | $695.38 |
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range: –40°C to +85°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL logic ICS

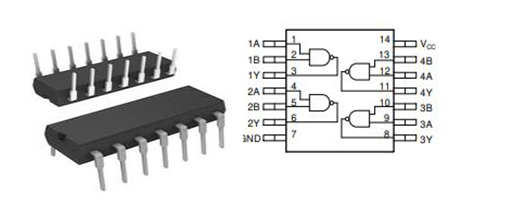

SN74HC00N Pinout
| PIN | I/O | DESCRIPTION | ||
| NAME | D, DB, N, NS, PW, J, or W |
FK | ||
| 1A | 1 | 2 | Input | Channel 1, Input A |
| 1B | 2 | 3 | Input | Channel 1, Input B |
| 1Y | 3 | 4 | Output | Channel 1, Output Y |
| 2A | 4 | 5 | Input | Channel 2, Input A |
| 2B | 5 | 6 | Input | Channel 2, Input B |
| 2Y | 6 | 8 | Output | Channel 2, Output Y |
| 3A | 9 | 9 | Input | Channel 3, Input A |
| 3B | 10 | 13 | Input | Channel 3, Input B |
| 3Y | 8 | 14 | Output | Channel 3, Output Y |
| 4A | 12 | 12 | Input | Channel 4, Input A |
| 4B | 13 | 18 | Input | Channel 4, Input B |
| 4Y | 11 | 19 | Output | Channel 4, Output Y |
| GND | 7 | 16 | _ | Ground |
| NC | 1, 5, 7, 11, 15, 17 |
_ | Not internally connected | |
| VCC | 14 | 20 | _ | Positive Supply |
SN74HC00N Symbol
SN74HC00N Footprint

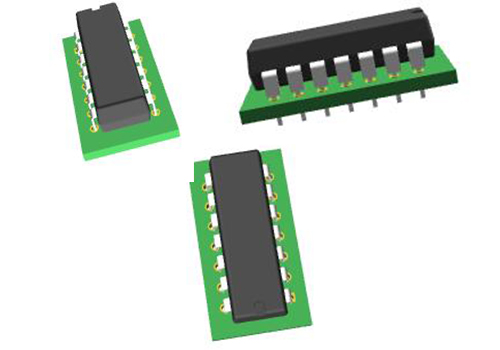

SN74HC00N 3D Model

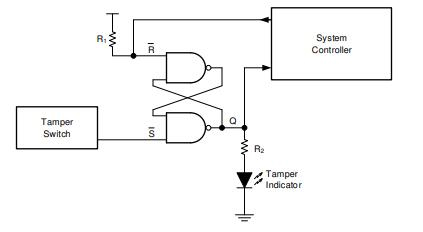

SN74HC00N Typical Application Diagram
NA SN74HC00N technical specifications, attributes, parameters and parts with similar specifications to NA SN74HC00N.
Texas Instruments SN74HC00N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74HC00N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Gold | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Number of Pins | 14Pins | |
| Weight | 927.99329mg | |
| Logic Level-High | 1.5V ~ 4.2V | |
| Logic Level-Low | 0.5V ~ 1.8V | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Series | 74HC | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Supply | 2V~6V | |
| Terminal Position | DUAL | |
| Number of Functions | 4Functions | |
| Supply Voltage | 5V | |
| Base Part Number | 74HC00 | |
| Pin Count | 14 | |
| Number of Outputs | 1Output | |
| Max Output Current | 4mA | |
| Operating Supply Voltage | 5V | |
| Supply Voltage-Max (Vsup) | 6V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Number of Channels | 4Channels | |
| Load Capacitance | 50pF | |
| Output Current | 5.2mA | |
| Propagation Delay | 15 ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 2μA | |
| Turn On Delay Time | 20 ns | |
| Family | HC/UH | |
| Logic Function | NAND | |
| Number of Inputs | 2Inputs | |
| Logic Type | NAND Gate | |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF | |
| Schmitt Trigger | NO | |
| Height | 5.08mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| MIN MAX | UNIT | |||
| VCC | Supply voltage | –0.5 7 | V | |
| IIK | Input clamp current | VI< –0.5 V or VI> VCC +0.5 V |
±20 | mA |
| IOK | Output clamp current | VO < –0.5 V or VO > VCC + 0.5 V | ±20 | mA |
| IO | Continuous output current | VO = 0 to VCC | ±25 | mA |
| Continuous current through VCC or GND |
±50 | mA | ||
| TJ | Junction temperature | 150 | °C | |
| Tstg | Storage temperature | –65 150 | °C | |

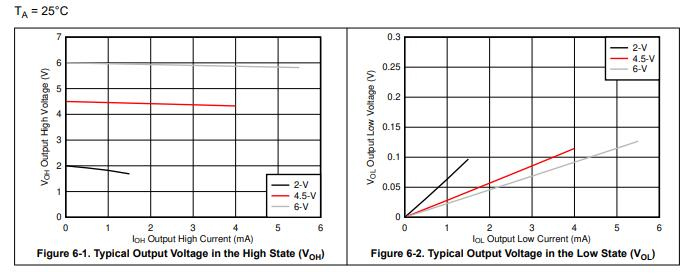

SN74HC00N Typical Characteristics
| Equivalent Part | Replacement Type | Status | Description |
| SN74HC00NP3 | Drop-In Replacement | DISCONTINUED | NAND Gate, CMOS, PDIP14 |
| SN74HC00JP4 | Drop-In Replacement | DISCONTINUED | NAND Gate, CMOS, CDIP14 |
| SN74HC00N-10 | Drop-In Replacement | DISCONTINUED | NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14 |
| SN74HC00NE4 | Drop-In Replacement | ACTIVE | NAND Gate, HC Series, 4-Func, 2-Input, CMOS, PDIP14 |
| SNJ54HC00J | Drop-In Replacement | ACTIVE | NAND Gate, HC Series, 4-Func, 2-Input, CMOS, CDIP14 |
• Alarm/tamper detect circuit
• S-R latch

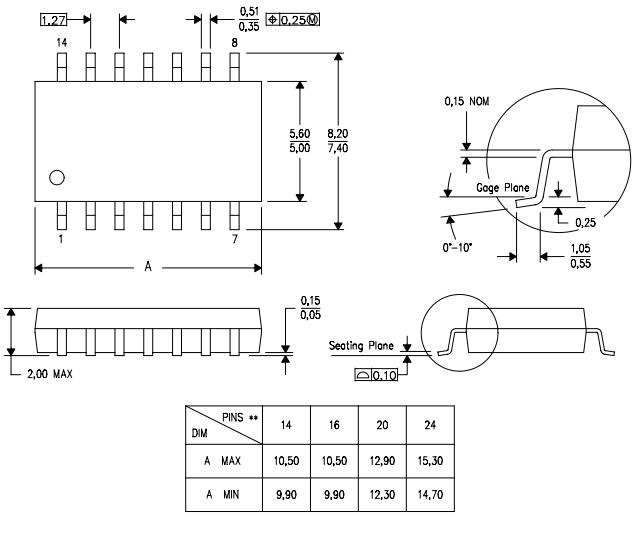

SN74HC00N Package information
Texas Instruments Incorporated is a semiconductor manufacturer that specializes in analog technologies, digital signal processing (DSP), and microcontrollers (MCUs). TI is a market leader in analog and digital embedded and applications processing semiconductors. TI is a multinational semiconductor firm with operations in more than 30 countries. It innovates through design, sales, and production.
Download datasheets and manufacturer documentation for NA SN74HC00N.
Download datasheets and manufacturer documentation for SN74HC00N
