SN74HC595N - 8-Bit S-I-P-O Tri-State Buffered Shift Register
SHIFT REGISTER, 8BIT, 74HC595, DIP16
Hi everyone,Today i wanna introduce you all a new component which contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage register.
SN74HC595N
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.45619 | $1.46 |
| 10+ | $1.37377 | $13.74 |
| 100+ | $1.29601 | $129.6 |
| 500+ | $1.22265 | $611.33 |
| 1000+ | $1.15344 | $1153.44 |

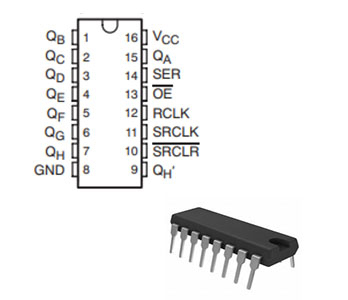

The 'HC595 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3-state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state.
PCB Symbol - Texas Instruments SN74HC595N
PCB Footprint - Texas Instruments SN74HC595N

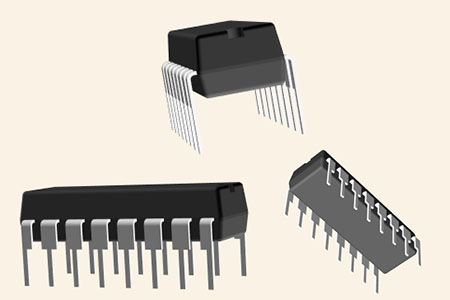

3D Model - Texas Instruments SN74HC595N
• 8-Bit Serial-In, Parallel-Out Shift
• Wide Operating Voltage Range of 2 V to 6 V
• High-Current 3-State Outputs Can Drive Up To 15 LSTTL Loads
• Low Power Consumption: 80-μA (Max) ICC
• tpd = 13 ns (Typ)
• ±6-mA Output Drive at 5 V
• Low Input Current: 1 μA (Max)
• Shift Register Has Direct Clear
Texas Instruments SN74HC595N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74HC595N.
Texas Instruments SN74HC595N technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74HC595N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Weight | 951.693491mg | |
| Manufacturer Package Identifier | N (R-PDIP-T) | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Series | 74HC | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT | |
| Voltage - Supply | 2V~6V | |
| Terminal Position | DUAL | |
| Supply Voltage | 5V | |
| Base Part Number | 74HC595 | |
| Function | Serial to Parallel, Serial | |
| Output Type | Tri-State | |
| Operating Supply Voltage | 5V | |
| Supply Voltage-Max (Vsup) | 6V | |
| Power Supplies | 2/6V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Number of Circuits | 4Circuits | |
| Load Capacitance | 50pF | |
| Propagation Delay | 250 ns | |
| Quiescent Current | 8μA | |
| Turn On Delay Time | 250 ns | |
| Family | HC/UH | |
| Logic Function | Shift Register | |
| Direction | Unidirectional |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Characteristics | 3-STATE | |
| Logic Type | Shift Register | |
| Output Polarity | TRUE | |
| Number of Bits per Element | 8Bits per Elements | |
| Trigger Type | POSITIVE EDGE | |
| Schmitt Trigger | No | |
| Number of Output Lines | 10Output Lines | |
| fmax-Min | 29 MHz | |
| Max Frequency@Nom-Sup | 25000000Hz | |
| Height | 5.08mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
|
