SN74LVC1G07DCKR Single Buffer/Driver: Features, Pinout, and Datasheet

This single buffer/driver is rated for a VCC range of 1.65 to 5.5 volts.

The SN74LVC1G07DCKR device's output is open drain, which means it can be coupled to other open-drain outputs to implement active-low wired-OR or active-high wiredAND functionalities. The maximum sink current is 32 milliamperes (mA).

The SN74LVC1G07DCKR comes in a variety of packages, including the ultra-small DPW packaging, which has a body size of 0.8 mm.

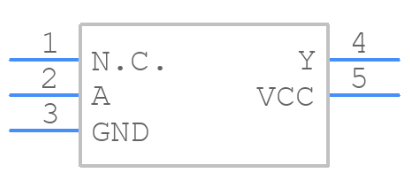

The following figure is SN74LVC1G07DCKR Pinout.

Pinout

The followings are SN74LVC1G07DCKR Symbol, Footprint and 3D Model.

Symbol

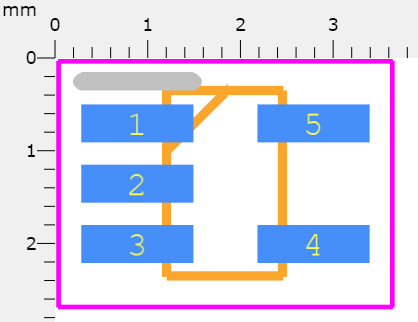

Footprint

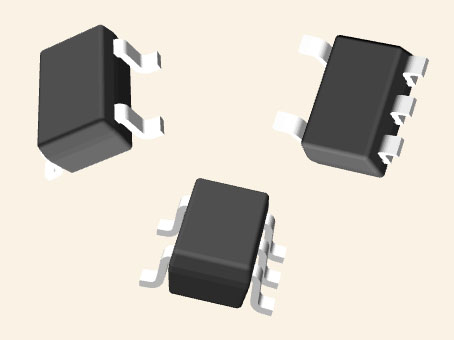

3D Model

• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch

• Supports 5-V VCC Operation

• Input and Open-Drain Output Accept Voltages up to 5.5 V

• Can Translate Up or Down

• Max tpd of 4.2 ns at 3.3 V

• Low Power Consumption, 10-µA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V  Charged-Device Model  (C101)

The SN74LVC1G07DCKR Functional Block Diagram is shown as follows.

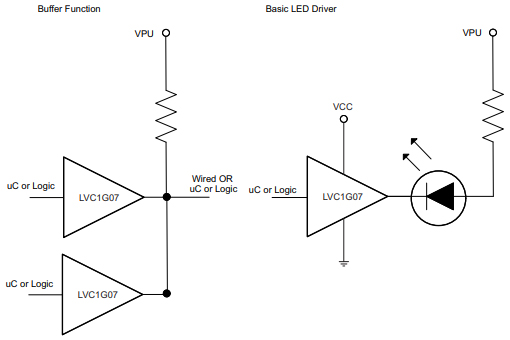

The SN74LVC1G07DCKR Typical Application is shown as follows.

Typical Application

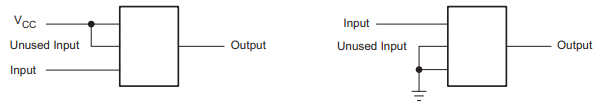

Inputs should never float when using multiple-bit logic devices. When only two inputs of a triple-input AND gate are used, or only three of the four buffer gates are used, functionalities or parts of functions of digital logic devices are frequently left unused. The undefined voltages at the outside connections result in undefined operating states, hence such input pins should not be left disconnected. The rules that must be followed in all instances are listed below. To prevent floating, all unused inputs of digital logic devices must be connected to a high or low bias. The logic level that should be applied to any given unused input is determined by the device's function. They'll usually be connected to GND or Vcc, depending on which is handier.
