IC BUF NON-INVERT 5.5V SC70-5 This single Schmitt-trigger buffer SN74LVC1G17QDCKRQ1 is meant to operate between 1.65 and 5.5 V VCC. This article mainly introduces Diagram, Pinout, Datasheet and other detailed information about Texas Instruments SN74LVC1G17QDCKRQ1.

422

Apr 1, 2022

Alan Eleanor

What Is Schmitt Trigger and How It Works



IC BUF NON-INVERT 5.5V SC70-5

This single Schmitt-trigger buffer SN74LVC1G17QDCKRQ1 is meant to operate between 1.65 and 5.5 V VCC. This article mainly introduces Diagram, Pinout, Datasheet and other detailed information about Texas Instruments SN74LVC1G17QDCKRQ1.



SN74LVC1G17QDCKRQ1

879In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

SN74LVC1G17QDCKRQ1 Description

This single Schmitt-trigger buffer is meant to operate between 1.65 and 5.5 V VCC.

The SN74LVC1G17QDCKRQ1 has one buffer and performs the Y = A Boolean function.

Over a wide VCC working range, the CMOS device has a high output drive while keeping low static power dissipation.

The SN74LVC1G17QDCKRQ1 comes in a number of different packages.

SN74LVC1G17QDCKRQ1 Pinout

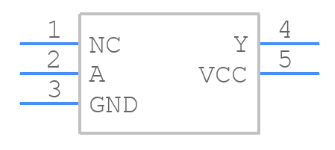

The following figure is SN74LVC1G17QDCKRQ1 Pinout.

Pinout





Pin Number Pin Name Description
1 NC Not connected
2 A Input
3 GND Ground
4 Y Output
5 VCC Power terminal

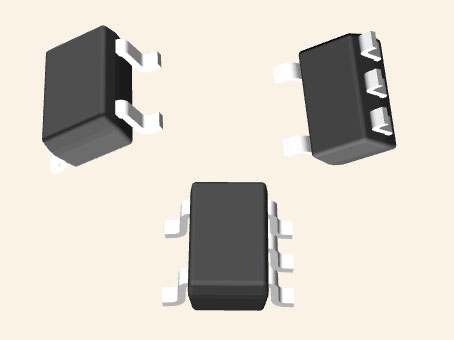

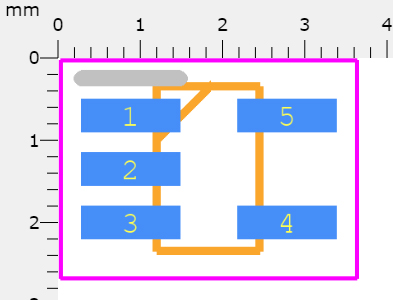

SN74LVC1G17QDCKRQ1 CAD Model

The following shows SN74LVC1G17QDCKRQ1 CAD Model.

Symbol

Footprint

3D Model

SN74LVC1G17QDCKRQ1 Features

• Qualified for Automotive Applications

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Max tpd of 8 ns at 3.3 V

• Low Power Consumption, 20-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial-power-down Mode, and Back-drive Protection

•  ESD  protection exceeds  JEDEC  JS-001

– 2000-V Human-body Model

– 1000-V Charged-device Model



Specifications

SN74LVC1G17QDCKRQ1 Tech Specifications

Texas Instruments SN74LVC1G17QDCKRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74LVC1G17QDCKRQ1.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 4 days ago)
Factory Lead Time6 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case5-TSSOP, SC-70-5, SOT-353
Number of Pins5Pins
Operating Temperature-40°C~125°C TA
PackagingTape & Reel (TR)
SeriesAutomotive, AEC-Q100, 74LVC
JESD-609 Codee4
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations5Terminations
ECCN CodeEAR99
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Packing MethodTR
Voltage - Supply1.65V~5.5V
Product Attribute Attribute Value
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage1.8V
Frequency100MHz
Base Part Number74LVC1G17
Pin Count5
Output TypePush-Pull
PolarityNon-Inverting
Power Supplies3.3V
Number of Channels1Channel
Nominal Supply Current500nA
Propagation Delay6 ns
Quiescent Current20μA
Input TypeSchmitt Trigger
Turn On Delay Time14 ns
FamilyLVC/LCX/Z
Product Attribute Attribute Value
Logic FunctionBuffer, Schmitt Trigger
Output Characteristics3-STATE
Logic TypeBuffer, Non-Inverting
Max I(ol)0.032 A
Schmitt TriggerYES
Power Supply Current-Max (ICC)0.02mA
Number of Output Lines1Output Line
Ambient Temperature Range High125°C
Height1.1mm
Length2mm
Width1.25mm
Thickness900μm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

SN74LVC1G17QDCKRQ1 Functional Block Diagram

The SN74LVC1G17QDCKRQ1 Functional Block Diagram is shown as follows.

Functional Block Diagram

SN74LVC1G17QDCKRQ1 Simplified Schematic

The following is SN74LVC1G17QDCKRQ1 Simplified Schematic.

Simplified Schematic

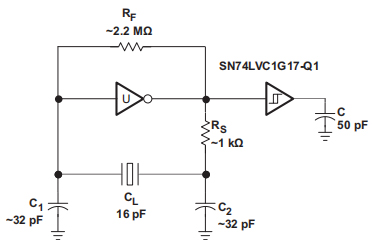

SN74LVC1G17QDCKRQ1 Typical Application

This gadget features balanced output drive and CMOS technology. Bus congestion should be avoided at all costs, as it can cause currents to exceed the maximum allowable. To avoid ringing, the high drive will cause quick edges into light loads, hence routing and load circumstances must be considered.

Typical Application



SN74LVC1G17QDCKRQ1 Layout

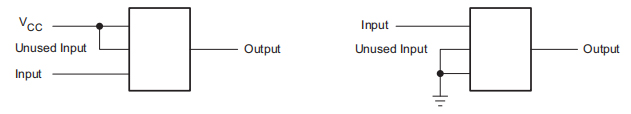

Inputs should never float when using multiple-bit logic devices. When just two inputs of a triple-input  AND gate are used, or only three of the four buffer gates are used, many functions or parts of the functions of digital logic devices are unused. The undefined voltages at the outside connections result in undefined operating states, hence such input terminals should not be left disconnected. The rules that must be followed in all instances are listed below. To prevent floating, all unused inputs of digital logic devices must be connected to a high or low bias. The logic level that should be applied to any given unused input is determined by the device's function. They'll usually be connected to GND or Vcc, depending on which makes more sense or is more convenient.

Layout

SN74LVC1G17QDCKRQ1 Alternatives

Part Number Description Manufacturer
SN74LVC1G17DCKTE4LOGIC Single 1.65-V to 5.5-V buffer with Schmitt-Trigger inputs 5-SC70 -40 to 125 Texas Instruments
74LVC1G17GWLOGIC IC LVC/LCX/Z SERIES, 1-INPUT NON-INVERT GATE, PDSO5, PLASTIC, MOC-203, SC-88A, SOT353-1, TSSOP-5, Gate NXP Semiconductors
74LVC1G17GW-Q100LOGIC Buffer, LVC/LCX/Z Series, 1-Func, 1-Input, CMOS, PDSO5 Nexperia

SN74LVC1G17QDCKRQ1 Applications

• AV receiver

• Audio dock: portable

• Blu-ray player and home theater

• MP3 player/recorder

• Personal digital assistant (PDA)

• Power: Telecom/server AC/DC supply: single controller: analog and digital

• Solid state drive (SSD): client and enterprise

• TV: LCD/Digital and high-definition (HDTV)

• Tablet: Enterprise

• Video analytics: server

• Wireless headset, keyboard, and mouse

SN74LVC1G17QDCKRQ1 Package

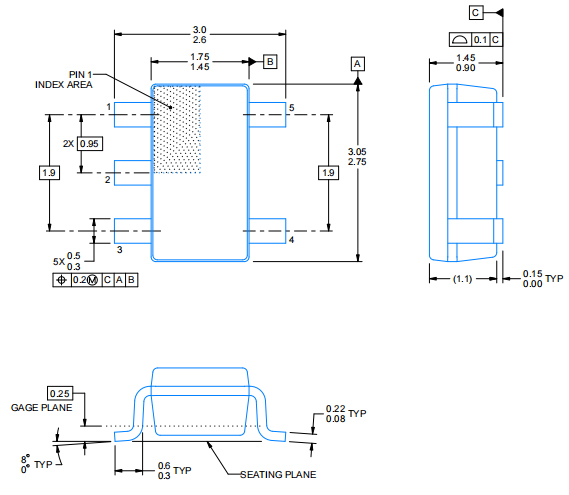

The SN74LVC1G17QDCKRQ1 Package is shown as follows.
