SP0503BAHT TVS Diode Arrays: Circuit, Pinout, and Datasheet

SP0503BAHT is a  Surface Mount  TVS Avalanche Diode Array.  ESD  and other transient overvoltage occurrences are suppressed by the surface mount family of arrays. The International Electrotechnical Compatibility  (IEC transient immunity standards IEC 61000-4-2  for Electrostatic Discharge Requirements) is met with these arrays. On data, signal, or control lines with voltage levels up to 5VDC, the series is used to help protect sensitive digital or analog input circuitry.

The monolithic silicon arrays are made up of structures that are specifically designed to suppress transient voltages (TVS). These structures have been designed with transitory protection in mind.

For high-speed signal line protection, the low capacitance and clamp voltage are excellent.

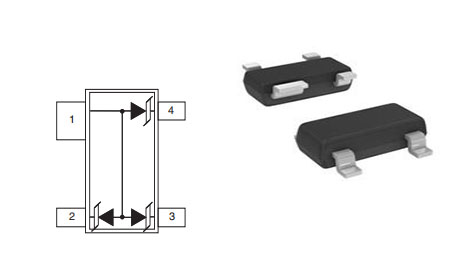

The following figure is SP0503BAHT Pinout.

Pinout

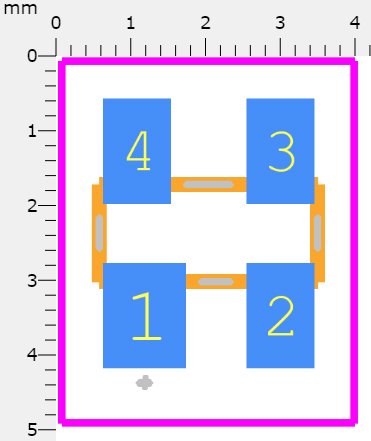

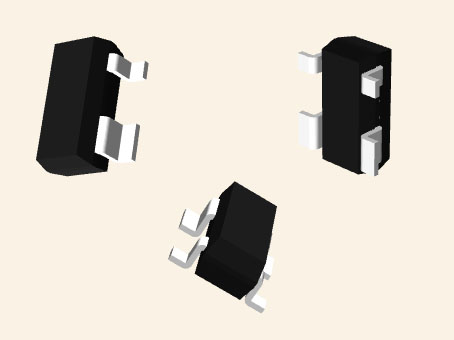

The followings are SP0503BAHT Symbol, Footprint and 3D Model.

Symbol

Footprint

3D Model

• An Array of 2, 3, 4, 5 or 6 TVs  Avalanche Diodes  in a ultra-small SC70, SOT-23, SOT-143, MSOP or TSSOP packages

• ESD Capability Standards

IEC 61000-4-2, Direct Discharge . . . . . . . . . 20kV (Level 4)

IEC 61000-4-2, Air Discharge . . . . . . . . . . . 30kV (Level 4)

MIL STD 883 3015.7. . . . . . . . . . . . . . . . . . . . . . . . . . 30kV

• Input Protection for Applications Up to 5VDC

• Fast Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1ns

• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . 30pF Typical

• Operating Temperature Range. . . . . . . . . . . . . -40°C to 85°C

Littelfuse Inc. SP0503BAHT technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SP0503BAHT.

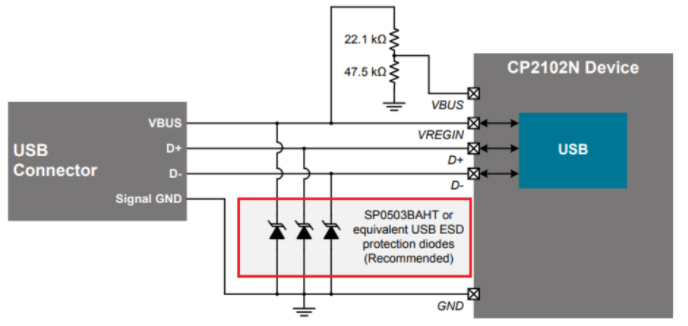

The following figure is SP0503BAHT Protection Circuit.

1- We utilize diode D3 in the terminal to provide reverse polarity protection before sending it to the voltage regulator.

2- At the same time, the USB power is linked to the SP0503 IC, which is used for ESD protection (The following figure).

Power Coming from Terminals or From USB

• Mobile phone handsets

• Personal Digital Assistants (PDA)

• Portable handheld equipment (Laptop, Palmtop computers)

• Computer port, keyboard (USB1.1)

• Digital still cameras

• Digital video cameras

• MP3 players

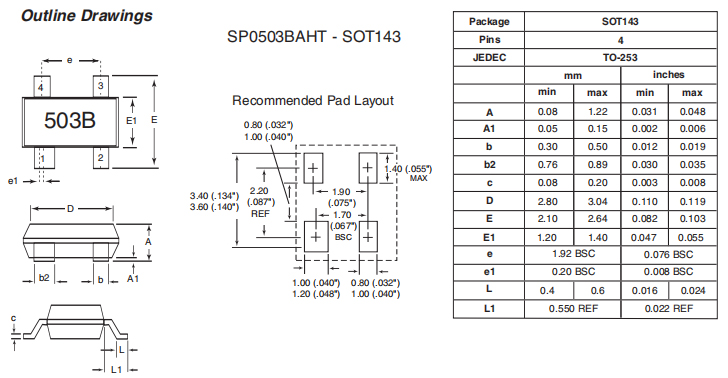

The following figure is SP0503BAHT Package.

Package
