TVS DIODE 3.3VWM 20VC 8SOIC
The SP2502LBTG comes from the SP2502L series. This article will unlock more details about SP2502LBTG.
SP2502LBTG TVS Diode: Pinout, Datasheet, Schematic
TVS DIODE 3.3VWM 20VC 8SOIC The SP2502LBTG comes from the SP2502L series. This article will unlock more details about SP2502LBTG.
95
Aug 25, 2021
Lynn Faulkner
SP2502LBTG
2500In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.13659 | $2.14 |
| 10+ | $2.01566 | $20.16 |
| 100+ | $1.90156 | $190.16 |
| 500+ | $1.79393 | $896.97 |
| 1000+ | $1.69238 | $1692.38 |
Unit Price:$2.13659
Subtotal: $2.14
Quick Links

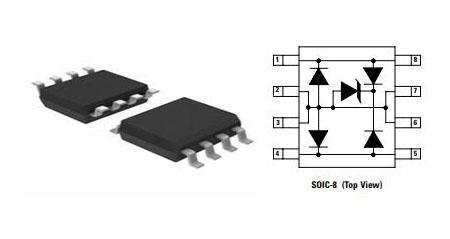

SP2502LBTG Pinout
SP2502LBTG CAD Model

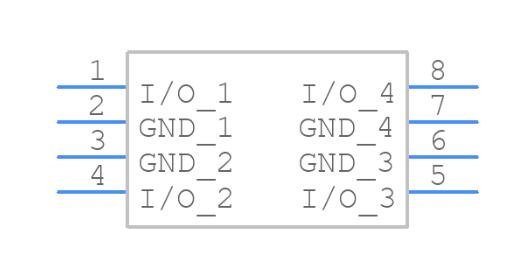

Symbol
Footprint

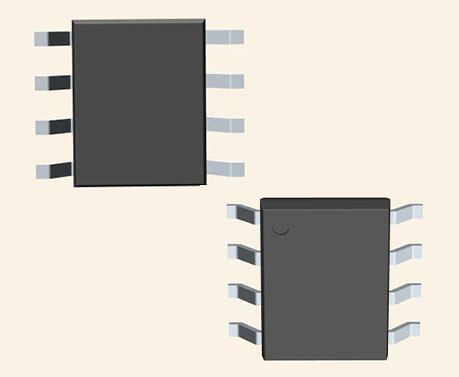

3D Model
SP2502LBTG Description
The SP2502LBTG comes from the SP2502L series. The SP2502L provides overvoltage protection for applications such as 10/100/1000 Base-T Ethernet and T3/ E3 interfaces. This device has a low capacitance of only 5pF making it suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients.
Specifications
Littelfuse Inc. SP2502LBTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SP2502LBTG.
SP2502LBTG Tech Specifications
SP2502LBTG Tech Specifications
Littelfuse Inc. SP2502LBTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SP2502LBTG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 13 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Reverse Stand-off Voltage | 3.3V | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Cut Tape (CT) | |
| Series | SP2502L, SPA® | |
| Published | 2012 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| Termination | SMD/SMT |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | Steering (Rail to Rail) | |
| Terminal Finish | Matte Tin (Sn) | |
| Applications | Ethernet | |
| Additional Feature | LOW CAPACITANCE | |
| Capacitance | 5pF | |
| Max Power Dissipation | 2.1kW | |
| Terminal Form | GULL WING | |
| Depth | 4mm | |
| Pin Count | 8 | |
| Operating Supply Voltage | 3.3V | |
| Working Voltage | 3.3V | |
| Polarity | UNIDIRECTIONAL | |
| Number of Channels | 2Channels | |
| Leakage Current | 1μA | |
| Element Configuration | Dual | |
| Power Line Protection | Yes |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power - Peak Pulse | 2100W 2.1kW | |
| Current - Peak Pulse (10/1000μs) | 75A 8/20μs | |
| Voltage - Clamping (Max) @ Ipp | 20V | |
| Clamping Voltage | 30V | |
| Voltage - Reverse Standoff (Typ) | 3.3V Max | |
| Peak Pulse Current | 75A | |
| Peak Pulse Power | 2.1kW | |
| Direction | Bidirectional | |
| Capacitance @ Frequency | 5pF @ 1MHz | |
| Max Breakdown Voltage | 3.3V | |
| Length | 5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
SP2502LBTG Features
• Lightning protection, IEC 61000-4-5, 75A (8/20µs)
• Low clamping voltage
• Low insertion loss, log-linear capacitance
• Combined longitudinal and metallic protection
• Clamping speed of nanoseconds
• SOIC-8 surface mount package (JEDEC MS-012)
• Lead-Free and RoHS-compliant

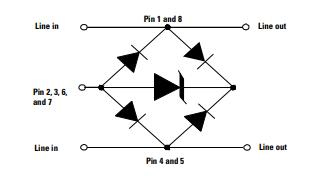

SP2502LBTG Functional Block Diagram
SP2502LBTG Application
• T1/E1 Line cards
• T3/E3 and DS3 Interfaces
• STS-1 Interfaces
• 10/100/1000 BaseT Ethernet

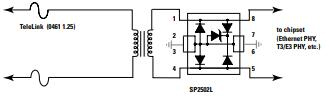

SP2502LBTG Schematic
The application schematic provides the connection information for a PHY side protection scheme of a single differential pair, which is given below.
This schematic shows protection for a single differential pair as part of a larger high-speed data interface such as Ethernet. The SP2502L provides both metallic (differential) and longitudinal (common mode) protection from lightning-induced surge events as specified by regulatory standards such as Telcordia’s GR-1089 CORE and ITU K.20 and 21. The SP2502L protects against both positive and negative induced surge events while the TeleLink fuse provides overcurrent protection for the long term 50/60 Hz power fault events.
SP2502LBTG Manufacturer
Littelfuse is an industrial technology manufacturing company empowering a sustainable, connected, and safer world. Across more than 15 countries, and with 12,000 global associates, we partner with customers to design and deliver innovative, reliable solutions. Serving over 100,000 end customers, our products are found in a variety of industrial, transportation, and electronics end markets—everywhere, every day.

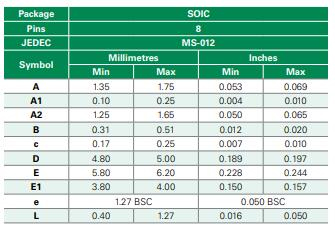

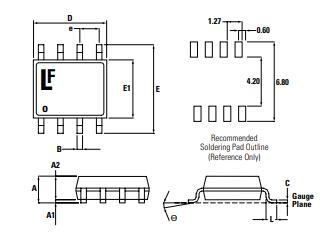

SP2502LBTG Package
Datasheet PDF
Download datasheets and manufacturer documentation for Littelfuse Inc. SP2502LBTG.
SP2502LBTG Documents
SP2502LBTG Documents
Download datasheets and manufacturer documentation for SP2502LBTG
Datasheets
SP2502L Series
Environmental Information
RoHS 3 Cert SP2502LBTG
Frequently Asked Questions
What is the SP2502LBTG?
The SP2502LBTG comes from the SP2502L series. The SP2502L provides overvoltage protection for applications such as 10/100/1000 Base-T Ethernet and T3/ E3 interfaces. This device has a low capacitance of only 5pF making it suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients.
Why is the SP2502LBTG suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients?
Because it has a low capacitance of only 5pF making it suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients.
What did make the SP2502LBTG suitable for line side protection as well against lightning transients as defined by GR-1089 (intra-building), ITU, YD/T, etc.
The SP2502LBTG is rated up to 100A (tp=2/10µs) making it suitable for line side protection as well against lightning transients as defined by GR-1089 (intra-building), ITU, YD/T, etc.
FAQ
What is the SP2502LBTG?
The SP2502LBTG comes from the SP2502L series. The SP2502L provides overvoltage protection for applications such as 10/100/1000 Base-T Ethernet and T3/ E3 interfaces. This device has a low capacitance of only 5pF making it suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients.
Why is the SP2502LBTG suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients?
Because it has a low capacitance of only 5pF making it suitable for PHY side Ethernet protection and the capability to protect against both longitudinal and differential transients.
What did make the SP2502LBTG suitable for line side protection as well against lightning transients as defined by GR-1089 (intra-building), ITU, YD/T, etc.
The SP2502LBTG is rated up to 100A (tp=2/10µs) making it suitable for line side protection as well against lightning transients as defined by GR-1089 (intra-building), ITU, YD/T, etc.
