TVS DIODE 2.5VWM 11.5VC UDFN10
The SP2504NUTG is from the SP2504N series, integrating 4 channels of low capacitance diodes with an additional Zener diode to protect sensitive I/O pins against lightning-induced surge events and ESD.
SP2504NUTG TVS Diode: Datasheet, Pinout, Application
TVS DIODE 2.5VWM 11.5VC UDFN10 The SP2504NUTG is from the SP2504N series, integrating 4 channels of low capacitance diodes with an additional Zener diode to protect sensitive I/O pins against lightning-induced surge events and ESD.
44
Aug 25, 2021
Lynn Faulkner
SP2504NUTG
82024In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.79396 | $1.79 |
| 10+ | $1.69242 | $16.92 |
| 100+ | $1.59662 | $159.66 |
| 500+ | $1.50625 | $753.13 |
| 1000+ | $1.42099 | $1420.99 |
Unit Price:$1.79396
Subtotal: $1.79
Quick Links

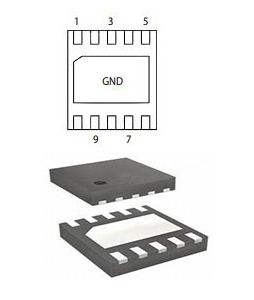

SP2504NUTG Pinout
SP2504NUTG CAD Model

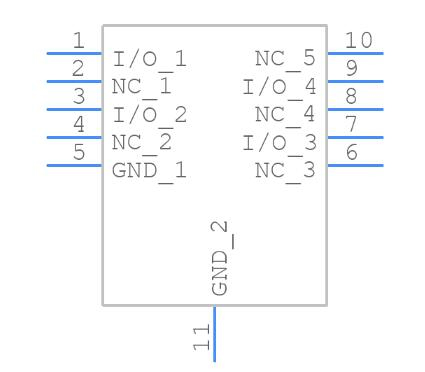

Symbol

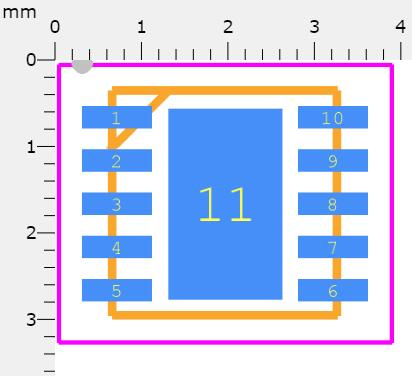

Footprint

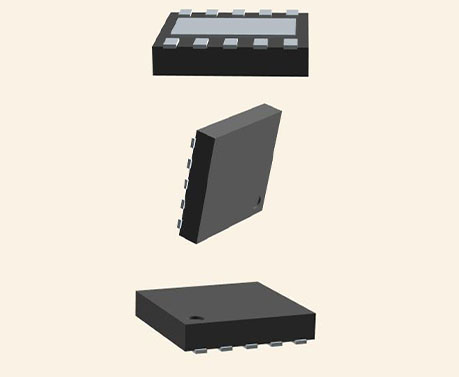

3D Model
SP2504NUTG Description
The SP2504NUTG is from the SP2504N series, integrating 4 channels of low capacitance diodes with an additional Zener diode to protect sensitive I/O pins against lightning-induced surge events and ESD.
Specifications
Littelfuse Inc. SP2504NUTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SP2504NUTG.
SP2504NUTG Tech Specifications
SP2504NUTG Tech Specifications
Littelfuse Inc. SP2504NUTG technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SP2504NUTG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 13 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-UFDFN Exposed Pad | |
| Number of Pins | 10Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Reverse Stand-off Voltage | 2.5V | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Cut Tape (CT) | |
| Series | SP2504N, SPA® | |
| Published | 2012 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 10Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | Steering (Rail to Rail) | |
| Applications | General Purpose | |
| Additional Feature | LOW CAPACITANCE | |
| Capacitance | 5pF | |
| Max Power Dissipation | 300W | |
| Terminal Position | DUAL | |
| Depth | 2.6mm | |
| Operating Supply Voltage | 2.5V | |
| Working Voltage | 2.5V | |
| Polarity | UNIDIRECTIONAL | |
| Configuration | SINGLE | |
| Number of Channels | 4Channels | |
| Leakage Current | 1μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Line Protection | Yes | |
| Current - Peak Pulse (10/1000μs) | 20A 8/20μs | |
| Clamping Voltage | 11.5V | |
| Voltage - Reverse Standoff (Typ) | 2.5V Max | |
| Peak Pulse Current | 20A | |
| Peak Pulse Power | 300W | |
| Direction | Bidirectional | |
| Unidirectional Channels | 4 | |
| JEDEC-95 Code | MO-229 | |
| Breakdown Voltage-Max | 5V | |
| Length | 2.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
SP2504NUTG Features
• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 40A (tp=5/50ns)
• Lightning, IEC 61000- 4-5, 2nd edition 20A (tp=8/20µs)
• Low capacitance of 3.5pF (TYP) per I/O
• Low leakage current of 1µA (MAX) at 2.5V
• RoHS compliant and lead-free

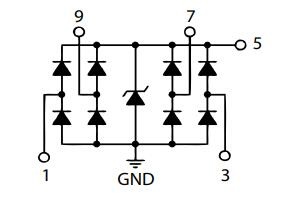

SP2504NUTG Functional Block Diagram
SP2504NUTG Application
• 10/100/1000 Ethernet Interfaces
• Customer Premise Equipment (CPE)
• VoIP Phones
• Set-Top Boxes
• PBX Systems
• Surveillance Cameras

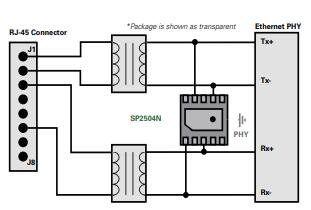

SP2504NUTG Schematic

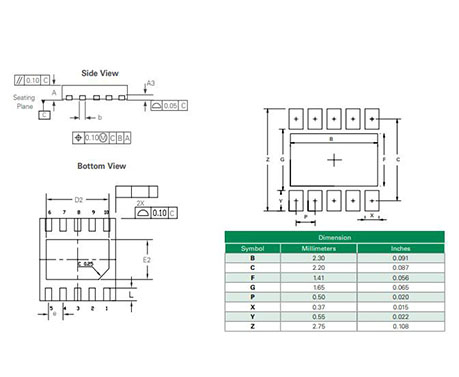

SP2504NUTG Dimensions
SP2504NUTG Manufacturer
Littelfuse is an industrial technology manufacturing company empowering a sustainable, connected, and safer world. Across more than 15 countries, and with 12,000 global associates, we partner with customers to design and deliver innovative, reliable solutions. Serving over 100,000 end customers, our products are found in a variety of industrial, transportation, and electronics end markets—everywhere, every day.
Datasheet PDF
Download datasheets and manufacturer documentation for Littelfuse Inc. SP2504NUTG.
SP2504NUTG Documents
SP2504NUTG Documents
Download datasheets and manufacturer documentation for SP2504NUTG
Datasheets
SP2504N Series
SP2504NUTG-Littelfuse-datasheet-12515537.pdf
SP2504NUTG-Littelfuse-datasheet-44361383.pdf
Environmental Information
RoHS 3 Cert SP2504NUTG
Frequently Asked Questions
What is SP2504N series?
The SP2504N integrates 4 channels of low capacitance diodes with an additional Zener diode to protect sensitive I/O pins against lightning-induced surge events and ESD.
What did make the SP2504N ideal for protecting high-speed signal pins?
The low loading capacitance makes the SP2504N ideal for protecting high-speed signal pins.
What advantages does the SP2504N have?
This robust device can safely absorb up to 20A per IEC 61000-4-5, 2nd edition (tP=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 international standard.
FAQ
What is SP2504N series?
The SP2504N integrates 4 channels of low capacitance diodes with an additional Zener diode to protect sensitive I/O pins against lightning-induced surge events and ESD.
What did make the SP2504N ideal for protecting high-speed signal pins?
The low loading capacitance makes the SP2504N ideal for protecting high-speed signal pins.
What advantages does the SP2504N have?
This robust device can safely absorb up to 20A per IEC 61000-4-5, 2nd edition (tP=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 international standard.
