SP2526A Series 5.5 V 500 mA Dual Channel High Side USB Power Switch - NSOIC-8
The SP2526A device is a dual 3.0V to 5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications. Each switch has low on-resistance (110mΩ typical) and can supply 500mA minimum. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
SP2526A-1EN-L/TR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.95819 | $0.96 |
| 10+ | $0.90395 | $9.04 |
| 100+ | $0.85279 | $85.28 |
| 500+ | $0.80451 | $402.26 |
| 1000+ | $0.75898 | $758.98 |

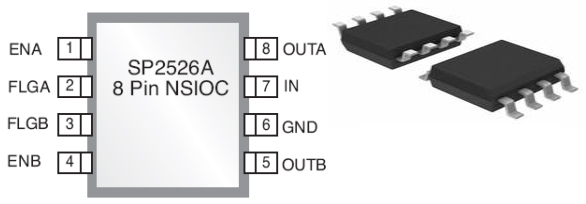

The following figure is the diagram of SP2526A Pinout.
Pinout
The followings are SP2526A Symbol and Footprint.
symbol
foootprint
The SP2526A device is a dual +3.0V to +5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications. Each switch has low on-resistance (110mΩ typical) and can supply 500mA minimum. The fault currents are limited to 1.0A typical and the flag output pin for each switch is available to indicate fault conditions to the USB controller. The thermal shutdown feature will prevent damage to the device when subjected to excessive current loads. The undervoltage lockout feature will ensure that the device will remain off unless there is a valid input voltage present. The SP2526A is offered in a RoHS compliant “green”/halogen free 8-pin NSOIC package.
This article will introduce SP2526A systematically from its features, pinout to its specifications, applications, also including SP2526A datasheet and so much more.
• +3.0V to +5.5V Input Voltage Range
• Two Independent Power Switches
• Two Error Flag Outputs, Open Drain
• 2.6V Undervoltage Lockout
• 1.25A Short Circuit Current Limit
• 150mΩ Maximum On-Resistance
• 110μA On-State Supply Current
• 1μA Shutdown Current
• Output can be Forced Higher than Input (Off-State)
• Thermal Shutdown
• 1ms Soft Start Power Up, Fast Turn Off
• Active-high Version: SP2526A-1
• Active-low Version: SP2526A-2
• RoHS Compliant, Green/Halogen Free 8-Pin NSOIC Package
MaxLinear, Inc. SP2526A-1EN-L/TR technical specifications, attributes, parameters and parts with similar specifications to MaxLinear, Inc. SP2526A-1EN-L/TR.
MaxLinear, Inc. SP2526A-1EN-L/TR technical specifications, attributes, parameters and parts with similar specifications to MaxLinear, Inc. SP2526A-1EN-L/TR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| JESD-30 Code | R-PDSO-G8 | |
| Number of Outputs | 2Outputs | |
| Qualification Status | Not Qualified | |
| Output Type | N-Channel | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Number of Channels | 2Channels | |
| Interface | On/Off | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Output Configuration | High Side | |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Product Attribute | Attribute Value | |
|---|---|---|
| Adjustable Threshold | NO | |
| Input Type | Non-Inverting | |
| Switch Type | USB Switch | |
| Supply Current-Max (Isup) | 0.16mA | |
| Ratio - Input:Output | 1:2 | |
| Voltage - Load | 3V~5.5V | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO | |
| Rds On (Typ) | 110m Ω | |
| Features | Status Flag | |
| Length | 4.9mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| RoHS Status | RoHS Compliant |

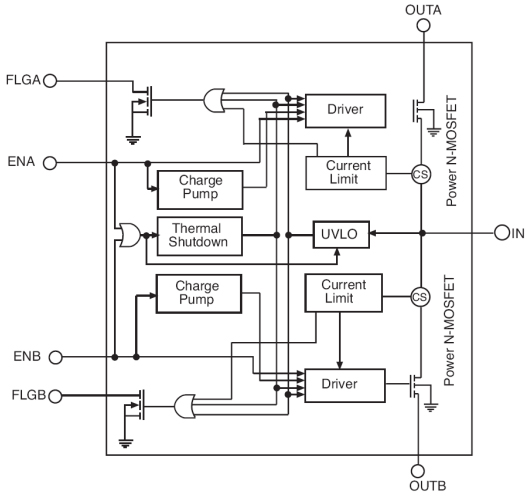

The following is the Block Diagram of SP2526A.
SP2526A Block Diagram
| Model number | Manufacturer | Description |
| SP2526A-1EN | Sipex Corporation | Power Supply Support Circuit, Fixed, 2 Channel, PDSO8, MS-012AA, NSOIC-8 |
| SP2526A-1EN-L/TR | Sipex Corporation | Power Supply Support Circuit, Fixed, 2 Channel, PDSO8, LEAD FREE, MS-012AA, NSOIC-8 |
| SP2526A-1EN-L | Sipex Corporation | Power Supply Support Circuit, Fixed, 2 Channel, PDSO8, LEAD FREE, MS-012AA, NSOIC-8 |
• Self Powered USB 2.0 and 3.0 Hubs
• USB Compliant VBUS Power Distribution
• Audio-Video Equipment
• Generic Power Switching

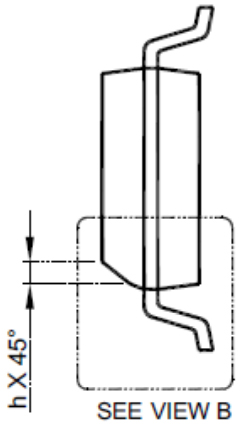

The following diagrams show the SP2526A package.
View A
View B
View C
View D
