The SP505 is a monolithic device that supports eight (8) popular serial interface standards for DTE to DCE connectivity. This article covers its datasheet, pinout, typical operation and more detail about SP505.
SP505 Transceiver：Datasheet, Pinout, Operation Circuit
IC TRANSCEIVER FULL 7/7 80LQFP The SP505 is a monolithic device that supports eight (8) popular serial interface standards for DTE to DCE connectivity.
99
Sep 2, 2021
Virginia Gallup
SP505BCM-L
Inquiry
Min.: 1 Mult.: 1
Quick Links
SP505 Pinout
SP505 CAD Model
Symbol
SP505 Symbol

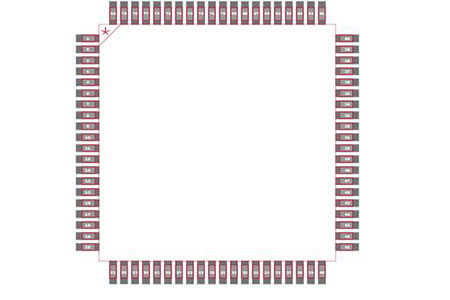

Footprint
SP505 Footprint
3D Model
SP505 3D Model
SP505 Description
The SP505 is a highly integrated serial transceiver that allows software control of its interface modes. Similar to the SP504, the SP505 offers the same hardware interface modes for RS-232 (V.28), RS-422A (V.11), RS-449, RS-485, V.35, EIA-530 and includes V.36 and EIA-530A. The interface mode selection is done via a 4–bit switch for the drivers and receivers. The SP505 is fabricated using low–power BiCMOS process technology, and incorporates an Exar–patented (5,306,954) charge pump allowing +5V only operation. Each device is packaged in an 80–pin JEDEC Quad FlatPack package.
Specifications
MaxLinear, Inc. SP505BCM-L technical specifications, attributes, parameters and parts with similar specifications to MaxLinear, Inc. SP505BCM-L.
SP505BCM-L Tech Specifications
SP505BCM-L Tech Specifications
MaxLinear, Inc. SP505BCM-L technical specifications, attributes, parameters and parts with similar specifications to MaxLinear, Inc. SP505BCM-L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 80-LQFP | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tray |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Type | Transceiver | |
| Voltage - Supply | 4.75V~5.25V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Rate | 16Mbps | |
| Protocol | Multiprotocol | |
| Number of Drivers/Receivers | 7/7Drivers/Receiver | |
| Duplex | Full |
SP505BCM-L Features
• +5V Only Operation
• Seven (7) Drivers and Seven (7) Receivers
• Driver and Receiver Tri-state Control
• Internal Transceiver Termination Resistors for V.11 and V.35 Protocols
• Loopback Self-Test Mode
• Software Selectable Protocol Selection
• Interface Modes Supported:
• RS-232 (V.28) • X.21/RS-422 (V.11)
• EIA-530 (V.10 & V.11) • EIA-530A (V.10 & V.11)
• RS-449 (V.10 & V.11) • V.35 (V.35 & V.28)
• V.36 (V.10 & V.11) • RS-485 (un-terminated V.11)
• Improved ESD Tolerance for Analog I/Os
• High Differential Transmission Rates
• SP505A - 10Mbps
• SP505B - over 16Mbps
• Compliant to NET1/2 and TBR2 Physical Layer Requirements
SP505 Theory of Operation
The SP505 is made up of five separate circuit blocks — the charge pump, drivers, receivers, decoder and switching array. Each of these circuit blocks is described in more detail below.
The SP505 charge pump is based on the SP504 design where Exar's patented charge pump design (5,306,954) uses a four-phase voltage shifting technique to attain symmetrical 10V power supplies.

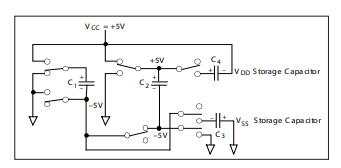

SP505 Charge Pump Phase 1 for +5V

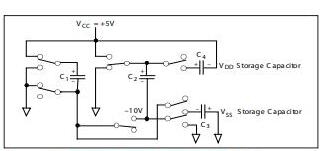

SP505 Charge Pump Phase 1 for +10V

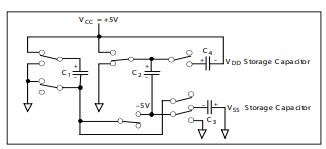

SP505 Charge Pump Phase 2 for +5V

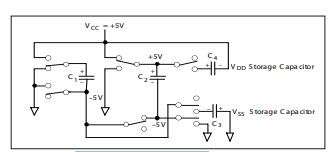

SP505 Charge Pump Phase 2 for +10V
SP505 Charge Pump Phase 3
SP505 Charge Pump Phase 4
SP505 Package
SP505 Manufacturer
MaxLinear strives to improve the world’s communication networks for everyone by connecting people through our highly integrated radio-frequency (RF), analogue, digital, and mixed-signal semiconductor solutions for access and connectivity, wired and wireless infrastructure, and industrial and multi-market applications.
Datasheet PDF
Download datasheets and manufacturer documentation for MaxLinear, Inc. SP505BCM-L.
SP505BCM-L Documents
SP505BCM-L Documents
Download datasheets and manufacturer documentation for SP505BCM-L
PCN Obsolescence/ EOL
Mult Devices 11/Jul/2017
PCN Assembly/Origin
Wafer Process 11/Feb/2016
PCN Other
Multiple Changes 03/Oct/2013
PCN Design/Specification
SiO2 5KA SiN 7KA Passivation 03/Oct/2013
Frequently Asked Questions
What is the SP505?
The SP505 is a highly integrated serial transceiver that allows software control of its interface modes. Similar to the SP504, the SP505 offers the same hardware interface modes for RS-232 (V.28), RS-422A (V.11), RS-449, RS-485, V.35, EIA-530 and includes V.36 and EIA-530A. The interface mode selection is done via a 4–bit switch for the drivers and receivers. The SP505 is fabricated using low–power BiCMOS process technology, and incorporates an Exar–patented (5,306,954) charge pump allowing +5V only operation. Each device is packaged in an 80–pin JEDEC Quad FlatPack package.
What is the SP505 suited for?
The SP505 is ideally suited for wide area network connectivity based on the interface modes offered and the driver and receiver configurations.
How many independent drivers and independent receivers does the SP505 have?
The SP505 has seven (7) independent drivers and seven (7) independent receivers.
FAQ
What is the SP505?
The SP505 is a highly integrated serial transceiver that allows software control of its interface modes. Similar to the SP504, the SP505 offers the same hardware interface modes for RS-232 (V.28), RS-422A (V.11), RS-449, RS-485, V.35, EIA-530 and includes V.36 and EIA-530A. The interface mode selection is done via a 4–bit switch for the drivers and receivers. The SP505 is fabricated using low–power BiCMOS process technology, and incorporates an Exar–patented (5,306,954) charge pump allowing +5V only operation. Each device is packaged in an 80–pin JEDEC Quad FlatPack package.
What is the SP505 suited for?
The SP505 is ideally suited for wide area network connectivity based on the interface modes offered and the driver and receiver configurations.
How many independent drivers and independent receivers does the SP505 have?
The SP505 has seven (7) independent drivers and seven (7) independent receivers.
