SS16 DIODE Schottky Rectifier 60 V 1 A SMA[FAQ]: Datasheet, Features, and Applications

In a Pack of 25, ON Semi 60V 1A, Schottky Diode, 2-Pin DO-214AC SS16 SS16 is a semiconductor product. This article is going to introduce applications, features, and more details about SS16.

81

Feb 8, 2022

Miriam Frances

In a Pack of 25, ON Semi 60V 1A, Schottky Diode, 2-Pin DO-214AC SS16

SS16 is a semiconductor product. This article is going to introduce applications, features, and more details about SS16.

SS16

8240In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.12441$0.12
10+ $0.11737$1.17
100+ $0.11072$11.07
500+ $0.10446$52.23
1000+ $0.09855$98.55
Unit Price:$0.12441
Subtotal: $0.12
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

Overview of SS16

The SS16  includes general-purpose Schottky rectifiers with excellent efficiency and minimal power loss. High thermal performance and low electrical resistance are provided by the clip bonded leg structure. Freewheeling, secondary rectification and reverse polarity protection are all possible with these rectifiers.

SS16 Features

  • Janet Leads in a Small Compact Surface Mountable Package

  • Automated Handling Rectangular Package

  • Oxide Passivated Junction  with High Stability

  • The Forward Voltage Drop  is Extremely Low

  • Stress-relieving encircling

  • SBRA8 Prefix for Automotive and Other Applications with Special Site and Control Change Requirements; AECQ101 Qualified and PPAP Compliant  *

  • These products are lead-free, halogen-free/BFR-free, and RoHS compliant.

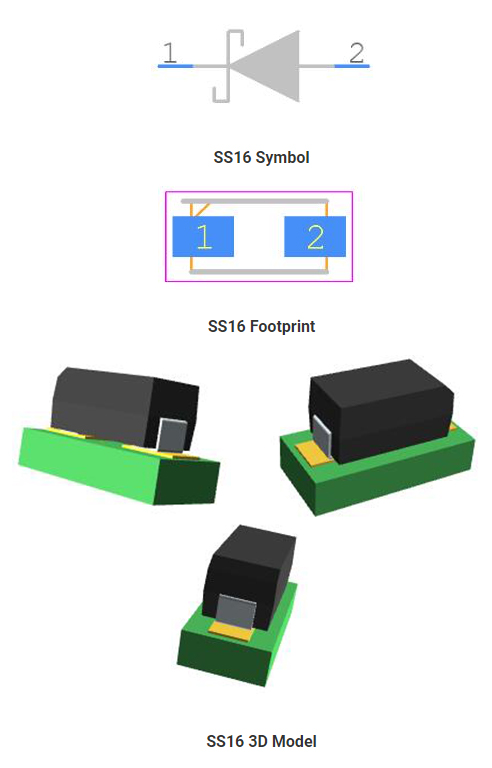

SS16 Marking Diagram

SS16 Marking Diagram

SS16 3D Model

Specifications

SS16 Tech Specifications

ON Semiconductor SS16 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS16.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 1 day ago)
Factory Lead Time8 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Number of Pins2Pins
Diode Element MaterialSILICON
Number of Elements1 Element
PackagingTape & Reel (TR)
Published2001
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations2Terminations
TerminationSMD/SMT
ECCN CodeEAR99
Terminal FinishTin (Sn)
Max Operating Temperature150°C
Min Operating Temperature-55°C
Product Attribute Attribute Value
Additional FeatureFREE WHEELING DIODE
HTS Code8541.10.00.80
Voltage - Rated DC60V
Terminal PositionDUAL
Terminal FormC BEND
Peak Reflow Temperature (Cel)260
Current Rating1A
Time@Peak Reflow Temperature-Max (s)30
Base Part NumberSS16
Pin Count2
PolarityStandard
Voltage60V
Element ConfigurationSingle
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current1A
Diode TypeSchottky
Current - Reverse Leakage @ Vr200μA @ 60V
Output Current1A
Voltage - Forward (Vf) (Max) @ If700mV @ 1A
Forward Current1A
Product Attribute Attribute Value
Max Reverse Leakage Current200μA
Operating Temperature - Junction-65°C~125°C
Max Surge Current40A
Forward Voltage700mV
Max Reverse Voltage (DC)60V
Average Rectified Current1A
Peak Reverse Current200μA
Max Repetitive Reverse Voltage (Vrrm)60V
Peak Non-Repetitive Surge Current40A
Reverse Voltage60V
Max Forward Surge Current (Ifsm)40A
Max Junction Temperature (Tj)150°C
Height2.5mm
Length4.6mm
Width2.9mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

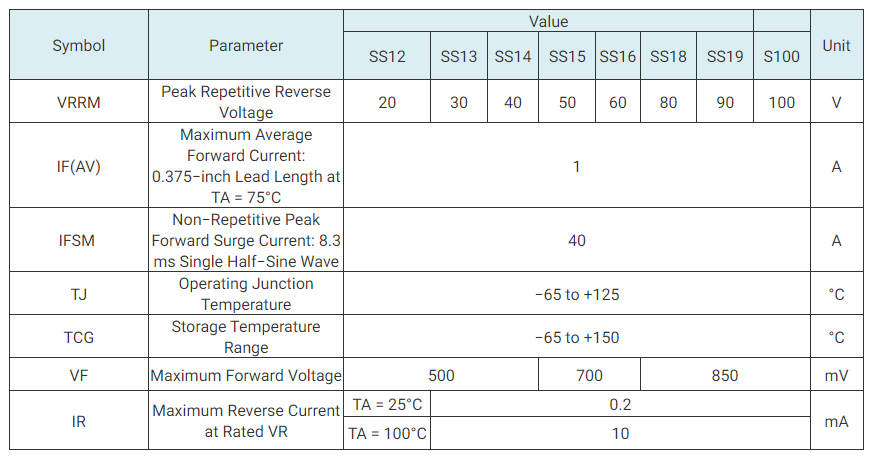

SS16 Absolute Maximum Rating

SS16 Applications

• Low Voltage

• High−Frequency Inverters

• Free Wheeling

• Polarity Protection

SS16 Mechanical Characteristics

  • Case: Epoxy, Molded

  • Weight: 70 mg (approximately)

  • Finish: All External Surfaces Corrosion   Resistant  and Terminal   Lead  s are Readily Solderable

  • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

  • Shipped in 12 mm tape, 5000 units per 13-inch reel

  • Polarity: Cathode Lead  Indicated by Polarity Band

  • ESD Ratings: Machine Model = CHuman Body Model = 3B

  • Marking: SS16

  • Pb-Free Package is Available

  • AEC-Q101 Qualified and PPAP Capable

  • SBRA8 Prefix for Automotive and Other Applications Requiring Unique Site and ControlChange Requirements

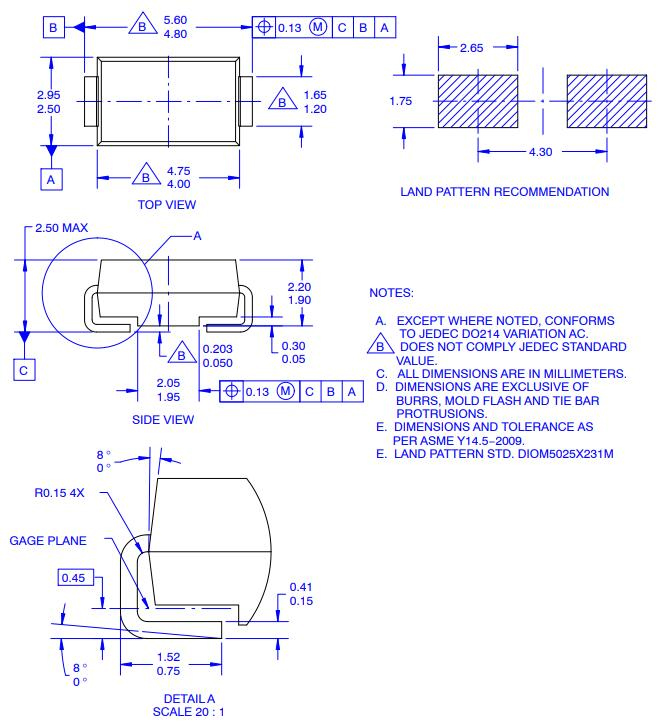

SS16 Package information

SS16 Package information



SS16 Manufacturer

ON Semiconductor (Nasdaq: ON) is a leader in energy efficiency, enabling clients to cut worldwide energy consumption. To assist design engineers in solving their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications, the company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete, and custom solutions. ON Semiconductor has a world-class supply chain and quality program, as well as a network of manufacturing sites, sales offices, and design centers in important markets across North America, Europe, and the Asia Pacific.

Datasheet PDF

Download datasheets and manufacturer documentation for ON Semiconductor SS16.

SS16 Documents

Download datasheets and manufacturer documentation for SS16

Frequently Asked Questions

How many pins of SS16 ?
2 pins.
What’s the operating temperature of SS16?
-55°C~150°C TA.
What’s the packaging way of SS16?
Tape & Reel (TR).
What’s the Diode Type of SS16?
Schottky.
What’s the voltage of SS16?
60V.
What’s the Forward Voltage of SS16?
700mV.
FAQ
How many pins of SS16 ?
2 pins.
What’s the operating temperature of SS16?
-55°C~150°C TA.
What’s the packaging way of SS16?
Tape & Reel (TR).
What’s the Diode Type of SS16?
Schottky.
What’s the voltage of SS16?
60V.
What’s the Forward Voltage of SS16?
700mV.
