DIODE SCHOTTKY 40V 3A SMC SS34 is a surface mount high power Schottky diode with a low voltage drop of 0.5V and a high forward current of 3A.
12660
Aug 5, 2021
Golda
SS12 (1N5817) and SS34 (1N5822) SMD unpack and TEST!
DIODE SCHOTTKY 40V 3A SMC
SS34 is a surface mount high power Schottky diode with a low voltage drop of 0.5V and a high forward current of 3A. This article mainly introduce replacement, price, datasheet and other detailed information about On Semiconductor SS34.
SS34
SS34 is a surface mount high power Schottky Diode with a low voltage drop of 0.5V and a high forward current of 3A. This diode has high efficiency and high surge current capability of 100A. It is suited for freewheeling, DC/DC converter and reverse polarity protection applications.
Symbol

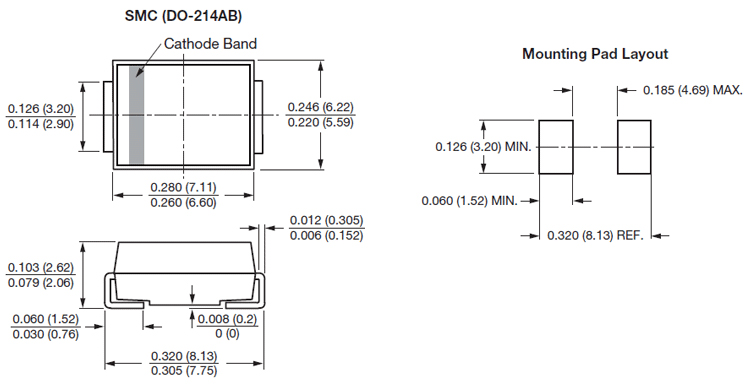

Footprint

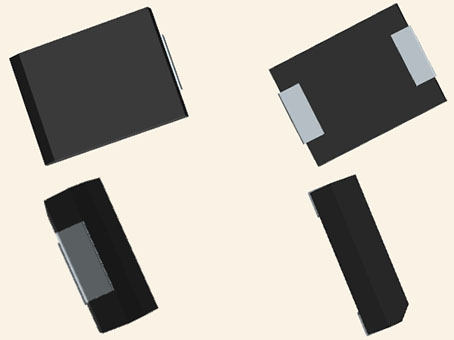

3D Model
● Power Schottky Barrier Diode
● Forward Current (IF): 3A
● Maximum Forward Voltage (VF): 0.5V (@3A)
● Reverse Current (IR): 0.5mA
● Maximum DC Blocking Voltage: 40V
● Diode Marking: S4
● Available in SMC DO-214AB and DO-214AA Package
● Guarding protection
● Low forward voltage drop
● Reverse energy tested
● High current capability
● Extremely low thermal resistance
● Standard products are Pb-free and
● Halogen-free
ON Semiconductor SS34 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS34.
ON Semiconductor SS34 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS34.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 9 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AB, SMC | |
| Number of Pins | 2Pins | |
| Supplier Device Package | SMC (DO-214AB) | |
| Operating Temperature (Max) | 150°C | |
| Operating Temperature (Min) | -55°C | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Part Status | ACTIVE (Last Updated: 2 days ago) | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Voltage - Rated DC | 40V | |
| Max Power Dissipation | 2.27W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 3A | |
| Base Part Number | SS34 | |
| Polarity | Standard | |
| Voltage | 40V | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Current | 3A | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 40V | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A | |
| Current - Output | 3A | |
| Forward Current | 3A | |
| Max Reverse Leakage Current | 500μA | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 100A | |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Average Rectified (Io) | 3A | |
| Forward Voltage | 500mV | |
| Max Reverse Voltage (DC) | 40V | |
| Average Rectified Current | 3A | |
| Peak Reverse Current | 20mA | |
| Max Repetitive Reverse Voltage (Vrrm) | 40V | |
| Peak Non-Repetitive Surge Current | 100A | |
| Max Forward Surge Current (Ifsm) | 100A | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 2.65mm | |
| Length | 7.15mm | |
| Width | 6.25mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
■ Prevent reverse polarity problem
■ High Frequency Inverters
■ Used as a protection device
■ Current flow regulators
■ Switching mode power supply (SMPS)
■ Adapters
■ Lighting application
■ For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
ON Semiconductor is a semiconductor supplier company, Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices and design centers in North America, Europe, and the Asia Pacific regions.ON Semiconductor's headquarter is in Phoenix, Arizona.
Download datasheets and manufacturer documentation for ON Semiconductor SS34.
Download datasheets and manufacturer documentation for SS34
