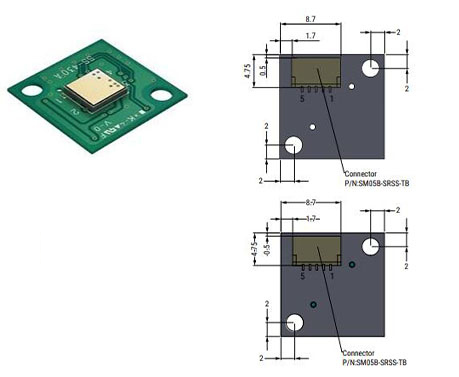

SS430 Pinout
SS430 Description
The SS430 belongs to KEMET's SS Pyroelectric Infrared Sensor Module. KEMET's SS series pyroelectric infrared sensors use the pyroelectric effect of ceramic by absorbing infrared rays emitted from the human body. This detects the natural infrared signature produced by humans. Also, these proximity sensors can detect infrared rays without using lenses. By adding a proprietary lens, the detection distance can be further improved.
SS430 Benefits
• Equipped with AMP circuit and comparator circuit
• Digital output
• Available with or without lens
• Flat top surface of the lens
• Microcomputer installed
• Connector mounting
• Excellent radio wave performance in the high-frequency band
• Compact (15.00 x 15.00 x 5.65 mm)
Specifications
KEMET SS-430 technical specifications, attributes, parameters and parts with similar specifications to KEMET SS-430.
SS-430 Tech Specifications
SS-430 Tech Specifications
KEMET SS-430 technical specifications, attributes, parameters and parts with similar specifications to KEMET SS-430.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 23 Weeks | |
| Surface Mount | NO | |
| Package / Case | Module | |
| Mounting Feature | PANEL MOUNT | |
| Usage Level | Commercial grade |
| Product Attribute | Attribute Value | |
|---|---|---|
| Series | SS | |
| Packaging | Bulk | |
| Operating Temperature | -20°C~60°C | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3.5V~5.5V | |
| Output Type | Digital | |
| Sensor Type | PIR (Passive Infrared) | |
| Sensors/Transducers Type | INFRARED SENSOR,PYROELECTRIC | |
| RoHS Status | ROHS3 Compliant |
SS430 Application

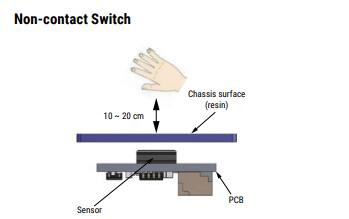

• Contact less switching
• Office automation equipment
• Home applicances
• Lighting
• Display products
• Air-conditioners
• TV
• PC monitors
• Rice cookers
• Smart toilets
How to use SS430
Detecting distance will vary by the chassis material used.
Detecting distance increased to a few meters by using a polyethene plate.

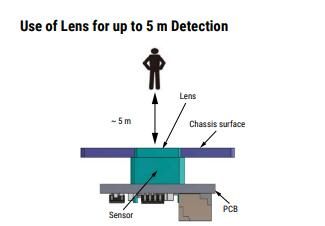

A lens is required to detect up to 5 m.
Detecting range variations will depend on the usage environment.
Note: Pyroelectric Infrared Sensors should be kept away from indirect and direct sunlight, the headlights of cars, wind, and exposure to strong vibration and strong shock. Do not use in water, alcohol ETA, corrosive gas or undersea breeze. Do not drop or apply any mechanical stress.

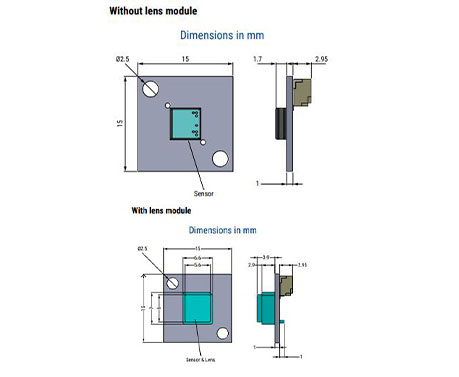

SS430 Dimensions
SS430 Manufacture
KEMET Corporation is a leading global supplier of electronic components. We offer our customers the broadest selection of capacitor technologies in the industry across all dielectrics, along with an expanding range of electromechanical devices, electromagnetic compatibility solutions and supercapacitors. Our vision is to be the preferred supplier of electronic component solutions for customers demanding the highest standards of quality, delivery and service.
Datasheet PDF
Download datasheets and manufacturer documentation for KEMET SS-430.
SS-430 Documents
SS-430 Documents
Download datasheets and manufacturer documentation for SS-430
Frequently Asked Questions
What is the SS series pyroelectric infrared sensors?
The SS series pyroelectric infrared sensors use the pyroelectric effect of ceramic by absorbing infrared rays emitted from the human body. This detects the natural infrared signature produced by humans. Also, these proximity sensors can detect infrared rays without using lenses. By adding a proprietary lens, the detection distance can be further improved. Three different colour lenses also enable some design flexibility. The SS series sensors are packaged in KEMET's module solution, are easy to install, and the drive already being included in the package makes them“plug and sense.”
What package is SS series available in?
The SS series sensors are available in KEMET's module solution, are easy to install, and the drive already being included in the package makes them “plug and sense.”
How to store pyroelectric infrared sensors?
Pyroelectric Infrared Sensors should be stored in normal working environments. Do not expose to high temperatures, high humidity, corrosive atmospheres, and avoid long-term storage. KEMET recommends that maximum storage temperature not exceed 25°C and maximum storage humidity not exceed 50% relative humidity. Atmospheres should be free of chlorine and sulfur-bearing compounds.
FAQ
What is the SS series pyroelectric infrared sensors?
The SS series pyroelectric infrared sensors use the pyroelectric effect of ceramic by absorbing infrared rays emitted from the human body. This detects the natural infrared signature produced by humans. Also, these proximity sensors can detect infrared rays without using lenses. By adding a proprietary lens, the detection distance can be further improved. Three different colour lenses also enable some design flexibility. The SS series sensors are packaged in KEMET's module solution, are easy to install, and the drive already being included in the package makes them“plug and sense.”
What package is SS series available in?
The SS series sensors are available in KEMET's module solution, are easy to install, and the drive already being included in the package makes them “plug and sense.”
How to store pyroelectric infrared sensors?
Pyroelectric Infrared Sensors should be stored in normal working environments. Do not expose to high temperatures, high humidity, corrosive atmospheres, and avoid long-term storage. KEMET recommends that maximum storage temperature not exceed 25°C and maximum storage humidity not exceed 50% relative humidity. Atmospheres should be free of chlorine and sulfur-bearing compounds.
