TRANS PNP 25V 1.5A TO-92 Hello, everyone. Transistor SS8550 is a commonly used ordinary triode. It is a low voltage, high current, small-signal PNP silicon transistor.
988
Sep 16, 2021
Leo Garden
transistor S8050 vs S8550
TRANS PNP 25V 1.5A TO-92
Hello, everyone. Transistor SS8550 is a commonly used ordinary triode. It is a low voltage, high current, small-signal PNP silicon transistor. The maximum collector current is 1.5 A. This article mainly introduces features, pinout, datasheet and other detailed information about ON Semiconductor SS8550.
SS8550DBU
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.32795 | $0.33 |
| 10+ | $0.30938 | $3.09 |
| 100+ | $0.29187 | $29.19 |
| 500+ | $0.27535 | $137.67 |
| 1000+ | $0.25976 | $259.76 |
Transistor SS8550 is a commonly used ordinary triode. It is a low voltage, high current, small-signal PNP silicon transistor. The maximum collector current is 1.5 A.
Symbol
Footprint
3D Model
● 2W Output Amplifier Of Portable Radios In Class B Push-Pull Operation
● Complimentary To SS8050
● TO-92 Plastic-Encapsulate Transistors
● Capable Of 1.0Watts(Tamb=25°C) Of Power Dissipation.
● Collector-Current 1.5A
● Collector-Base Voltage 40V
● Operating And Storage Junction Temperature Range: -55°C To +150°C
● Marking: SS8550
● Lead-Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
● Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 And MSL Rating 1
● Halogen Free Available Upon Request By Adding Suffix "-HF"
ON Semiconductor SS8550DBU technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS8550DBU.
ON Semiconductor SS8550DBU technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS8550DBU.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 7 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |

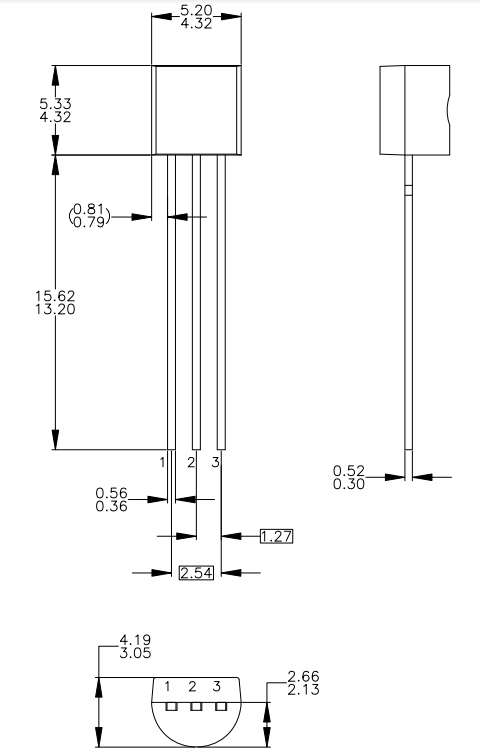

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Weight | 179mg | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 25V | |
| Collector-Emitter Saturation Voltage | -280mV | |
| Number of Elements | 1 Element | |
| hFEMin | 85 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Bulk | |
| Published | 2017 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Voltage - Rated DC | -25V | |
| Max Power Dissipation | 1W | |
| Terminal Position | BOTTOM | |
| Current Rating | -1.5A | |
| Frequency | 200MHz | |
| Base Part Number | SS8550 | |
| Element Configuration | Single | |
| Power Dissipation | 1W | |
| Transistor Application | AMPLIFIER | |
| Gain Bandwidth Product | 200MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 25V | |
| Max Collector Current | 1.5A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA 1V | |
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 80mA, 800mA | |
| Transition Frequency | 200MHz | |
| Collector Base Voltage (VCBO) | -40V | |
| Emitter Base Voltage (VEBO) | -6V | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| SS8550DBUTRANSISTORS | 1500mA, 25V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92 | Rochester Electronics LLC |
● Switch Application
● RF Application
ON Semiconductor is the premier supplier of high-performance silicon solutions for energy-efficient electronic products. The company's product line includes power and signal management, logic, discrete and custom devices to help customers solve their unique design challenges in automotive, communications, computers, consumer electronics, industrial, LED lighting, medical, military/aerospace and power applications.
Fast and cost-effective. The company operates a world-class, value-added supply chain and network including manufacturing plants, sales offices and design centers in key markets in North America, Europe and the Asia-Pacific region.
Download datasheets and manufacturer documentation for SS8550DBU
