CONN TERM SH CRIMP 28-32AWG TIN The SSH-003T-P0.2 from JST is a socket contact with crimp termination. This article will unlock its datasheet, feature, spec. and more details about SSH-003T-P0.2.

83

Mar 9, 2022

Bernie Yale

CONN TERM SH CRIMP 28-32AWG TIN

The SSH-003T-P0.2 from JST is a socket contact with crimp termination. This article will unlock its datasheet, feature, spec. and more details about SSH-003T-P0.2.

SSH-003T-P0.2

100In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.0283$0.03
500+ $0.02081$10.41
1000+ $0.01734$17.34
2000+ $0.01591$31.82
5000+ $0.01487$74.35
10000+ $0.01383$138.3
15000+ $0.01338$200.7
50000+ $0.01315$657.5
Unit Price:$0.0283
Subtotal: $0.03
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

SSH-003T-P0.2 Pinout

SSH-003T-P0.2 Pinout

SSH-003T-P0.2 Description

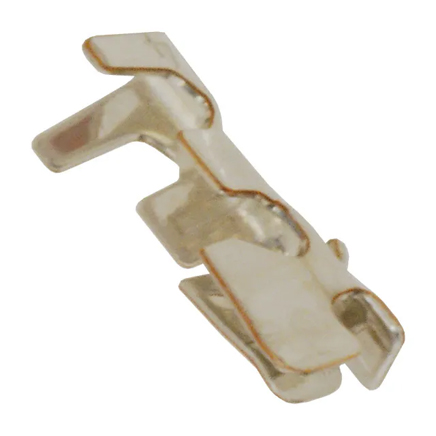

The SSH-003T-P0.2 from JST is a socket contact with crimp termination. It is a phosphor bronze contact with tin plating and used with SH series housing, which is the world's first 1.0 mm pitch crimp style connector.

SSH-003T-P0.2 Feature

  • The rated voltage is 50VAC/VDC and the rated current is 1A

  • Suitable for wire size from 32AWG to 28AWG

  • Compatible with the SR insulation displacement connectors

  • Housing lances



SSH-003T-P0.2 Layout

Specifications

SSH-003T-P0.2 Tech Specifications

JST Sales America Inc. SSH-003T-P0.2 technical specifications, attributes, parameters and parts with similar specifications to JST Sales America Inc. SSH-003T-P0.2.

Product Attribute Attribute Value
Factory Lead Time16 Weeks
Contact MaterialsBronze
Mounting StylesSTRAIGHT
PackagingTape & Reel (TR)
SeriesSH
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
ECCN CodeEAR99
GenderFemale
Product Attribute Attribute Value
HTS Code8536.90.40.00
MIL ConformanceNO
DIN ConformanceNO
IEC ConformanceNO
Current Rating1A
Contact FinishTin
Wire Gauge28-32 AWG
Connector Support TypeCONNECTOR ACCESSORY
Wire Gauge (Max)32 AWG
Wire Gauge (Min)28 AWG
Product Attribute Attribute Value
Wire/Cable Gauge28 AWG
Contact TerminationCrimp
Pin or SocketSocket
Assembly Item NameCONTACT
Cable Entry-Max0.8 inch
Cable Entry-Min0.4 inch
REACH SVHCNo SVHC
RoHS StatusRoHS Compliant
Lead FreeLead Free
