ST2001FX Transistor: Datasheet, Pinout, Application

TRANS NPN 600V 10A ISOWATT218FX The ST2001FX is a high voltage fast-switching NPN power transistor.

95

Aug 5, 2021

Anouk

TRANS NPN 600V 10A ISOWATT218FX

The ST2001FX is a high voltage fast-switching NPN power transistor. This article covers its datasheet, pinout, application and more details about ST2001FX.



ST2001FX

Inquiry
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

ST2001FX Pinout

ST2001FX Description

The ST2001FX is a high voltage fast-switching NPN power transistor. And it is manufactured using Diffused Collector technology for more stable operation Vs base drive circuit variations resulting in very low worst-case dissipation.



ST2001FX Features

  • New series, enhanced performance

  • Fully insulated package(U.L. compliant) for easy mounting

  • High voltage capability

  • High switching speed

  • Tigther hfe control

  • Improved ruggedness



Specifications

STMicroelectronics ST2001FX technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ST2001FX.

ST2001FX Tech Specifications

STMicroelectronics ST2001FX technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ST2001FX.

Product Attribute Attribute Value
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseISOWATT218FX
Transistor Element MaterialSILICON
Collector-Emitter Breakdown Voltage600V
Number of Elements1 Element
Operating Temperature150°C TJ
PackagingTube
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations3Terminations
Product Attribute Attribute Value
Voltage - Rated DC600V
Max Power Dissipation63W
Terminal PositionSINGLE
Peak Reflow Temperature (Cel)245
Current Rating10A
Time@Peak Reflow Temperature-Max (s)NOT SPECIFIED
Base Part NumberST2001
Pin Count3
JESD-30 CodeR-PSFM-T3
Qualification StatusNot Qualified
ConfigurationSINGLE
Product Attribute Attribute Value
Case ConnectionISOLATED
Transistor ApplicationSWITCHING
Polarity/Channel TypeNPN
Transistor TypeNPN
Collector Emitter Voltage (VCEO)1.5V
Max Collector Current10A
DC Current Gain (hFE) (Min) @ Ic, Vce5 @ 6A 5V
Current - Collector Cutoff (Max)1mA
Vce Saturation (Max) @ Ib, Ic1.5V @ 1.25A, 5A
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

ST2001FX Circuit

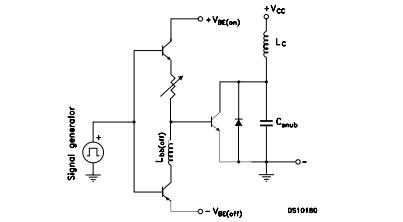

 The inductive load switching test circuit is given below

ST2001FX Application

  • Horizontal deflection for colour TVs over 21 inches and 15 inches monitors



ST2001FX Dimensions

ST2001FX Manufacturer

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.



Datasheet PDF

Download datasheets and manufacturer documentation for STMicroelectronics ST2001FX.

ST2001FX Documents

Download datasheets and manufacturer documentation for ST2001FX

Frequently Asked Questions

What is ST2001FX?
The ST2001FX is a high voltage fast-switching NPN power transistor manufactured using Diffused Collector technology for more stable operation Vs base drive circuit variations resulting in very low worst-case dissipation.
How many pins do ST2001FX have?
It has 3 pins.
What package is ST2001FX available in?
ISOWATT218FX, 3 PIN.
FAQ
What is ST2001FX?
The ST2001FX is a high voltage fast-switching NPN power transistor manufactured using Diffused Collector technology for more stable operation Vs base drive circuit variations resulting in very low worst-case dissipation.
How many pins do ST2001FX have?
It has 3 pins.
What package is ST2001FX available in?
ISOWATT218FX, 3 PIN.
