Sell ST7FLITE09Y0M6 of STMicroelectronics
Embedded - Microcontrollers A/D 5x8b 16-SOIC (0.154, 3.90mm Width) 1.5kB LVD, POR, PWM, WDT -40°C~85°C TA 2.4V~5.5V ST7 MICROCONTROLLER ST7FL 8MHz MCU 8-bit ST7 ST7 CISC 1.5KB Flash 2.5V/3.3V/5V 16-Pin SO Tube
ST7FLITE09Y0M6 is MCU 8-bit ST7 CISC 1.5KB Flash microcontroller. This article is going to introduce pinout, applications, features, and more details about st7flite09y0m6.
ST7FLITE09Y0M6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.33301 | $1.33 |
| 10+ | $1.25756 | $12.58 |
| 100+ | $1.18638 | $118.64 |
| 500+ | $1.11922 | $559.61 |
| 1000+ | $1.05587 | $1055.87 |
ST7FLITE09Y0M6 is a member of the ST7 microcontroller family. All ST7 devices are based on a common industry-standard 8-bit core, featuring an enhanced instruction set. The ST7LITE0x and ST7SUPERLITE feature FLASH memory with byte-by-byte In-Circuit Programming (ICP) and In-Application Programming (IAP) capability.

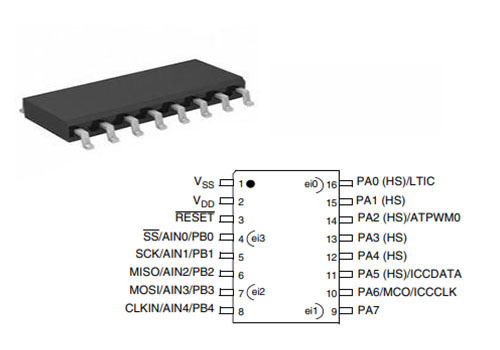

ST7FLITE09Y0M6 Symbol

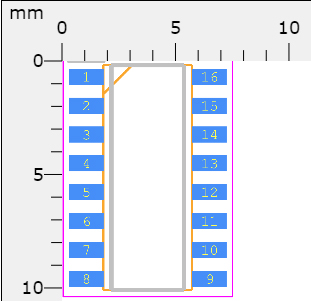

ST7FLITE09Y0M6 Footprint

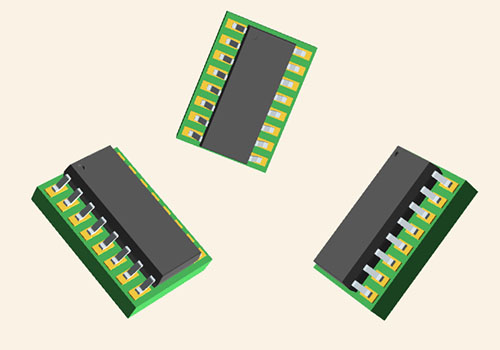

ST7FLITE09Y0M6 3D Model
STMicroelectronics ST7FLITE09Y0M6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ST7FLITE09Y0M6.
STMicroelectronics ST7FLITE09Y0M6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ST7FLITE09Y0M6.

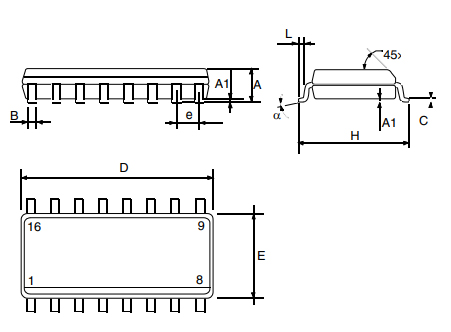

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | NRND (Last Updated: 7 months ago) | |
| Factory Lead Time | 14 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 16Pins | |
| Data Converters | A/D 5x8b | |
| Number of I/Os | 13I/Os | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Series | ST7 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 5V | |
| Frequency | 8MHz | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | ST7FL | |
| Pin Count | 16 | |
| Supply Voltage-Min (Vsup) | 3.3V | |
| Memory Size | 1.5kB | |
| Oscillator Type | Internal | |
| RAM Size | 128 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.4V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER | |
| Number of Bits | 8Bits | |
| Peripherals | LVD, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 8-Bit | |
| Program Memory Size | 1.5KB 1.5K x 8 | |
| Connectivity | SPI | |
| Supply Current-Max | 9mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bit Size | 8 | |
| Access Time | 8 μs | |
| Has ADC | YES | |
| DMA Channels | NO | |
| Data Bus Width | 8b | |
| PWM Channels | YES | |
| Number of Timers/Counters | 2Timers/Counters | |
| Address Bus Width | 8b | |
| EEPROM Size | 128 x 8 | |
| Number of ADC Channels | 5ADC Channels | |
| Number of I2C Channels | 1I2C Channel | |
| Height | 1.5mm | |
| Length | 10mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Memories 1Kor 1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP). 10 K write/erase cycles guaranteed, data retention: 20 years at 55˚C. 128 bytes RAM. 128 bytes data EEPROM with read-out protection. 300K write/erase cycles guaranteed, data retention: 20 years at 55˚C.
Clock, Reset and Supply Management 3-level low voltage supervisor (LVD) and auxiliary voltage detector (AVD) for safe power- on/off procedures Clock sources: internal 1MHz RC 1% oscillator or external clock PLL x4 or x8 for 4 or 8 MHz internal clock Four Power Saving Modes: Halt, Active-Halt, Wait and Slow
Interrupt Management 10 interrupt vectors plus TRAP and RESET 4 external interrupt lines (on 4 vectors)
I/O Ports 13 multifunctional bidirectional I/O lines 9 alternate function lines 6 high sink outputs
2 Timers One 8-bit Lite Timer (LT) with Prescaler including watchdog, 1 real-time base, and 1 input capture. One 12-bit Auto-reload Timer (AT) with output compare function and PWM
1 Communication Interface SPI synchronous serial interface
A/D Converter 8-bit resolution for 0 to VDD Fixed gain Op-amp for 11-bit resolution in 0 to 250 mV range (@ 5V VDD) 5 input channels.
Instruction Set 8-bit data manipulation 63 basic instructions with illegal opcode detection 17 main addressing modes 8 x 8 unsigned multiply instruction.
Development Tools Full hardware/software development package.

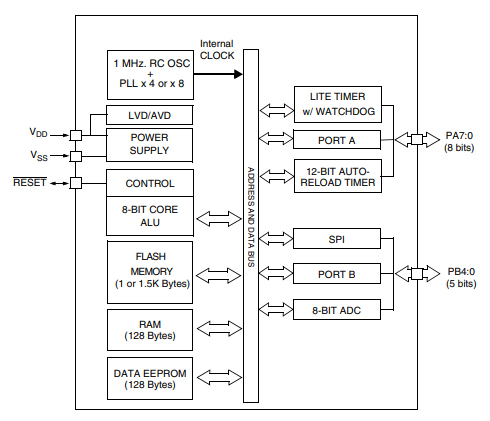

ST7FLITE09Y0M6 Block Diagram
Used in ARDUINO UNO, ARDUINO NANO and ARDUINO MICRO boards.
Industrial control systems.
SMPS and Power Regulation systems.
Digital data processing.
Analog signal measuring and manipulations.
Embedded systems like coffee machine, vending machine.
Motor control systems.
Display units.
Peripheral Interface system.
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for ST7FLITE09Y0M6
