STA8088EXG RF RX GALILEO 1.575GHZ 169TFBGA[FAQ]: Datasheet, Block Diagram, and Features

The STA8088EXG  is a single-die independent positioning receiver IC that can function with several constellations  (GPS, Galileo, Glonass, and QZSS  ). STA8088EXG  delivers a highly flexible and cost-effective solution for hand-held and telematics applications by integrating the ARM946   microcontroller core with a large number of peripherals/ interfaces.

The device is appropriate for sensor-based and sensor-less ST Dead Reckoning technologies that improve location accuracy even in areas where GNSS  signals are not available, such as tunnels and indoor parking.

• STMicroelectronics® 3rd generation positioning receiver with 32 trackings channels  and 2 fast acquisition channels  compatible with GPS, Galileo, Glonass, and QZSS  systems

• Embedded RF  front-end with built-in LNA

• -162dBm indoor sensitivity (tracking mode)

• Fast TTFF  < 1 s in hot start and 35 s in coldstart

• Support of ST-AGPSTM Multimode AssistedGPS (extended ephemeris solution)

• High-performance ARM946 MCU  (up to208 MHz)

• 256 Kbyte embedded TCM  /SRAM

• FSMC external memory interface (NAND, NORand SRAM  )

• External SQI Flash interface

• One 16-bit Extended Function Timer (EFT)with input capture/ output compare and PWM.

• Four 32-bit free-running timers/ counters

• Real-Time Clock (RTC) circuit

• 3 UARTs  (one full for modem support)

• 1 I2C master/slave interface

• 1 Synchronous Serial Port (SSP, Motorola-SPIsupported)

• USB2.0 dual role full speed (12 MHz) with integrated physical layer transceiver

• 2 Secure-Digital Multimedia Memory CardInterfaces (SDMMC)

• 2 Controller Area Network (CAN)

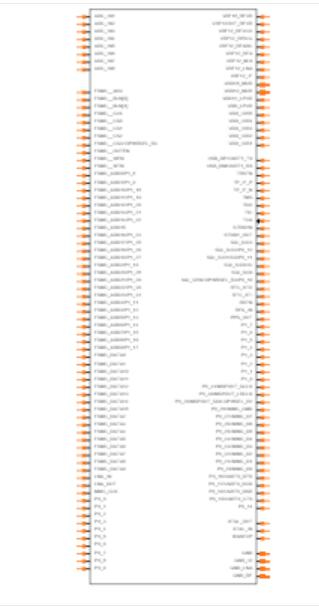

STA8088EXG Symbol

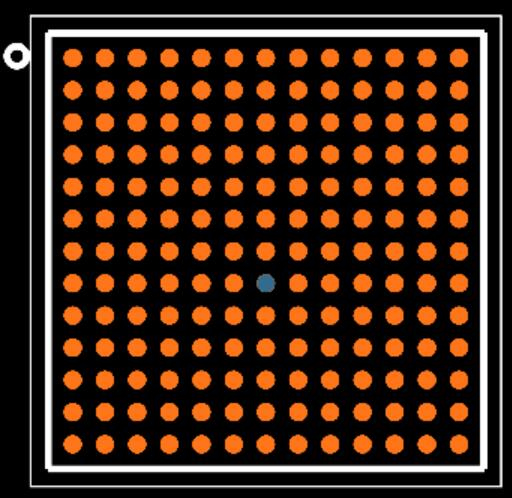

STA8088EXG Footprint

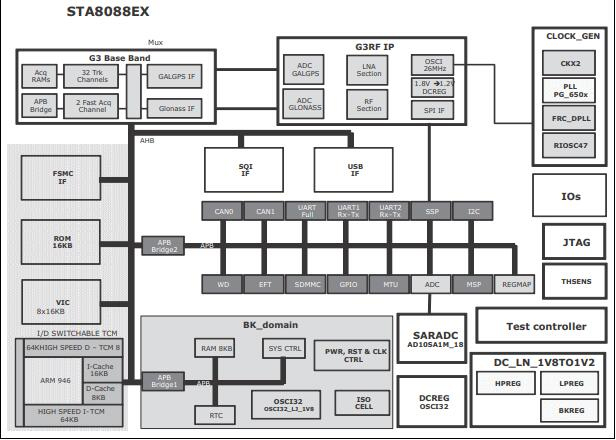

STA8088EXG Block Diagram

STMicroelectronics STA8088EXG technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STA8088EXG.

STMicroelectronics is a leading global independent semiconductor firm that develops and delivers semiconductor solutions for a wide range of microelectronics applications. The Company is at the forefront of System-on-Chip (SoC) technology, and its products play a major role in supporting today's convergence trends, thanks to an unparalleled mix of silicon and system expertise, manufacturing capabilities, Intellectual Property (IP) portfolio, and strategic partners.
