This article will unlock more details about STL100N8F7, N-channel Power MOSFET.
STL100N8F7 N-channel Power MOSFET: Datasheet, Pinout, Test Circuit
MOSFET N-CH 80V 100A POWERFLAT This article will unlock more details about STL100N8F7, N-channel Power MOSFET.
83
Aug 20, 2021
Megan Abe
STL100N8F7
11382In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.59954 | $2.6 |
| 10+ | $2.4524 | $24.52 |
| 100+ | $2.31358 | $231.36 |
| 500+ | $2.18263 | $1091.32 |
| 1000+ | $2.05908 | $2059.08 |
Unit Price:$2.59954
Subtotal: $2.6
Quick Links

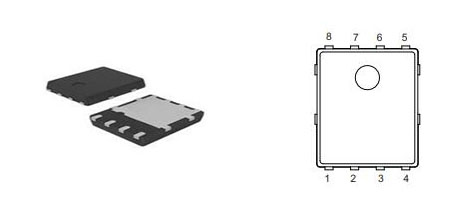

STL100N8F7 Pinout
STL100N8F7 CAD Model

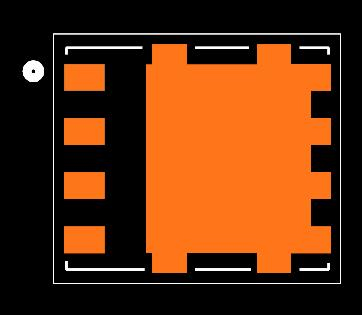

Footprint

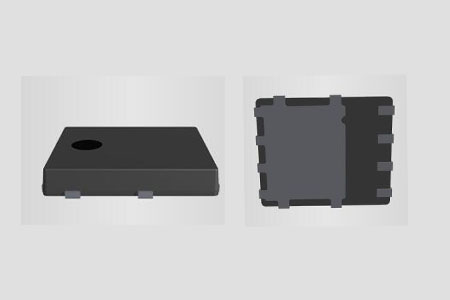

3D Model
STL100N8F7 Description
The STL100N8F7 is an N-channel Power MOSFET developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg. This revolutionary Power MOSFET associates a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charges. It is, therefore, suitable for the most demanding high-efficiency converters.
Specifications
STMicroelectronics STL100N8F7 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STL100N8F7.
STL100N8F7 Tech Specifications
STL100N8F7 Tech Specifications
STMicroelectronics STL100N8F7 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STL100N8F7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 8 months ago) | |
| Package / Case | 8-PowerVDFN | |
| Mounting Type | Surface Mount | |
| Mount | Surface Mount | |
| Number of Pins | 8Pins | |
| Current - Continuous Drain (Id) @ 25℃ | 100A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Power Dissipation (Max) | 4.8W Ta 120W Tc | |
| Series | STripFET™ | |
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Temperature | -55°C~175°C TJ | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | STL100 |
| Product Attribute | Attribute Value | |
|---|---|---|
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 6.1m Ω @ 10A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 3435pF @ 40V | |
| Gate Charge (Qg) (Max) @ Vgs | 46.8nC @ 10V | |
| Drain to Source Voltage (Vdss) | 80V | |
| Vgs (Max) | ±20V | |
| Continuous Drain Current (ID) | 100A | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
STL100N8F7 Features
• Extremely low gate charge
• Lower RDS(on) x area vs previous generation
• Low gate input resistance
• 100% avalanche tested
• Zener-protected

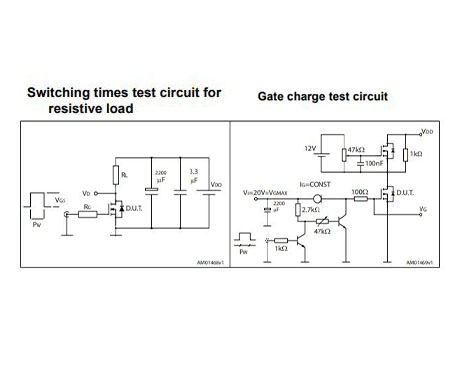

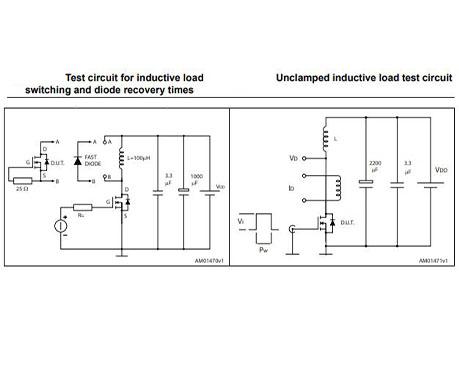

STL100N8F7 Test Circuit

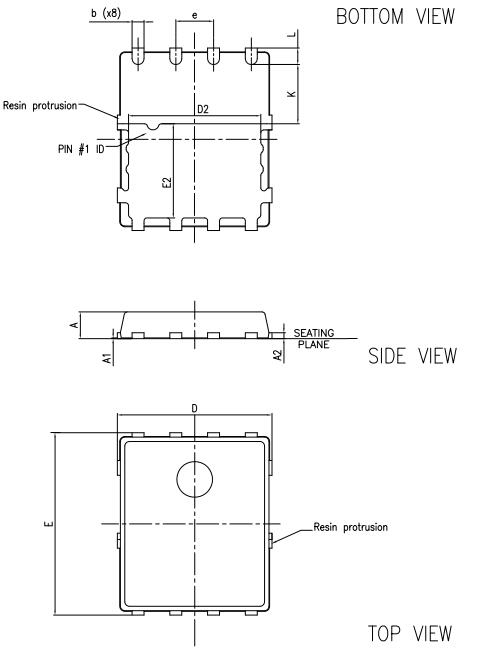

STL100N8F7 Package
STL100N8F7 Manufacturer
Everywhere microelectronics make a positive contribution to people's lives, STMicroelectronics is there. By getting more from technology to get more from life, ST stands for life. augmented.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics STL100N8F7.
STL100N8F7 Documents
STL100N8F7 Documents
Download datasheets and manufacturer documentation for STL100N8F7
Simulation Models
STL100N8F7 Spice Model
Frequently Asked Questions
What operating temperature range is STL100N8F7？
Its operating temperature range is -55°C ~ 175°C (TJ).
How many pins does STL100N8F7 have?
8 pins.
What is difference between MOSFET and power mosfet?
Power MOSFET is a type of MOSFET which is specially meant to handle high levels of power. These exhibit high switching speed and can work much better in comparison with other normal MOSFETs in the case of low voltage levels. However, its operating principle is similar to that of any other general MOSFET.
FAQ
What operating temperature range is STL100N8F7？
Its operating temperature range is -55°C ~ 175°C (TJ).
How many pins does STL100N8F7 have?
8 pins.
What is difference between MOSFET and power mosfet?
Power MOSFET is a type of MOSFET which is specially meant to handle high levels of power. These exhibit high switching speed and can work much better in comparison with other normal MOSFETs in the case of low voltage levels. However, its operating principle is similar to that of any other general MOSFET.
