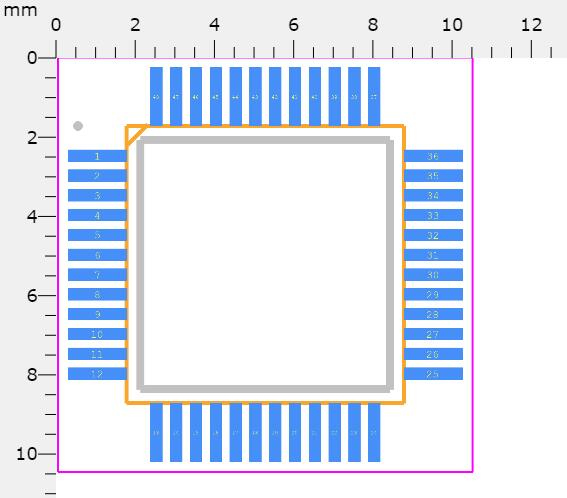

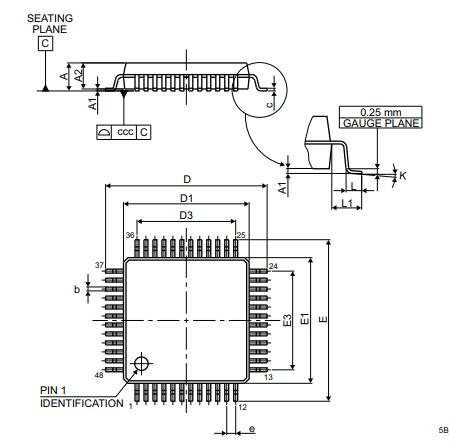

Footprint

Footprint

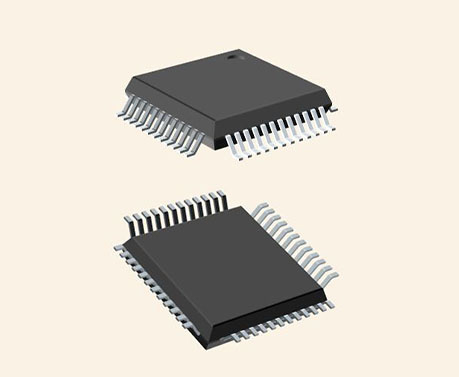

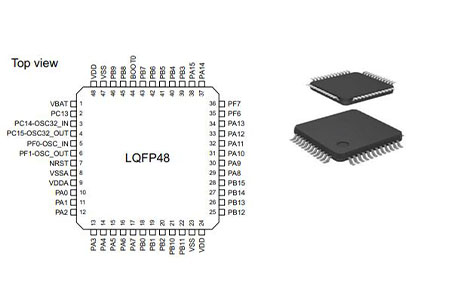

3D Model

3D Model

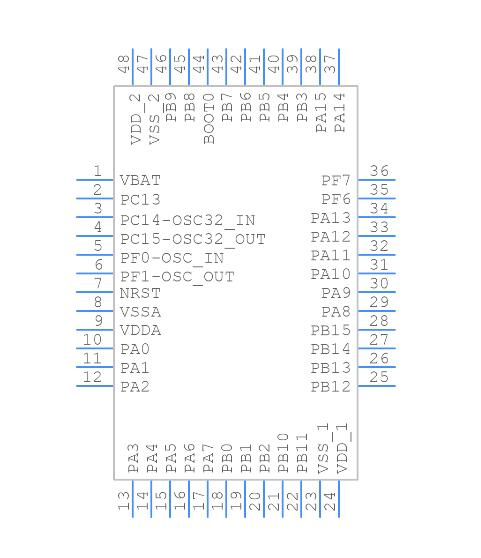

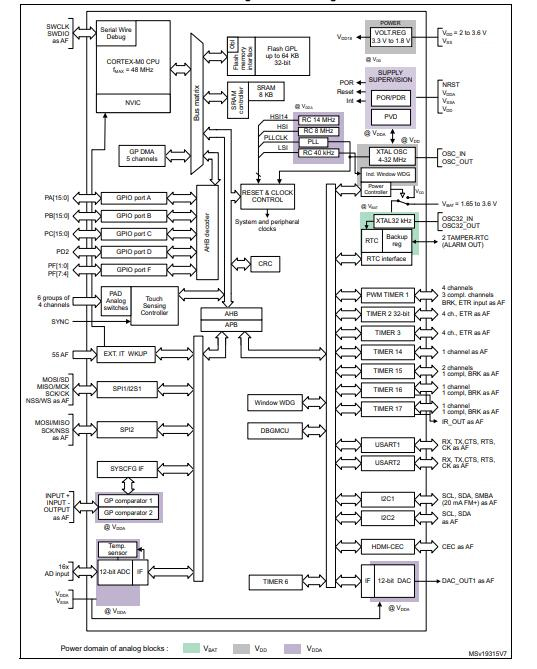

The STM32F051C6T7 microcontroller incorporates the high-performance ARM® Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os.

It operates in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

STMicroelectronics STM32F051C6T7 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F051C6T7.

· Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz

· Memories

· 16 to 64 Kbytes of Flash memory

· 8 Kbytes of SRAM with HW parity checking

· CRC calculation unit

· Reset and power management

· Voltage range: 2.0 V to 3.6 V

· Power-on/Power down reset (POR/PDR)

· Programmable voltage detector (PVD)

· Low power modes: Sleep, Stop, Standby

· VBATsupply for RTC and backup registers

· Clock management

· 4 to 32 MHz crystal oscillator

· 32 kHz oscillator for RTC with calibration

· Internal 8 MHz RC with x6 PLL option

· Internal 40 kHz RC oscillator

· Up to 55 fast I/Os

· All mappable on external interrupt vectors

· Up to 36 I/Os with 5 V tolerant capability

· 5-channel DMA controller

· 1 x 12-bit, 1.0 μs ADC (up to 16 channels)

· Conversion range: 0 to 3.6 V

· Separate analogue supply from 2.4 up to 3.6

· One 12-bit D/A converter

· Two fast low-power analogue comparators with programmable input and output

· Up to 18 capacitive sensing channels supporting touch key, linear and rotary touch sensors

· Up to 11 timers

· One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop

· One 32-bit and one 16-bit timer, with up to 4 IC/OC, usable for IR control decoding

· One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop

· Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control

· One 16-bit timer with 1 IC/OC

· Independent and system watchdog timers

· SysTick timer: 24-bit down counter

· One 16-bit basic timer to drive the DAC

· Calendar RTC with alarm and periodic wakeup from Stop/Standby

· Communication interfaces

· Up to 2 I²C interfaces; one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus and wakeup from STOP

· Up to two USARTs supporting master synchronous SPI and modem control; one with ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature

· Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame, 1 with I²S interface multiplexed

· HDMI CEC interface, wakeup on header reception

· Serial wire debug (SWD)

· 96-bit unique ID

· All packages ECOPACK® 2

• Application control and user interfaces

• Hand-held equipment

• A/V receivers and digital TV

• PC peripherals

• Gaming and GPS platforms

• Industrial applications

• PLCs

• Inverters

• Printers

• Scanners

• Alarm systems

• Video intercoms

• HVACs
