Reliable STM32F051R8T6 Supplier and STM32F051R8T6 Distributor in China - Rantle East Electronic
Embedded - Microcontrollers A/D 19x12b; D/A 1x12b 64-LQFP 64kB DMA, I2S, POR, PWM, WDT -40°C~85°C TA 2V~3.6V STM32F0 MICROCONTROLLER, RISC STM32F05 48MHz ARM Microcontrollers - MCU 32-Bit ARM Cortex M0 64 Kbytes 2.0 - 3.6V
STM32F051R8T6 is an ARM microcontroller. This article is going to introduce pinout, applications, features, and more details about STM32F051K8U6TR.
STM32F051R8T6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.63577 | $3.64 |
| 10+ | $3.42997 | $34.3 |
| 100+ | $3.23582 | $323.58 |
| 500+ | $3.05266 | $1526.33 |
| 1000+ | $2.87987 | $2879.87 |
The STM32F051R8T6 microcontrollers incorporate the high-performance ARM® Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, one I2S, one HDMI CEC, and up to two USARTs), one 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer, and an advanced-control PWM timer.
STM32F051R8T6 Symbol

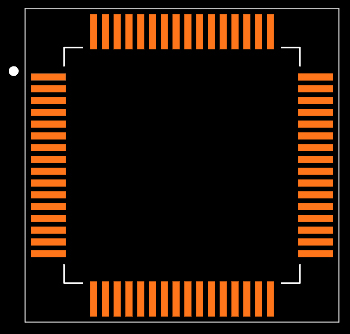

STM32F051R8T6 Footprint
STMicroelectronics STM32F051R8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F051R8T6.
STMicroelectronics STM32F051R8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F051R8T6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 10 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 64-LQFP | |
| Contact Plating | Gold, Tin | |
| Surface Mount | YES | |
| Number of Pins | 64Pins | |
| Number of I/Os | 55I/Os | |
| Data Converters | A/D 19x12b; D/A 1x12b | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F0 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 64Terminations | |
| Terminal Finish | Tin (Sn) | |
| Max Power Dissipation | 444mW | |
| Terminal Position | QUAD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 48MHz | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | STM32F05 | |
| Pin Count | 64 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Interface | HDMI, I2C, I2S, IrDA, LIN, SPI, UART, USART | |
| Memory Size | 64kB | |
| Oscillator Type | Internal | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M0 | |
| Peripherals | DMA, I2S, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Program Memory Size | 64KB 64K x 8 | |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b | |
| Number of Timers/Counters | 8Timers/Counters | |
| Core Architecture | ARM | |
| CPU Family | CORTEX-M0 | |
| Number of ADC Channels | 19ADC Channels | |
| Number of PWM Channels | 1PWM Channel | |
| Number of I2C Channels | 2I2C Channels | |
| Length | 10.2mm | |
| Height | 1.45mm | |
| Width | 10.2mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
•Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
• Memories – 16 to 64 Kbytes of Flash memory – 8 Kbytes of SRAM with HW parity checking
• CRC calculation unit
• Reset and power management – Digital and I/O supply: VDD = 2.0 V to 3.6 V – Analog supply: VDDA = from VDD to 3.6 V – Power-on/Power down reset (POR/PDR) – Programmable voltage detector (PVD) – Low power modes: Sleep, Stop, Standby – VBAT supply for RTC and backup registers
• Clock management – 4 to 32 MHz crystal oscillator – 32 kHz oscillator for RTC with calibration – Internal 8 MHz RC with x6 PLL option – Internal 40 kHz RC oscillator
• Up to 55 fast I/Os – All mappable on external interrupt vectors – Up to 36 I/Os with 5 V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 µs ADC (up to 16 channels) – Conversion range: 0 to 3.6 V – Separate analog supply from 2.4 up to 3.6
• One 12-bit DAC channel
• Two fast low-power analog comparators with programmable input and output
• Up to 18 capacitive sensing channels supporting touch key, linear, and rotary touch sensors
• Up to 11 timers – One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop – One 32-bit and one 16-bit timer, with up to 4 IC/OC, usable for IR control decoding – One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop – Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control – One 16-bit timer with 1 IC/OC – Independent and system watchdog timers – SysTick timer: 24-bit down counter – One 16-bit basic timer to drive the DAC
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• Communication interfaces – Up to two I2C interfaces, one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, and wakeup from Stop mode – Up to two USARTs supporting master synchronous SPI and modem control, one with ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature – Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frame, one with I2S interface multiplexed
• HDMI CEC interface, wakeup on header reception
• Serial wire debug (SWD)
• 96-bit unique ID
• All packages ECOPACK®2

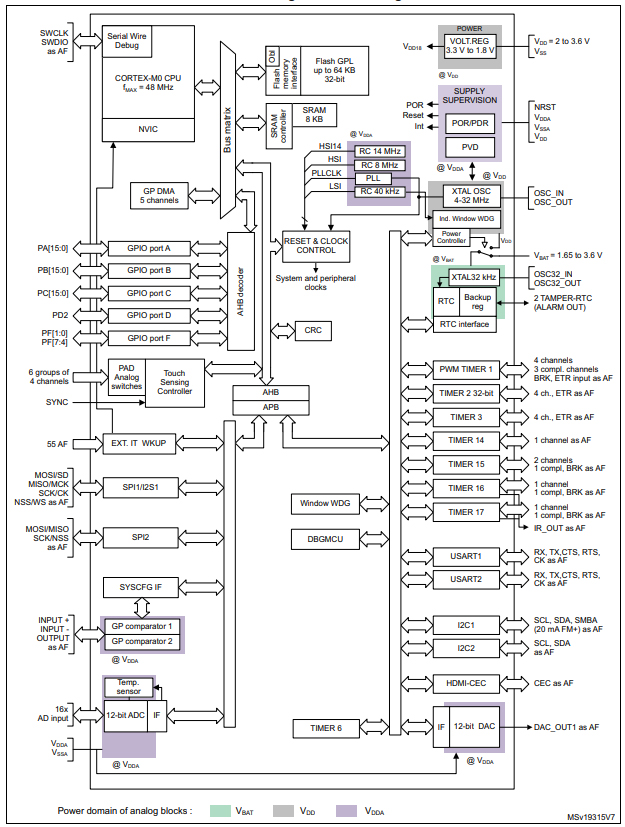

STM32F051R8T6 Block Diagram
STM32F051R8T6 microcontrollers operate in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
These features make the STM32F051xx microcontrollers suitable for a wide range of applications.
Application control and user interfaces
Hand-held equipment
A/V receivers and digital TV
PC peripherals
Gaming and GPS platforms
Industrial applications
PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

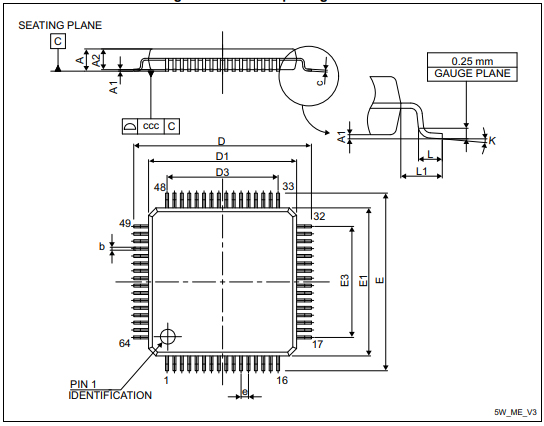

STM32F051R8T6 Package
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STM32F051R8T6
