STM32F070CBT6 is a 32-bit ARM® Cortex®-M4 series Microcontroller. This article will go into more detail about STM32F070CBT6, including pinout, CAD model, block diagram, features, and so on.

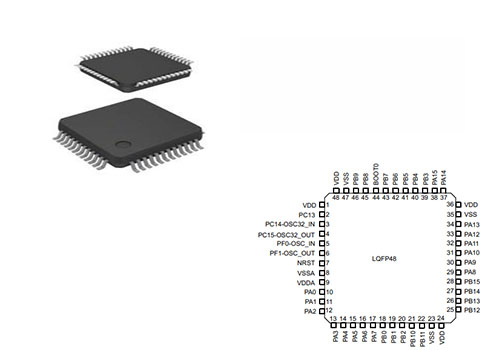

STM32F070CBT6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.79502 | $2.8 |
| 10+ | $2.63681 | $26.37 |
| 100+ | $2.48756 | $248.76 |
| 500+ | $2.34675 | $1173.38 |
| 1000+ | $2.21392 | $2213.92 |
Descriptions of STMicroelectronics STM32F070CBT6 provided by its distributors.
Mainstream ARM Cortex-M0 Value line MCU with 128 Kbytes Flash, 48 MHz CPU, USB
STMicroelectronics
MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V 48-Pin LQFP Frame | IC MCU 32BIT 128KB FLASH 48LQFP
Win Source Electronics
MCU, ARM CORTEX-M0, 48MHZ, LQFP-48
element14 APAC
STMicroelectronics STM32F070CBT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F070CBT6.
STMicroelectronics STM32F070CBT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F070CBT6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 10 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-LQFP | |
| Number of Pins | 48Pins | |
| Weight | 181.692094mg | |
| Data Converters | A/D 12x12b | |
| Number of I/Os | 37I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F0 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 48Terminations | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 364mW | |
| Terminal Position | QUAD | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 48MHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | STM32F07 | |
| Operating Supply Voltage | 3.3V | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Interface | I2C, SPI, UART, USART, USB | |
| Memory Size | 128kB | |
| Oscillator Type | Internal | |
| RAM Size | 16K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.4V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M0 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peripherals | DMA, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit | |
| Program Memory Size | 128KB 128K x 8 | |
| Connectivity | I2C, SPI, UART/USART, USB | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b | |
| PWM Channels | YES | |
| Number of Timers/Counters | 8Timers/Counters | |
| Core Architecture | ARM | |
| On Chip Program ROM Width | 8 | |
| Number of ADC Channels | 1ADC Channel | |
| Length | 7mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
•Core: ARM ® 32-bit Cortex ®-M0 CPU, frequency up to 48 MHz
• Memories – 32 to 128 Kbytes of Flash memory – 6 to 16 Kbytes of SRAM with HW parity • CRC calculation unit
• Reset and power management – Digital & I/Os supply: VDD = 2.4 V to 3.6 V – Analog supply: VDD A = VDD to 3.6 V – Power-on/Power down reset (POR/PDR) – Low power modes: Sleep, Stop, Standby
• Clock management – 4 to 32 MHz crystal oscillator – 32 kHz oscillator for RTC with calibration – Internal 8 MHz RC with x6 PLL option – Internal 40 kHz RC oscillator
• Up to 51 fast I/Os – All mappable on external interrupt vectors – Up to 51 I/Os with 5V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 µs ADC (up to 16 channels) – Conversion range: 0 to 3.6 V – Separate analog supply: 2.4 V to 3.6 V
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• 11 timers – One 16-bit advanced-control timer for six-channel PWM output – Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding – Independent and system watchdog timers – SysTick timer
• Communication interfaces – Up to two I2C interfaces – Fast Mode Plus (1 Mbit/s) support, with 20 mA current sink – SMBus/PMBus support (on single I/F) – Up to four USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection – Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames – USB 2.0 full-speed interface with BCD and LPM support
• Serial wire debug (SWD)
• All packages ECOPACK®2
STM32F070CBT6 Block Diagram
STM32F070CBT6 microcontrollers are suitable for a wide range of applications
Application control and user interfaces
Handheld equipment
A/V receivers and digital TV
PC peripherals, gaming, and GPS platforms
Industrial applications
PLCs
Inverters
Printers, scanners, alarm systems, video intercoms, and HVACs.

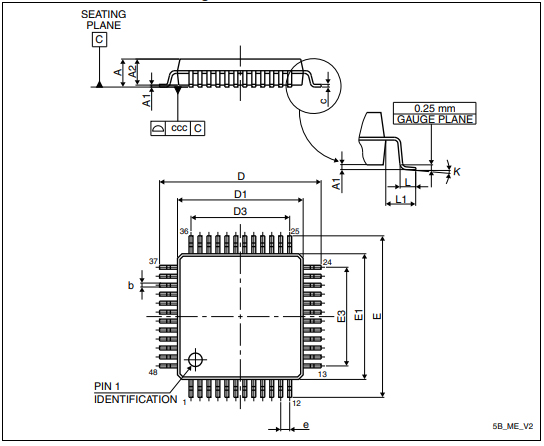

STM32F070CBT6 Package
