STM32F072C8T6 Microcontroller: 48MHz, 48-LQFP, Pinout and Datasheet

The STM32F072C8T6 incorporates the high-performance Arm®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 128 Kbytes of Flash memory and 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The STM32F072C8T6 offers standard communication interfaces (two I2Cs, two SPI/I2S, one HDMI CEC, and four USARTs), one USB Full-speed device (crystal-less), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer, and an advanced-control PWM timer.

The STM32F072C8T6 operates in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

These features make the STM32F072C8T6 suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers, digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

STM32F072C8T6 Symbol

STM32F072C8T6 Footprint

STM32F072C8T6 3D Model

STM32F072C8T6 Block Diagram

STM32F072C8T6 Power Supply Scheme

STMicroelectronics STM32F072C8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F072C8T6.

• Core: Arm® 32-bit Cortex®-M0 CPU, frequency

up to 48 MHz

• Memories

– 64 to 128 Kbytes of Flash memory

– 16 Kbytes of SRAM with HW parity

• CRC calculation unit

• Reset and power management

– Digital and I/O supply: VDD = 2.0 V to 3.6 V

– Analog supply: VDDA = VDD to 3.6 V

– Selected I/Os: VDDIO2 = 1.65 V to 3.6 V

– Power-on/Power down reset (POR/PDR)

– Programmable voltage detector (PVD)

– Low power modes: Sleep, Stop, Standby

– VBAT supply for RTC and backup registers

• Clock management

– 4 to 32 MHz crystal oscillator

– 32 kHz oscillator for RTC with calibration

– Internal 8 MHz RC with x6 PLL option

– Internal 40 kHz RC oscillator

– Internal 48 MHz oscillator with automatic

trimming based on ext. synchronization

• Up to 87 fast I/Os

– All mappable on external interrupt vectors

– Up to 68 I/Os with 5V tolerant capability

and 19 with independent supply VDDIO2

• 7-channel DMA controller

• One 12-bit, 1.0 µs ADC (up to 16 channels)

– Conversion range: 0 to 3.6 V

– Separate analog supply: 2.4 V to 3.6 V

• One 12-bit D/A converter (with 2 channels)

• 2 fast low-power analog comparators with

programmable input and output

• Up to 24 capacitive sensing channels for

touch key, linear, and rotary touch sensors

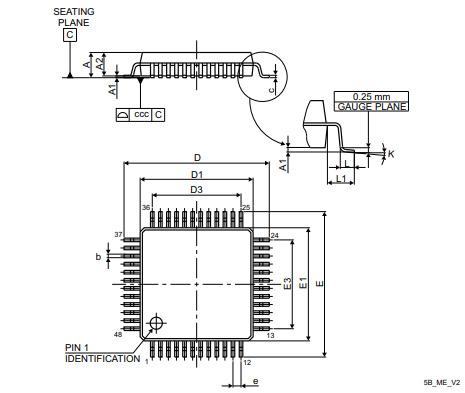

STM32F072C8T6 Package Dimension

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
