STM32F091CC Microcontroller: Features, Pinout, and Datasheet

The following figure is the diagram of STM32F091CC pinout.

Pinout

The followings are STM32F091CC Symbol, Footprint, and 3D Model.

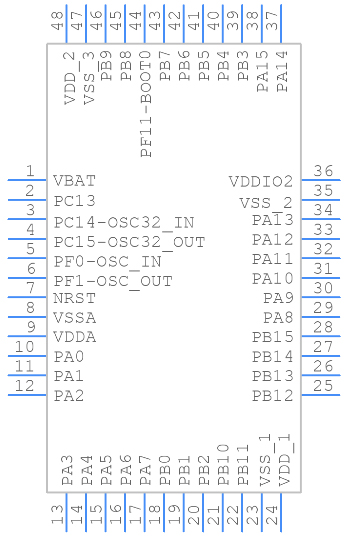

PCB Symbol

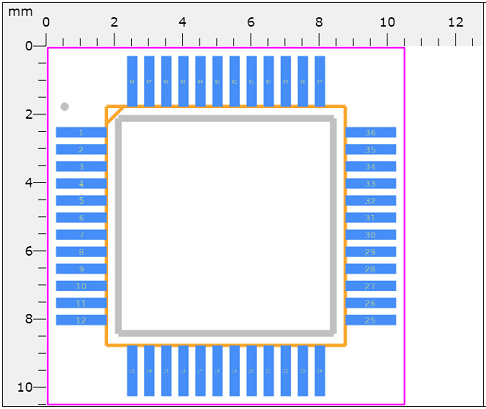

PCB Footprint

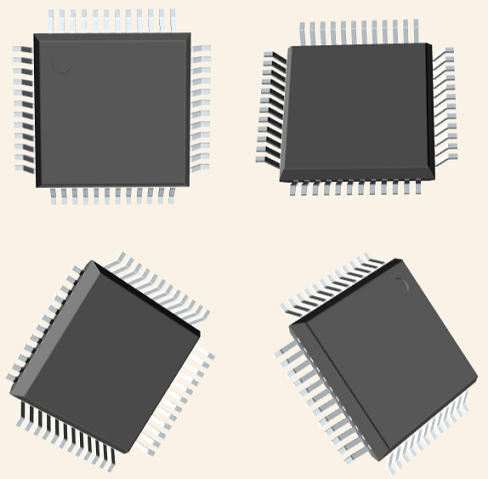

3D Model

The STM32F091CC microcontrollers incorporate the high-performance ARM^® Cortex^®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces (two I²Cs, two SPIs/one I²S, one HDMI CEC and up to eight USARTs), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

TheSTM32F091CC microcontrollers operate in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F091CC microcontrollers include devices in seven different packages ranging from 48 pins to 100 pins with a die form also available upon request. Depending on the device chosen, different sets of peripherals are included. These features make the STM32F091CC microcontrollers suitable for a wide range of applications.

This article provides you with a basic overview of the STM32F091CC Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what STM32F091CC is.

● Core: ARM^® 32-bit Cortex^®-M0 CPU, frequency up to 48 MHz

● Memories

   ◆ 128 to 256 Kbytes of Flash memory

   ◆ 32 Kbytes of SRAM with HW parity

● CRC calculation unit

● Reset and power management

   ◆ Digital & I/Os supply: V_DD = 2.0 V to 3.6 V

   ◆ Analog supply: V_DDA = V_DD to 3.6 V

   ◆ Power-on/Power down reset (POR/PDR)

   ◆ Programmable voltage detector (PVD)

   ◆ Low power modes: Sleep, Stop, Standby

   ◆ V_BAT supply for RTC and backup registers

● Clock management

   ◆ 4 to 32 MHz crystal oscillator

   ◆ 32 kHz oscillator for RTC with calibration

   ◆ Internal 8 MHz RC with x6 PLL option

   ◆ Internal 40 kHz RC oscillator

   ◆ Internal 48 MHz oscillator with automatic trimming based on ext. synchronization

● Up to 88 fast I/Os

   ◆ All mappable on external interrupt vectors

   ◆ Up to 69 I/Os with 5V-tolerant capability and 19 with independent supply V_DDIO2

● 12-channel DMA controller

● One 12-bit, 1.0 µs ADC (up to 16 chan nels)

   ◆ Conversion range: 0 to 3.6 V

   ◆ Separate analog supply: 2.4 V to 3.6 V

● One 12-bit D/A converter (with 2 channels)

● Two fast low-power analog comparators with programmable input and output

● Up to 24 capacitive sensing channels for touchkey, linear and rotary touch sensors

● Calendar RTC with alarm and periodic wakeup from Stop/Standby

● 12 timers

   ◆ One 16-bit advanced-control timer for 6 channel PWM output

   ◆ One 32-bit and seven 16-bit timers, with up to 4 IC/OC, OCN, usable for IR control decoding or DAC control

   ◆ Independent and system watchdog timers

   ◆ SysTick timer

● Communication interfaces

   ◆ Two I²C interfaces supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink, one supporting SMBus/PMBus and        wakeup

   ◆ Up to eight USARTs supporting master synchronous SPI and modem control, three with ISO7816 interface, LIN, IrDA,        auto baud rate detection and wakeup feature

   ◆ Two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, and with I²S interface multiplexed

   ◆ CAN interface

● HDMI CEC wakeup on header reception

● Serial wire debug (SWD)

● 96-bit unique ID

● All packages ECOPACK^®2

STMicroelectronics STM32F091CCT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F091CCT6.

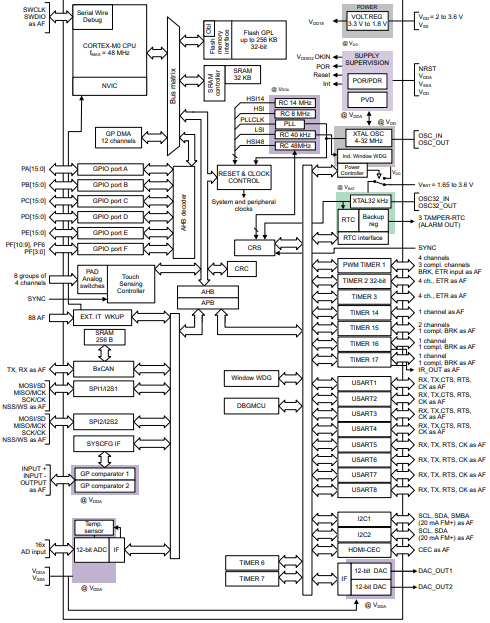

The following is the Block Diagram of STM32F091CC.

Block diagram

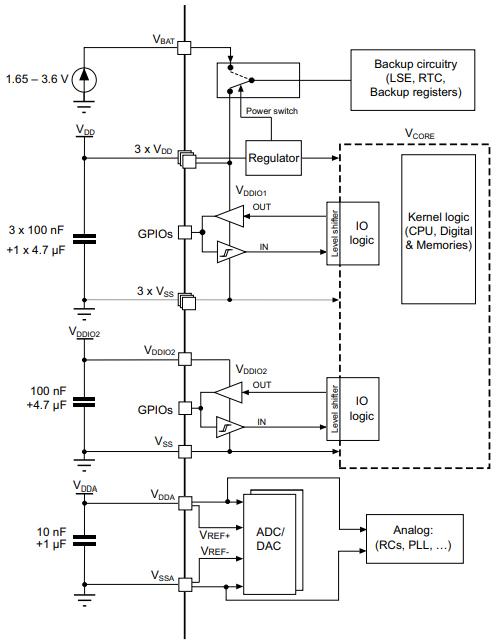

Power Supply Scheme

● Application control and user interfaces

● Hand-held equipment

● A/V receivers and digital TV

● PC peripherals

● Gaming and GPS platforms

● Industrial applications

● PLCs, inverters, printers, scanners, alarm systems

● Video intercoms and HVACs

The following diagram shows the STM32F091CC package.

LQFP48 Package Outline

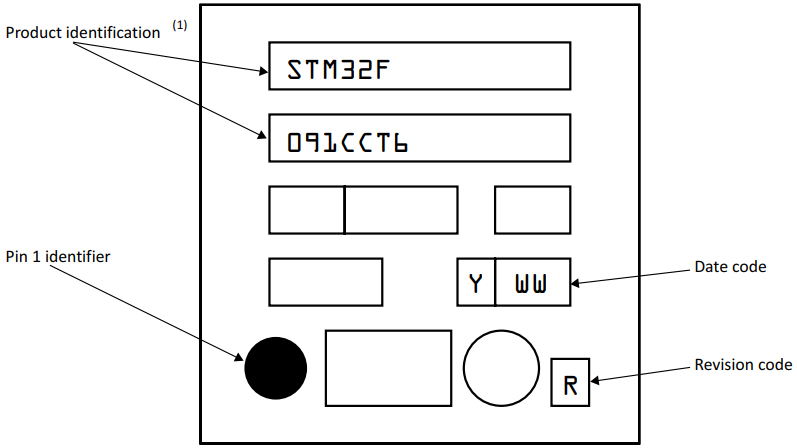

The following is the Package Marking Example of STM32F091CC.

LQFP48 Package Marking Example

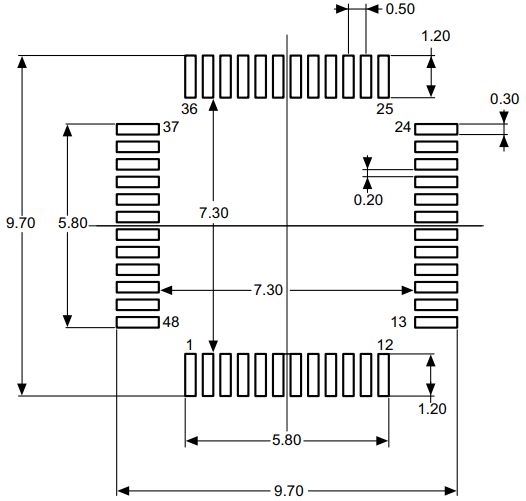

The following is the Package Recommended Footprint of STM32F091CC.

Recommended footprint for LQFP48 package

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Download datasheets and manufacturer documentation for STMicroelectronics STM32F091CCT6.
