Mixing machine driver made on STM32F100C8T6B
The STM32F100C8T6B incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This article will go into more detail about STM32F103R8T6, including pinout, CAD model, block diagram, features, and so on.
STM32F100C8T6B
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.32754 | $4.33 |
| 10+ | $4.08258 | $40.83 |
| 100+ | $3.85149 | $385.15 |
| 500+ | $3.63348 | $1816.74 |
| 1000+ | $3.42781 | $3427.81 |
The STM32F100C8T6B incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. The STM32F100C8T6B offers standard communication interfaces (up to two I2Cs, two SPIs, one HDMI CEC, and up to three USARTs), one 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers, and an advanced-control PWM timer.
The STM32F100C8T6B operates in the – 40 to + 85 °C and – 40 to + 105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. This microcontroller includes devices in three different packages ranging from 48 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included.
These features make the STM32F100C8T6B suitable for a wide range of applications such as application control and user interfaces, medical and hand-held equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
STM32F100C8T6B Pinout
STM32F100C8T6B Symbol

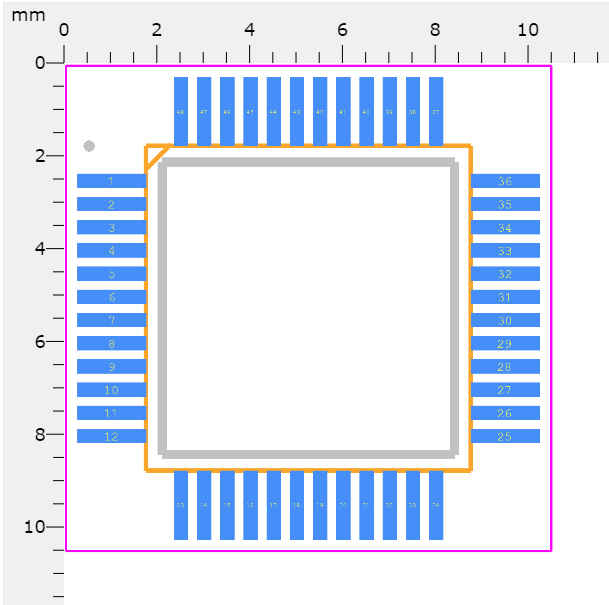

STM32F100C8T6B Footprint

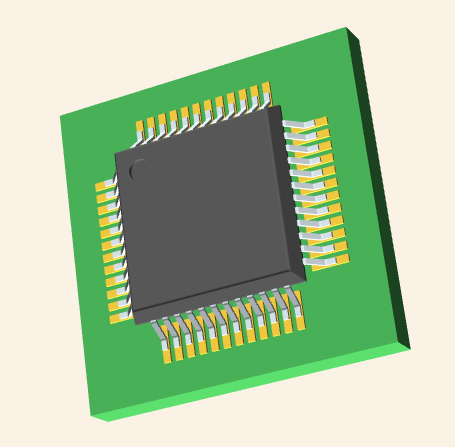

STM32F100C8T6B 3D Model

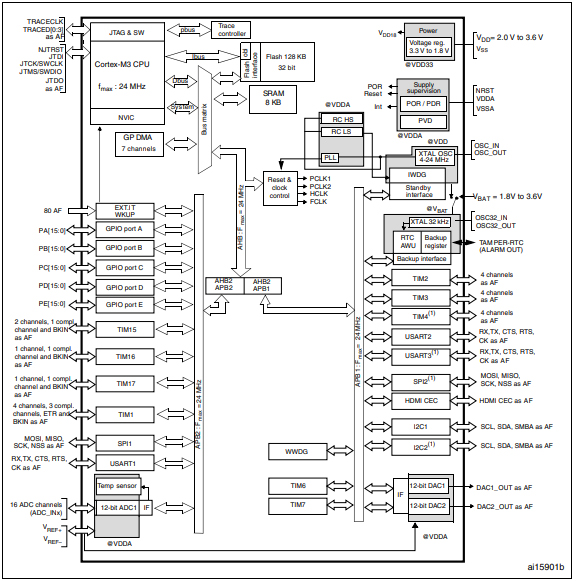

STM32F100C8T6B Block Diagram

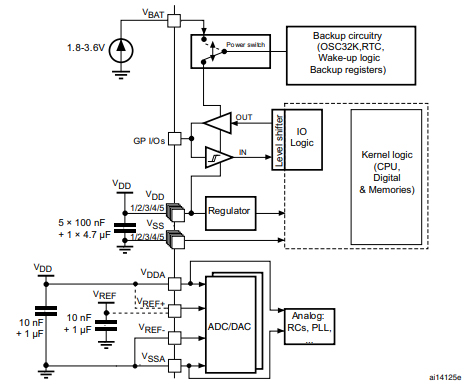

STM32F100C8T6B Power Supply Scheme
STMicroelectronics STM32F100C8T6B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F100C8T6B.
STMicroelectronics STM32F100C8T6B technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F100C8T6B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Contact Plating | Gold | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-LQFP | |
| Surface Mount | YES | |
| Number of Pins | 48Pins | |
| Data Converters | A/D 10x12b; D/A 2x12b | |
| Number of I/Os | 37I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F1 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 48Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Power Dissipation | 363mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | QUAD | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 24MHz | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | STM32F100 | |
| Pin Count | 48 | |
| Interface | I2C, IrDA, LIN, SPI, UART, USART | |
| Memory Size | 64kB | |
| Oscillator Type | Internal | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M3 | |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Program Memory Size | 64KB 64K x 8 | |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART | |
| Supply Current-Max | 15.7mA | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b | |
| Core Architecture | ARM | |
| CPU Family | CORTEX-M3 | |
| Number of ADC Channels | 10ADC Channels | |
| Number of PWM Channels | 6PWM Channels | |
| Number of I2C Channels | 2I2C Channels | |
| Height | 1.45mm | |
| Length | 7.2mm | |
| Width | 7.2mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Core: ARM® 32-bit Cortex®-M3 CPU
– 24 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance
– Single-cycle multiplication and hardware
division
• Memories
– 16 to 128 Kbytes of Flash memory
– 4 to 8 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Debug mode
– Serial wire debug (SWD) and JTAG interfaces
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I2Cs, USARTs, and DACs
• 1 × 12-bit, 1.2 µs A/D converter (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
• 2 × 12-bit D/A converters
• Up to 80 fast I/O ports
– 37/51/80 I/Os, all mappable on 16 external
interrupt vectors and almost all 5 V-tolerant
STM32F100C8T6B Package Dimension
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics STM32F100C8T6B.
Download datasheets and manufacturer documentation for STM32F100C8T6B
