STM32F103C6T6 is a 32-bit high-performance microcontroller based on the Arm® Cortex®-M4 processor with FPU and DSP functionality. This article will go into more detail about STM32F103C6T6, including pinout, CAD model, block diagram, features, and so on.
STM32F103C6T6
The STM32F103C6T6 incorporates the high-performance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 32 Kbytes and SRAM up to 6 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.
The STM32F103C6T6 operates from a 2.0 to 3.6 V power supply. It is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F103C6T6 includes devices in four different package types: from 36 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
These features make the STM32F103C6T6 low-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
STM32F103C6T6 Symbol
STM32F103C6T6 Footprint

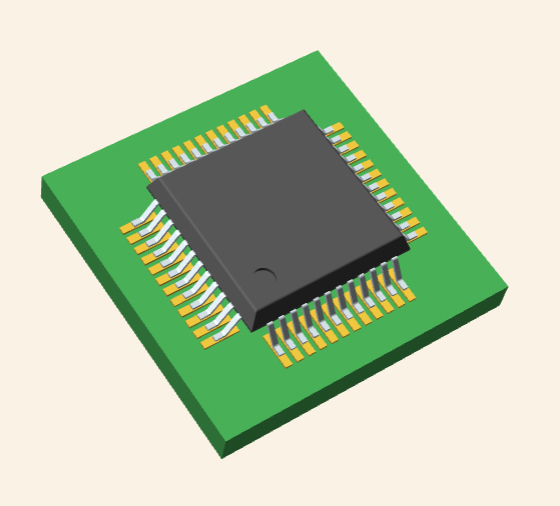

STM32F103C6T6 3D Model
STM32F103C6T6 Block Diagram
STM32F103C6T6 Power Supply Scheme
STMicroelectronics STM32F103C6T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103C6T6.
STMicroelectronics STM32F103C6T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103C6T6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-LQFP | |
| Number of Pins | 48Pins | |
| Data Converters | A/D 10x12b | |
| Number of I/Os | 37I/Os | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F1 | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 48Terminations | |
| Termination | SMD/SMT | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Max Power Dissipation | 363mW | |
| Terminal Position | QUAD | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 72MHz | |
| Base Part Number | STM32F103 | |
| Pin Count | 48 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Interface | CAN, I2C, IrDA, LIN, SPI, UART, USART, USB | |
| Memory Size | 32kB | |
| Oscillator Type | Internal | |
| RAM Size | 10K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Number of Bits | 32Bits | |
| Core Processor | ARM® Cortex®-M3 | |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Program Memory Size | 32KB 32K x 8 | |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB | |
| Supply Current-Max | 50mA | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b | |
| PWM Channels | YES | |
| DAC Channels | NO | |
| Number of Timers/Counters | 2Timers/Counters | |
| Density | 256 kb | |
| Core Architecture | ARM | |
| CPU Family | CORTEX-M3 | |
| Length | 7mm | |
| Height Seated (Max) | 1.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• ARM 32-bit Cortex™-M3 CPU Core
– 72 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 wait state memory
access
– Single-cycle multiplication and
hardware division
• Memories
– 16 or 32 Kbytes of Flash memory
– 6 or 10 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• 2 x 12-bit, 1 µs A/D converters (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Dual-sample and hold capability
– Temperature sensor
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I2Cs and USARTs
• Up to 51 fast I/O ports
– 26/37/51 I/Os, all mappable on 16 external
interrupt vectors and almost all 5 V-tolerant
STM32F103C6T6 Package Dimension
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics STM32F103C6T6.
Download datasheets and manufacturer documentation for STM32F103C6T6
