STM32F103C8T6 Microcontroller: Pinout, Datasheet, and Circuit

The STM32F103C8T6 is part of the STM32F103xx medium-density performance line family that incorporates the high performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103C8T6 offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN. The STM32F103C8T6 operates from a 2.0 to 3.6 V power supply. It is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

Symbol

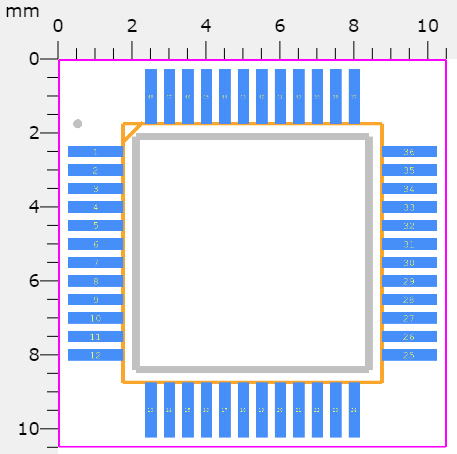

Footprint

3D Model

• ARM® 32-bit Cortex®-M3 CPU Core

•  72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access

•  Single-cycle multiplication and hardware division

• Memories

•  64 or 128 Kbytes of Flash memory

•  20 Kbytes of SRAM

• Clock, reset and supply management

•  2.0 to 3.6 V application supply and I/Os

•  POR, PDR, and programmable voltage detector (PVD)

•  4-to-16 MHz crystal oscillator

•  Internal 8 MHz factory-trimmed RC

•  Internal 40 kHz RC

•  PLL for CPU clock

•  32 kHz oscillator for RTC with calibration

• Low-power

•  Sleep, Stop and Standby modes

•  VBAT supply for RTC and backup registers

• 2 x 12-bit, 1 µs A/D converters (up to 16 channels)

•  Conversion range: 0 to 3.6 V

•  Dual-sample and hold capability

•  Temperature sensor

• DMA

•  7-channel DMA controller

•  Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs

• Up to 80 fast I/O ports

• 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

• Debug mode

• Serial wire debug (SWD) & JTAG interfaces

• 7 timers

•  Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

•  16-bit, motor control PWM timer with deadtime generation and emergency stop

•  2 watchdog timers (Independent and Window)

•  SysTick timer 24-bit downcounter

• Up to 9 communication interfaces

•  Up to 2 x I2C interfaces (SMBus/PMBus)

•  Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)

•  Up to 2 SPIs (18 Mbit/s)

•  CAN interface (2.0B Active)

•  USB 2.0 full-speed interface

• CRC calculation unit, 96-bit unique ID

• Packages are ECOPACK®

• Maximum integration

• Superior and innovative peripherals

• Oustanding power efficiency

• Excellent real-time behaviour

• Cross family pin-to-pin, peripheral and software compatibility

STMicroelectronics STM32F103C8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103C8T6.

• PLC

• Inverters

• Printers, scanners

• Industrial networking

• Alarm systems

• Video intercom

• HVAC

• Glucose meters

• Power meters

• Battery operated applications

• Motor drive

• Application control

• PC peripherals, gaming

• Digital camera, GPS platforms

STM32F103C8T6 Package Outline

STM32F103C8T6 Mechanical Data

STM32F103C8T6 Package Recommended Footprint

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Download datasheets and manufacturer documentation for STMicroelectronics STM32F103C8T6.
