STM32F103R8T6 Microcontroller: 72MHz,64-LQFP, Pinout and Features

The STM32F103R8T6 incorporates the high-performance Arm®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 128 Kbytes of Flash memory and 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (two I2Cs, two SPI/I2S, one HDMI CEC, and four USARTs), one USB Full-speed device (crystal-less), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer, and an advanced-control PWM timer.

The STM32F103R8T6 operates in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

The STM32F103R8T6 includes devices in seven different packages ranging from 48 pins to 100 pins with a dying form also available upon request. Depending on the device chosen, different sets of peripherals are included.

These features make the STM32F103R8T6 suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers, digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

STM32F103R8T6 Symbol

STM32F103R8T6 Footprint

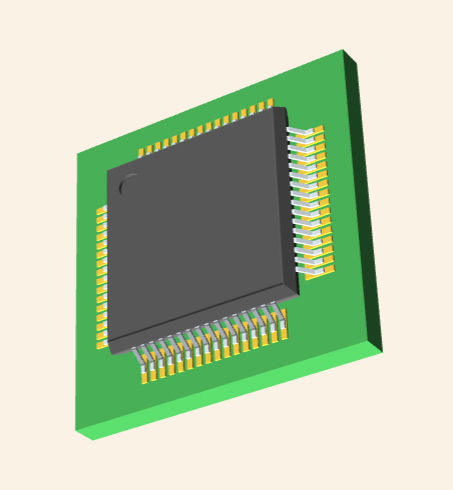

STM32F103R8T6 3D Model

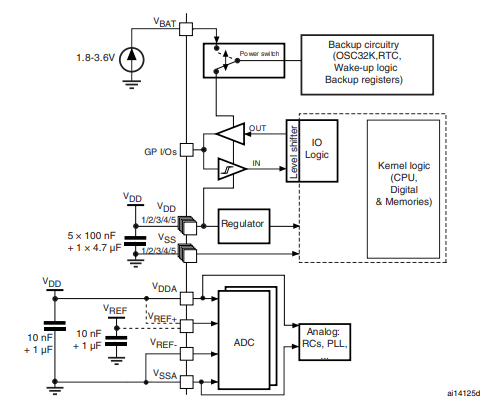

STM32F103R8T6 Power Supply Scheme

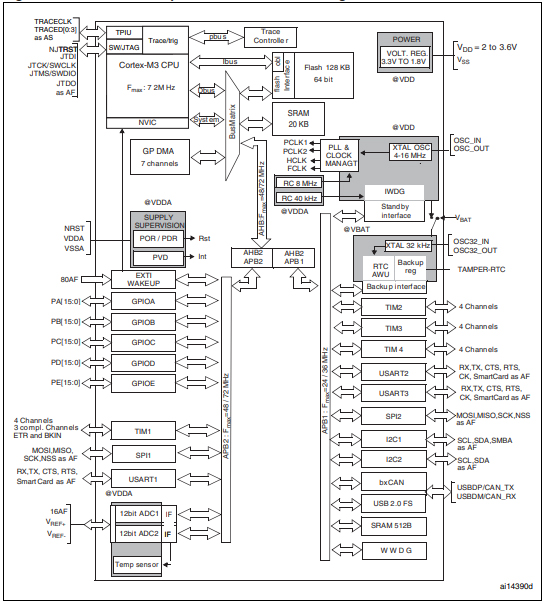

STMicroelectronics STM32F103R8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103R8T6.

■ Core: ARM 32-bit Cortex™-M3 CPU

– 72 MHz maximum frequency,

1.25 DMIPS/MHz (Dhrystone 2.1)

performance at 0 wait state memory

access

– Single-cycle multiplication and

hardware division

■ Memories

– 64 or 128 Kbytes of Flash memory

– 20 Kbytes of SRAM

■ Clock, reset, and supply management

– 2.0 to 3.6 V application supply and I/Os

– POR, PDR, and programmable voltage

detector (PVD)

– 4-to-16 MHz crystal oscillator

– Internal 8 MHz factory-trimmed RC

– Internal 40 kHz RC

– PLL for CPU clock

– 32 kHz oscillator for RTC with calibration

■ Low power

– Sleep, Stop and Standby modes

– VBAT supply for RTC and backup registers

■ 2 x 12-bit, 1 µs A/D converters (up to 16

channels)

– Conversion range: 0 to 3.6 V

– Dual-sample and hold capability

– Temperature sensor

■ DMA

– 7-channel DMA controller

– Peripherals supported: timers, ADC, SPIs,

I²Cs and USARTs

■ Up to 80 fast I/O ports

– 26/37/51/80 I/Os, all mappable on 16

external interrupt vectors and almost all

5 V-tolerant
