STM32F103VBT6: 72MHz, 100-LQFP, Pinout and Datasheet

The STM32F103VBT6  incorporates the high-performance  ARM Cortex™-M3 32-bit RISC  core operating at a 72 MHz frequency, high-speed embedded memories  (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

All devices offer two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.

The STM32F103VBT6  operates from a 2.0 to 3.6 V power supply. It is available in both the - 40 to +85°C temperature range and the -40 to +105°C extended temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.

The STM32F103VBT6  includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.

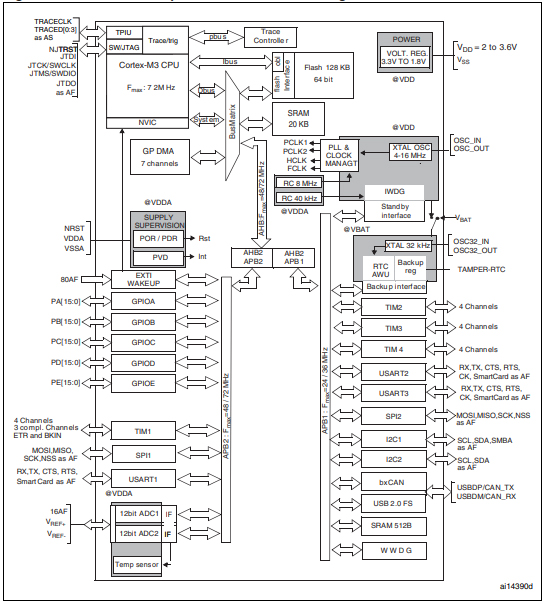

STM32F103VBT6 Block diagram

STM32F103VBT6 Symbol

STM32F103VBT6 Footprint

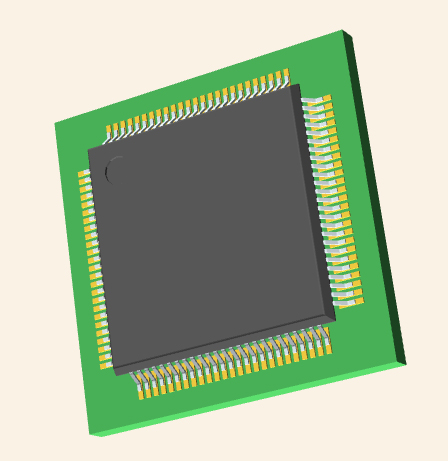

STM32F103VBT6 3D Model

■ Core: ARM 32-bit Cortex™-M3 CPU

– 72 MHz  maximum frequency,

1.25 DMIPS/MHz (Dhrystone 2.1)

performance at 0 wait state memory

access

– Single-cycle multiplication and hardware

division

■ Memories

– 64 or 128 Kbytes of Flash memory

– 20 Kbytes of SRAM

■ Clock, reset, and supply management

– 2.0 to 3.6 V application supply and I/Os

– POR, PDR, and programmable voltage

detector (PVD)

– 4-to-16 MHz crystal oscillator

– Internal 8 MHz factory-trimmed RC

– Internal 40 kHz RC

– PLL for CPU  clock

– 32 kHz oscillator for RTC with calibration

■ Low power

– Sleep, Stop and Standby modes

– VBAT supply for RTC and backup registers

■ 2 x 12-bit, 1 µs A/D converters (up to 16

channels)

– Conversion range: 0 to 3.6 V

– Dual-sample and hold capability

– Temperature sensor

■ DMA

– 7-channel DMA controller

– Peripherals supported: timers, ADC, SPIs,

I²Cs and USARTs

■ Up to 80 fast I/O ports

– 26/37/51/80 I/Os, all mappable on 16

external interrupt vectors and almost all

5 V-tolerant

STMicroelectronics STM32F103VBT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103VBT6.

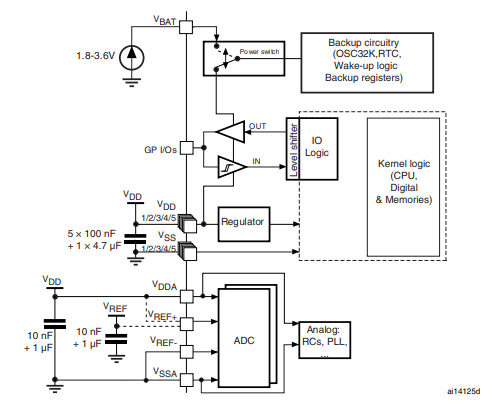

STM32F103VBT6 Power supply scheme

The MCU  is placed under the following conditions  :

• All  I/O  pins are in input mode with a static value at VDD  or VSS (no load).

• All peripherals are disabled except if it is explicitly mentioned.

• The Flash access time is adjusted to IH CLK frequency (0 wait state from 0 to 24 MHz, 1 wait for state from 24 to 48 MHz, and 2 wait states above).

• Ambient temperature and VDD  supply voltage conditions are summarized in Table 9.

• Prefetch is ON (Reminder: this bit must be set before clock setting and bus prescaling)

• When the peripherals are enabled fPCLK1  = fHCLK/4, fPCLK2  = fHCLK/2, fADCCLK  =fPCLK2/4
