STM32F302R8T6 Microcontroller: Pinout, Datasheet, and Specification

The STM32F302R8T6 is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 72 MHz and embedding a floating point unit (FPU). The STM32F302R8T6 incorporates high-speed embedded memories (up to 64 Kbytes of Flash memory, 16 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices feature standard and advanced communication interfaces: three I2Cs, up to three USARTs, up to two SPIs with multiplexed full-duplex I2S, a USB FS device, a CAN, and an infrared transmitter. And they offer a fast 12-bit ADC (5 Msps), three comparators, an operational amplifier, up to 18 capacitive sensing channels, one DAC channel, a low-power RTC, one generalpurpose 32-bit timer, one timer dedicated to motor control, and up to three general-purpose 16-bit timers, and one timer to drive the DAC.

The STM32F302R8T6 operates in the –40 to +85°C and –40 to +105°C temperature ranges from at a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. The STM32F302R8T6 offers devices in 32-, 48-, 49- and 64-pin packages. The set of included peripherals changes with the device chosen.

Symbol

Footprint

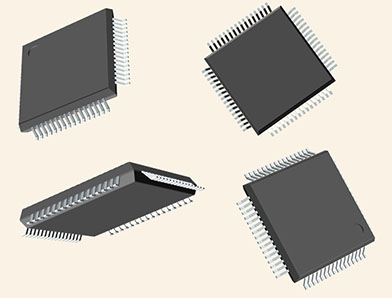

3D Model

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU (72 MHz max.), single-cycle multiplication and HW division, DSP instruction

• Memories

• 32 to 64 Kbytes of Flash memory

• 16 Kbytes of SRAM on data bus

• CRC calculation unit

• Reset and power management

• VDD, VDDA voltage range: 2.0 to 3.6 V

• Power-on/Power down reset (POR/PDR)

• Programmable voltage detector (PVD)

• Low-power: Sleep, Stop, and Standby

• VBAT supply for RTC and backup registers

• Clock management

• 4 to 32 MHz crystal oscillator

• 32 kHz oscillator for RTC with calibration

• Internal 8 MHz RC with x 16 PLL option

• Internal 40 kHz oscillator

• Up to 51 fast I/O ports, all mappable on external interrupt vectors, several 5 V-tolerant

• Interconnect matrix

• 7-channel DMA controller supporting timers, ADCs, SPIs, I2Cs, USARTs and DAC

• 1 × ADC 0.20 μs (up to 15 channels) with selectable resolution of 12/10/8/6 bits, 0 to 3.6 V conversion range, single ended/differential mode, separate analog supply from 2.0 to 3.6 V

• Temperature sensor

• 1 x 12-bit DAC channel with analog supply from 2.4 to 3.6 V

• Three fast rail-to-rail analog comparators with analog supply from 2.0 to 3.6 V

• 1 x operational amplifier that can be used in PGA mode, all terminal accessible with analog supply from 2.4 to 3.6 V

• Up to 18 capacitive sensing channels supporting touchkey, linear and rotary sensors

• Up to 9 timers

• One 32-bit timer with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• One 16-bit 6-channel advanced-control timer, with up to 6 PWM channels, deadtime generation and emergency stop

• Three 16-bit timers with IC/OC/OCN or PWM, deadtime gen. and emergency stop

• One 16-bit basic timer to drive the DAC

• 2 watchdog timers (independent, window)

• SysTick timer: 24-bit downcounter

• Calendar RTC with alarm, periodic wakeup from Stop/Standby

• Communication interfaces

• Three I2Cs with 20 mA current sink to support Fast mode plus

• Up to 3 USARTs, 1 with ISO 7816 I/F, auto baudrate detect and Dual clock domain

• Up to two SPIs with multiplexed full duplex I2S

• USB 2.0 full-speed interface

• 1 x CAN interface (2.0B Active)

• Infrared transmitter

• Serial wire debug (SWD), JTAG

• 96-bit unique ID

STMicroelectronics STM32F302R8T6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F302R8T6.

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package outline

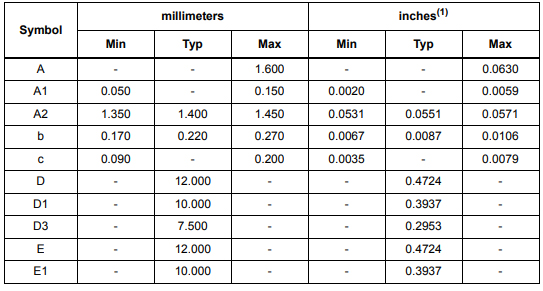

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package mechanical data

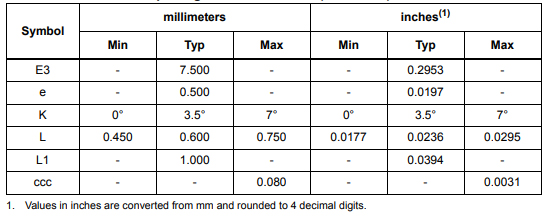

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package mechanical data (continued)

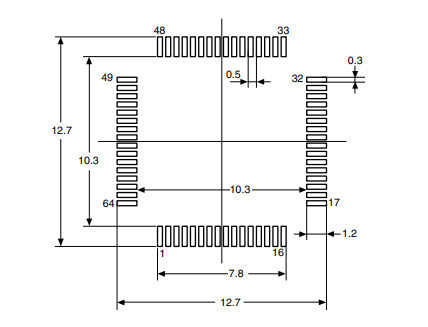

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package recommended footprint
