STM32F302VEH6 Microcontroller: 72MHz, 100-UFBGA, Pinout and Features

The STM32F302VEH6 is based on the high-performance ARM® Cortex®-M4 32-bit RISC core with FPU operating at a frequency of 72 MHz, and embedding a floating-point unit (FPU), a memory protection unit (MPU), and an embedded trace macrocell (ETM). The STM32F302VEH6 incorporates high-speed embedded memories (512-Kbyte Flash memory, 64-Kbyte SRAM), a flexible memory controller (FSMC) for static memories (SRAM, PSRAM, NOR, and NAND), and an extensive range of enhanced I/Os and peripherals connected to an AHB and two APB buses.

The device offers two fast 12-bit ADCs (5 Msps), four comparators, two operational amplifiers, one DAC channel, a low-power RTC, up to two general-purpose 16-bit timers, one general-purpose 32-bit timer, and one-timer dedicated to motor control. They also feature standard and advanced communication interfaces: up to three I2Cs, up to four SPIs (two SPIs are with multiplexed full-duplex I2Ss), three USARTs, up to two UARTs, CAN and USB. To achieve audio class accuracy, the I2S peripherals can be clocked via an external PLL.

The STM32F302VEH6 operates in the -40 to +85°C and -40 to +105°C temperature ranges from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

The STM32F302VEH6 offers devices in different packages ranging from 64 to 144 pins.

Depending on the device chosen, different sets of peripherals are included.+

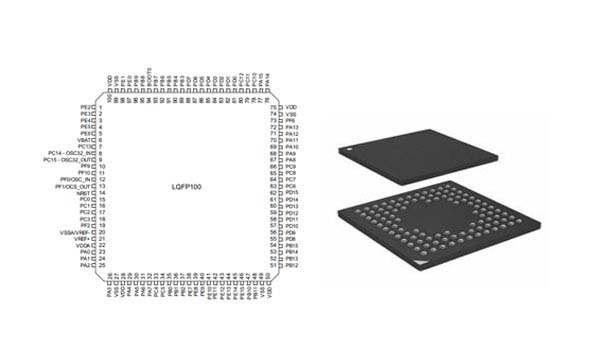

STM32F302VEH6 Pinout

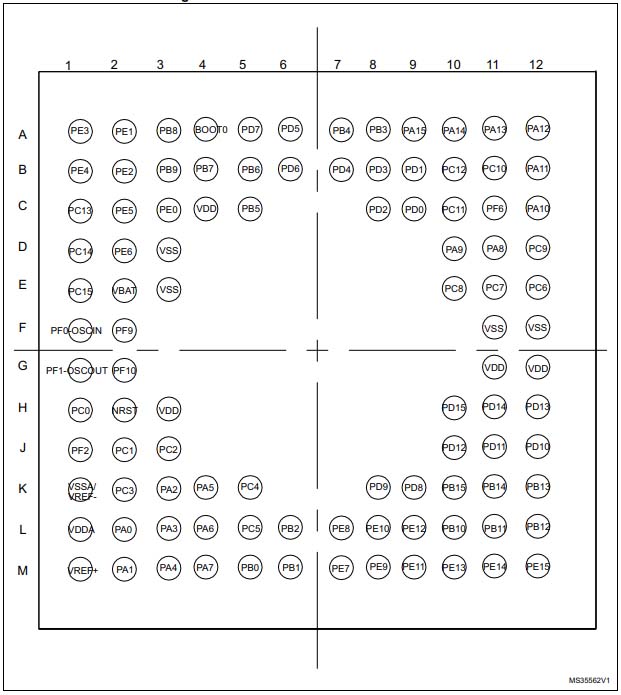

STM32F302VEH6 Ballout

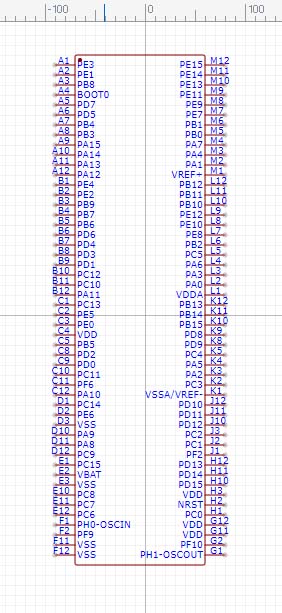

STM32F302VEH6 Symbol

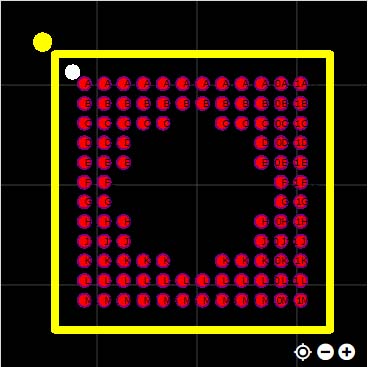

STM32F302VEH6 Footprint

STM32F302VEH6 3D Model

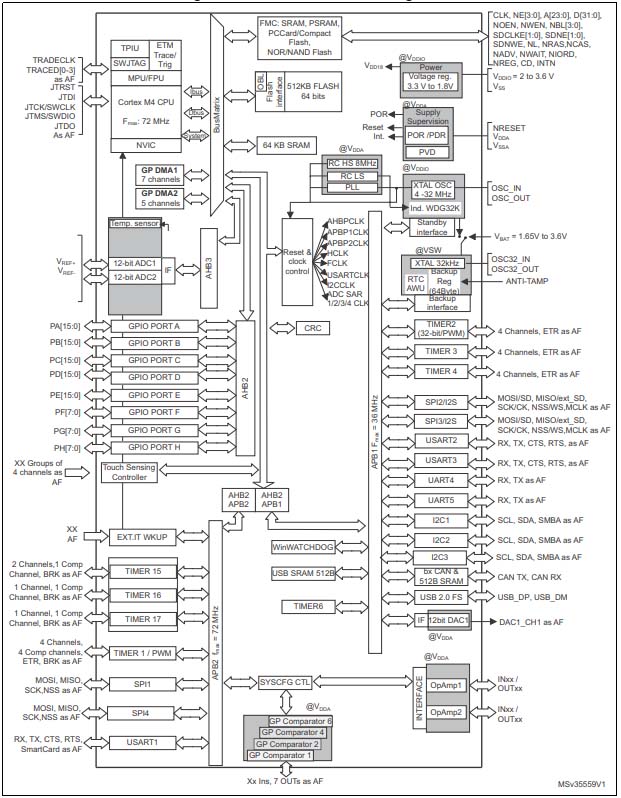

STM32F302VEH6 Block Diagram

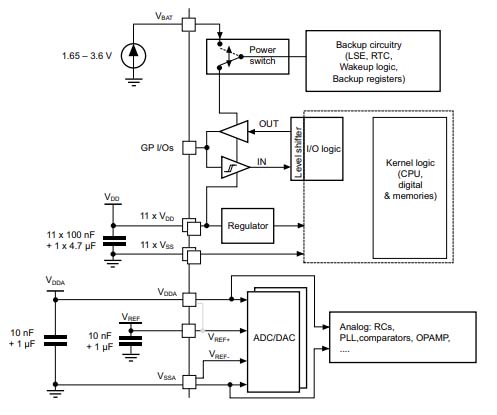

STM32F302VEH6 Power Supply Scheme

STMicroelectronics STM32F302VEH6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F302VEH6.

• Core: ARM® Cortex®-M4 32-bit CPU with

72 MHz FPU, single-cycle multiplication and

HW division, DSP instruction, and MPU

(memory protection unit)

• Operating conditions:

– VDD, VDDA voltage range: 2.0 V to 3.6 V

• Memories

– Up to 512 Kbytes of Flash memory

– 64 Kbytes of SRAM, with HW parity check

implemented on the first 32 Kbytes.

– Flexible memory controller (FSMC) for

static memories, with four Chip Select

• CRC calculation unit

• Reset and supply management

– Power-on/Power-down reset (POR/PDR)

– Programmable voltage detector (PVD)

– Low-power modes: Sleep, Stop, and Standby

– VBAT supply for RTC and backup registers

• Clock management

– 4 to 32 MHz crystal oscillator

– 32 kHz oscillator for RTC with calibration

– Internal 8 MHz RC with x 16 PLL option

– Internal 40 kHz oscillator

• Up to 115 fast I/Os

– All mappable on external interrupt vectors

– Several 5 V-tolerant

• Interconnect matrix

• 12-channel DMA controller

• Two ADCs 0.20 µs (up to 18 channels) with

selectable resolution of 12/10/8/6 bits, 0 to

3.6 V conversion range, separate analog

supply from 2.0 to 3.6 V

• One 12-bit DAC channel with analog supply

from 2.4 to 3.6 V

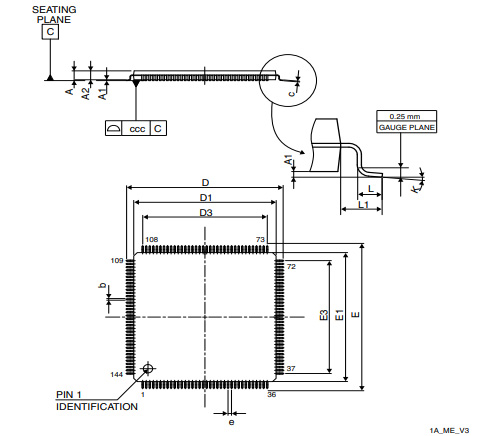

STM32F302VEH6 Package Dimension
