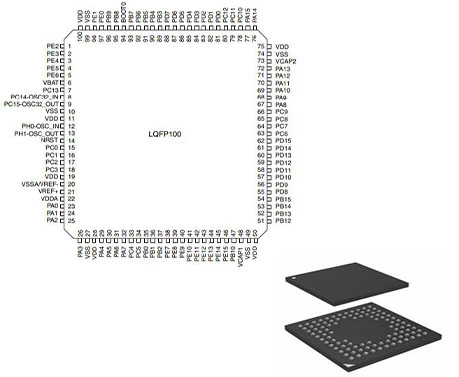

STM32F401VDH6 Microcontroller: Pinout, Datasheet, Features

STM32F401VDH6 is a microcontroller included in STM32F401XD/XE devices,based on the high-performance ARM® Cortex® -M4 32- bit RISC core operating at a frequency of up to 84 MHz. Its Cortex®-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision dataprocessing instructions and data types, which also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

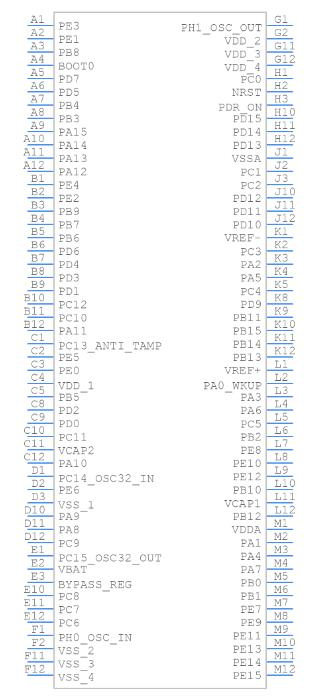

Symbol

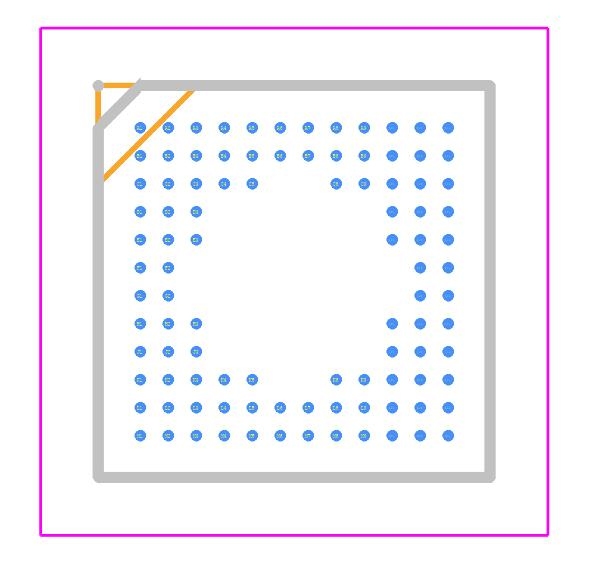

Footprint

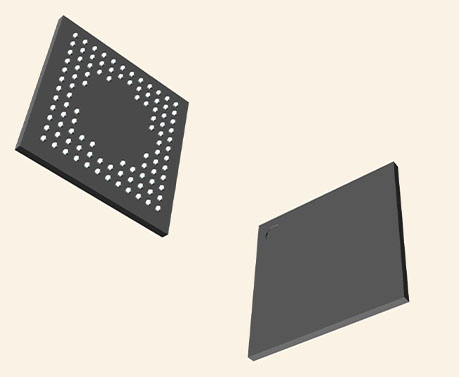

3D Model

•Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

•Memories

– up to 512 Kbytes of Flash memory

– up to 96 Kbytes of SRAM

•Clock, reset and supply management

– 1.7 V to 3.6 V application supply and I/Os

– POR, PDR, PVD and BOR

– 4-to-26 MHz crystal oscillator

– Internal 16 MHz factory-trimmed RC

– 32 kHz oscillator for RTC with calibration

– Internal 32 kHz RC with calibration

•Power consumption

– Run: 146 µA/MHz (peripheral off)

– Stop (Flash in Stop mode, fast wakeup time): 42 µA Typ @ 25C; 65 µA max @25 °C

– Stop (Flash in Deep power down mode, fast wakeup time): down to 10 µA @ 25 °C; 30 µA max @25 °C

– Standby: 2.4 µA @25 °C / 1.7 V without RTC; 12 µA @85 °C @1.7 V

– VBAT supply for RTC: 1 µA @25 °C

• 1×12-bit, 2.4 MSPS A/D converter: up to 16 channels

• General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support

• Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to four

IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer

•Debug mode

–Serial wire debug (SWD) & JTAG interfaces

– Cortex®-M4 Embedded Trace Macrocell™

• Up to 81 I/O ports with interrupt capability

– Up to 78 fast I/Os up to 42 MHz

– All I/O ports are 5 V-tolerant

•Up to 12 communication interfaces

– Up to 3 x I2C interfaces (SMBus/PMBus)

– Up to 3 USARTs (2 x 10.5 Mbit/s,

1 x 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control)

– Up to 4 SPIs (up to 42Mbit/s at fCPU = 84 MHz), SPI2 and SPI3 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock

– SDIO interface

– Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY

• CRC calculation unit

• 96-bit unique ID

• RTC: subsecond accuracy, hardware calendar

• All packages (WLCSP49, LQFP64/100, UFQFPN48, UFBGA100) are ECOPACK®2

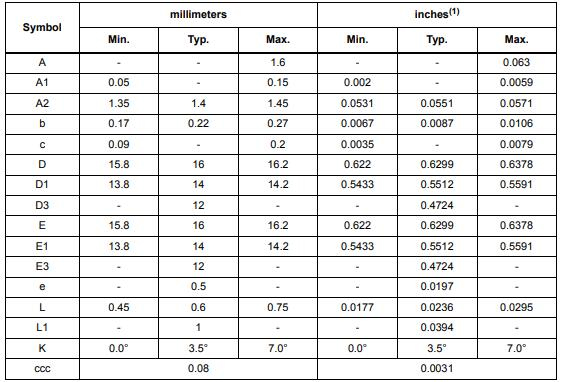

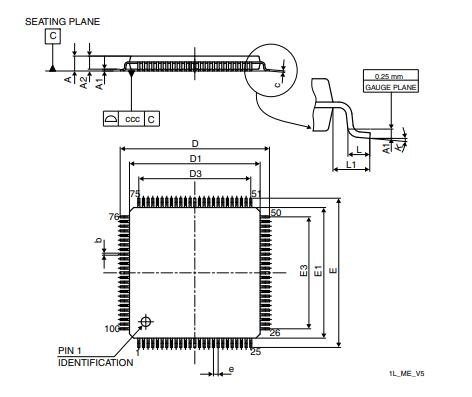

STMicroelectronics STM32F401VDH6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F401VDH6.

•Motor drive and application control

• Medical equipment

• Industrial applications: PLC, inverters, circuit breakers

• Printers, and scanners

• Alarm systems, video intercom, and HVAC

• Home audio appliances

• Mobile phone sensor hub

Download datasheets and manufacturer documentation for STMicroelectronics STM32F401VDH6.
