STM32F405RGT6 CS4344 MicroSD
Embedded - Microcontrollers A/D 16x12b; D/A 2x12b 64-LQFP 1MB Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT -40°C~85°C TA 1.8V~3.6V STM32F4 MICROCONTROLLER, RISC STM32F405 168MHz MCU 32-bit STM32F ARM Cortex M4F RISC 1024KB Flash 2.5V/3.3V 64-Pin LQFP Tray
STM32F405RGT6 is ARM Microcontrollers-MCU ARM M4 1024 FLASH 168 Mhz 192kB SRAM. This article will go into more details about STM32F405RGT6, including pinout, CAD model, block diagram, features and so on.
STM32F405RGT6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.23054 | $9.23 |
| 10+ | $8.70806 | $87.08 |
| 100+ | $8.21515 | $821.52 |
| 500+ | $7.75014 | $3875.07 |
| 1000+ | $7.31145 | $7311.45 |
The STM32F405xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, and a true random number generator (RNG). They also feature standard and advanced communication interfaces.
The STM32F405xx and STM32F407xx family operates in the –40 to +105 °C temperature range from a 1.8 to 3.6 V power supply. The supply voltage can drop to 1.7 V when the device operates in the 0 to 70 °C temperature range using an external power supply supervisor.
STM32F405RGT6 symbol
STM32F405RGT6 footprint
STM32F405RGT6 3D model
ART Accelerator™ enabling 0 wait state executing from internal Flash
Up to 2x USB2.0 OTG FS/HS
SDIO
USART, SPI, I²C
16-bit and 32-bit timers
Up to 3x 12-bit ADC
Up to 2x 12-bit DAC
External memory controller
1.7V to 3.6V low voltage
STMicroelectronics STM32F405RGT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F405RGT6.
STMicroelectronics STM32F405RGT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F405RGT6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 64-LQFP | |
| Surface Mount | YES | |
| Number of Pins | 64Pins | |
| Data Converters | A/D 16x12b; D/A 2x12b | |
| Number of I/Os | 51I/Os | |
| ROM(word) | 1048576 | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F4 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 64Terminations | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | QUAD | |
| Terminal Form | GULL WING | |
| Supply Voltage | 3.3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Pitch | 0.5mm | |
| Frequency | 168MHz | |
| Base Part Number | STM32F405 | |
| Pin Count | 64 | |
| Supply Voltage-Min (Vsup) | 1.8V | |
| Interface | CAN, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB | |
| Memory Size | 1MB | |
| Oscillator Type | Internal | |
| RAM Size | 192K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M4 | |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit | |
| Program Memory Size | 1MB 1M x 8 | |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG | |
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Bus Width | 32b |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Timers/Counters | 14Timers/Counters | |
| Core Architecture | ARM | |
| CPU Family | CORTEX-M4 | |
| Boundary Scan | YES | |
| Low Power Mode | YES | |
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| RAM (words) | 196608 | |
| Number of ADC Channels | 16ADC Channels | |
| Number of External Interrupts | 16External Interrupts | |
| Number of PWM Channels | 2PWM Channels | |
| Number of I2C Channels | 3I2C Channels | |
| Height | 1.45mm | |
| Length | 10mm | |
| Width | 10mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
|
Part Number |
Manufacturer |
Package |
Description |
|
STM32F405RGT6 |
STMicroelectronics |
64-LQFP |
MCU 32-bit STM32F ARM Cortex M4F RISC 1024KB Flash 2.5V/3.3V 64-Pin LQFP Tray |
|
STM32F405RGT6TR |
STMicroelectronics |
64-LQFP |
STM32F Series 1 MB Flash 192 KB RAM 168 MHz 32-Bit Microcontroller - LQFP-64 |
|
STM32F405RGT6V |
STMicroelectronics |
64-LQFP |
ARM Microcontrollers - MCU 32B ARM Cortex-M4 1Mb Flash 168MHz CPU |
|
STM32F405RGT6W |
STMicroelectronics |
64-LQFP |
MCU 32-bit STM32F ARM Cortex M4F RISC 1024KB Flash 2.5V/3.3V 64-Pin LQFP Tray |
|
STM32F405RGT6U |
STMicroelectronics |
LQFP |
MCU, 32BIT, CORTEX-M4, 168MHZ, LQFP-64 |
The STM32F405xx family offers devices in various packages ranging from 64 pins to 176 pins. The set of included peripherals changes with the device chosen.
These features make the STM32F405xx microcontroller family suitable for a wide range of applications:
• Motor drive and application control
• Medical equipment
• Industrial applications: PLC, inverters, circuit breakers
• Printers, and scanners
• Alarm systems, video intercom, and HVAC
• Home audio appliances
LQFP64 – 64-pin, 10 x 10 mm low-profile quad flat package outline

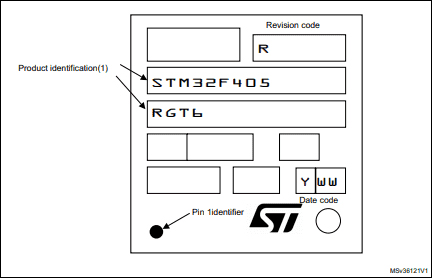

Device marking for LQFP64
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics STM32F405RGT6.
Download datasheets and manufacturer documentation for STM32F405RGT6
