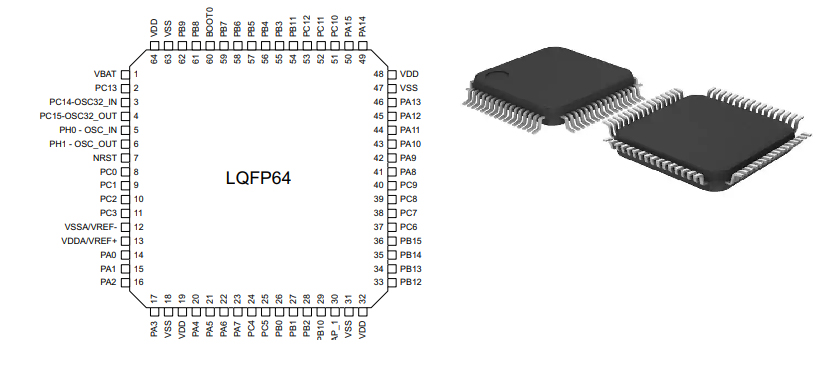

STM32F410RBT7 Microcontroller: Pinout, Datasheet, and Circuit

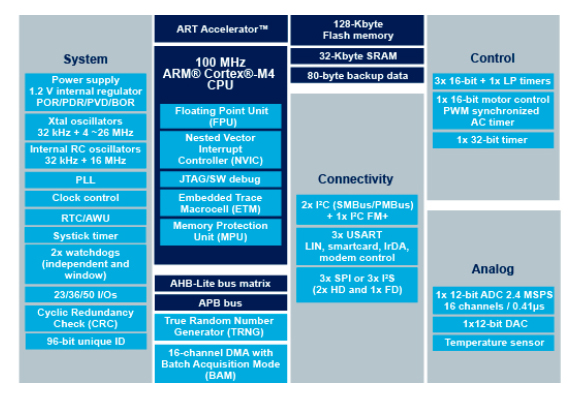

The STM32F410RBT7 is based on the high-performance ARM®Cortex® -M4 32-bit RISC core operating at a frequency of up to 100 MHz. It's Cortex®-M4 core features a floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F410RBT7 belongs to the STM32 Dynamic Efficiency™ product line (with products combining power efficiency, performance and integration) while adding a new innovative feature called Batch Acquisition Mode (BAM) allowing to save even more power consumption during data batching.
The STM32F410RBT7 incorporates high-speed embedded memories (up to 128 Kbytes of Flash memory, 32 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, one AHB bus and a 32-bit multi-AHB bus matrix.
It offers one 12-bit ADC, one 12-bit DAC, a low-power RTC, three general-purpose 16-bit timers, one PWM timer for motor control, one general-purpose 32-bit timers and one 16-bit low-power timer. And it also features standard and advanced communication interfaces.

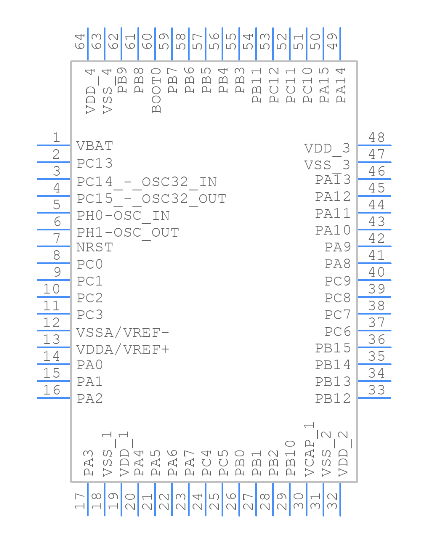

Symbol

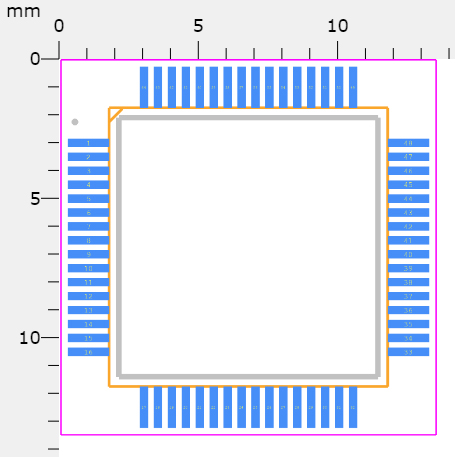

Footprint

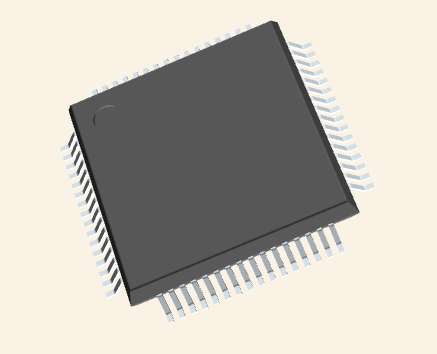

3D

• Dynamic Efficiency Line with eBAM (enhanced Batch Acquisition Mode)

• 1.7 V to 3.6 V power supply

• -40 °C to 85/105/125 °C temperature range

• Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

• Memories

• Up to 128 Kbytes of Flash memory

• 512 bytes of OTP memory

• 32 Kbytes of SRAM

• Clock, reset and supply management

• 1.7 V to 3.6 V application supply and I/Os

• POR, PDR, PVD and BOR

• 4-to-26 MHz crystal oscillator

• Internal 16 MHz factory-trimmed RC

• 32 kHz oscillator for RTC with calibration

• Internal 32 kHz RC with calibration

• Power consumption

• Run: 89 µA/MHz (peripheral off)

• Stop (Flash in Stop mode, fast wakeup time): 40 µA Typ @ 25 °C; 49 µA max @25 °C

• Stop (Flash in Deep power down mode, slow wakeup time): down to 6 µA @ 25 °C; 14 µA max @25 °C

• Standby: 2.4 µA @25 °C / 1.7 V without RTC; 12 µA @85 °C @1.7 V

• VBAT supply for RTC: 1 µA @25 °C

• 1×12-bit, 2.4 MSPS ADC: up to 16 channels

• 1×12-bit D/A converter

• General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support

• Up to 9 timers

• One low-power timer (available in Stop mode)

• One 16-bit advanced motor-control timer

• Three 16-bit general purpose timers

• One 32-bit timer up to 100 MHz with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• Two watchdog timers (independent window)

• SysTick timer.

• Debug mode

• Serial wire debug (SWD) & JTAG interfaces

• Cortex® -M4 Embedded Trace Macrocell™

• Up to 50 I/O ports with interrupt capability

• Up to 45 fast I/Os up to 100 MHz

• Up to 49 5 V-tolerant I/Os

• Up to 9 communication interfaces

• Up to 3x I2C interfaces (SMBus/PMBus) including 1x I2C Fast-mode at 1 MHz

• Up to 3 USARTs (2 x 12.5 Mbit/s, 1 x 6.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control)

• Up to 3 SPI/I2Ss (up to 50 Mbit/s SPI or I2S audio protocol)

• True random number generator

• CRC calculation unit

• 96-bit unique ID

• RTC: subsecond accuracy, hardware calendar

• All packages are ECOPACK®2

STMicroelectronics STM32F410RBT7 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F410RBT7.

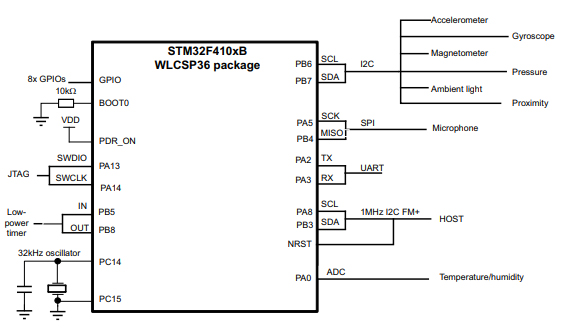

Sensor Hub Application Example 1

Sensor Hub Application Example 2

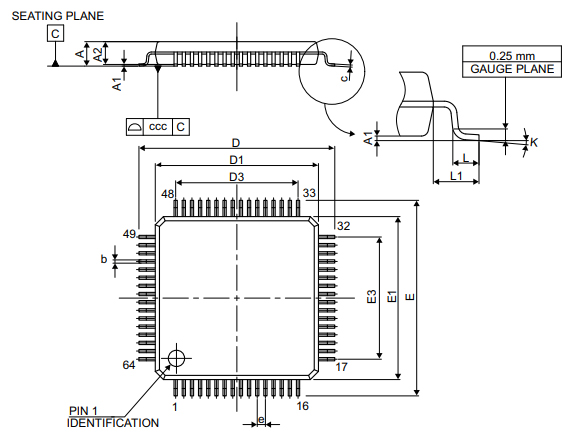

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package outline

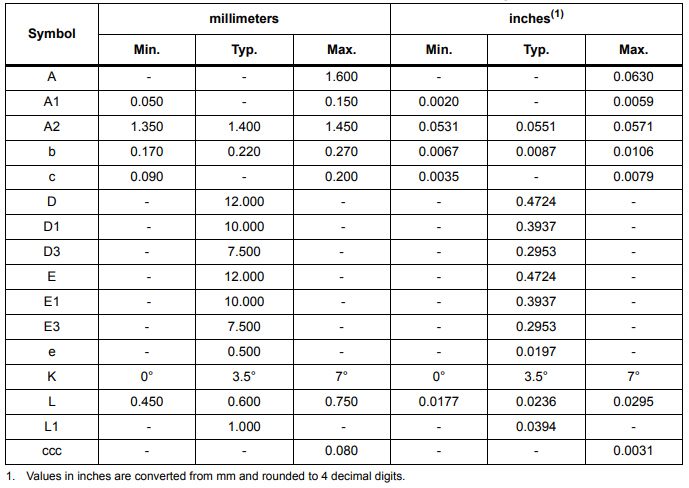

LQFP64 - 64-pin, 10 x 10 mm low-profile quad flat package mechanical data

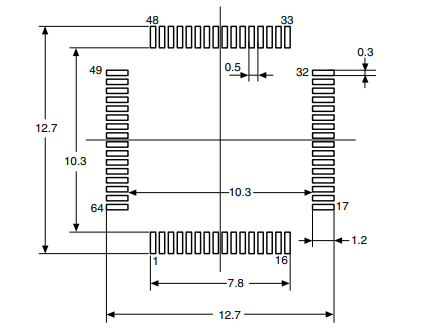

LQFP64 recommended footprint
