The STM32F427VIT6 is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. This article will go into more detail about STM32F427VIT6, including pinout, CAD model, block diagram, features, and so on.
STM32F427VIT6
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $15.24828 | $15.25 |
| 10+ | $14.38517 | $143.85 |
| 100+ | $13.57092 | $1357.09 |
| 500+ | $12.80275 | $6401.38 |
| 1000+ | $12.07807 | $12078.07 |
The STM32F427VIT6 is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F427VIT6 incorporates high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.
The STM32F427VIT6 offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.
They also feature standard and advanced communication interfaces.
• Up to three I2Cs
• Six SPIs, two I2Ss full-duplex. To achieve audio class accuracy, the I2S peripherals can
be clocked via a dedicated internal audio PLL or via an external clock to allow
synchronization.
• Four USARTs plus four UARTs
• An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the
ULPI),
• Two CANs
• One SAI serial audio interface
• An SDIO/MMC interface
• Ethernet and camera interface
• LCD-TFT display controller
• Chrom-ART Accelerator™.
STM32F427VIT6 Pinout
STM32F427VIT6 Symbol

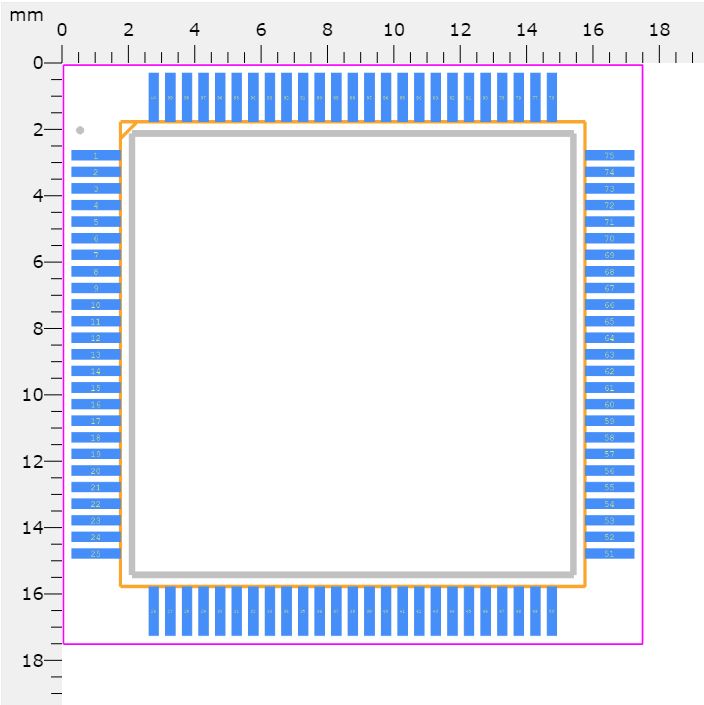

STM32F427VIT6 Footprint

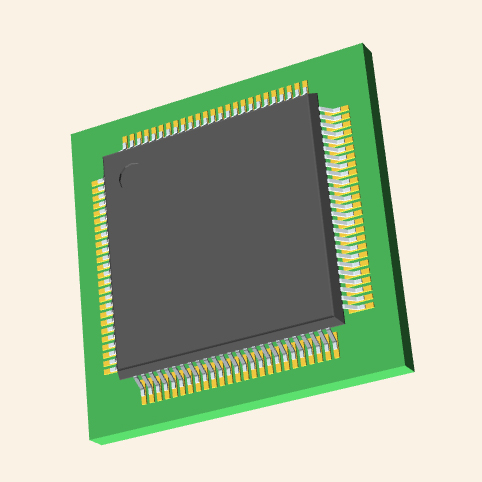

STM32F427VIT6 3D Model
STM32F427VIT6 Block Diagram

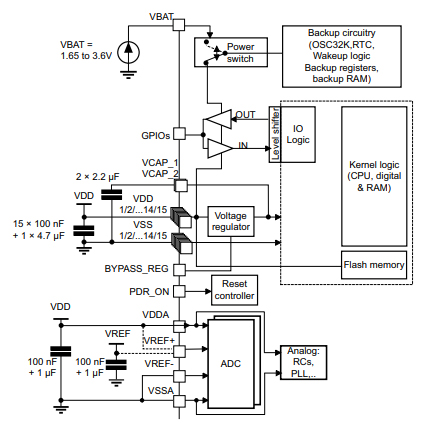

STM32F427VIT6 Power Supply Scheme
STMicroelectronics STM32F427VIT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F427VIT6.
STMicroelectronics STM32F427VIT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F427VIT6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 100-LQFP | |
| Surface Mount | YES | |
| Number of Pins | 100Pins | |
| Data Converters | A/D 16x12b; D/A 2x12b | |
| Number of I/Os | 82I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| Series | STM32F4 | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 100Terminations | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | QUAD | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 180MHz | |
| Base Part Number | STM32F427 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Power Supplies | 2/3.3V | |
| Interface | CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB | |
| Memory Size | 2MB | |
| Oscillator Type | Internal | |
| RAM Size | 256K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8V~3.6V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC | |
| Core Processor | ARM® Cortex®-M4 | |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 32-Bit | |
| Program Memory Size | 2MB 2M x 8 | |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bit Size | 32 | |
| Has ADC | YES | |
| DMA Channels | YES | |
| Data Rate | 480 Mbps | |
| Data Bus Width | 32b | |
| PWM Channels | YES | |
| Number of Timers/Counters | 14Timers/Counters | |
| Core Architecture | ARM | |
| CPU Family | CORTEX-M4 | |
| Number of ADC Channels | 16ADC Channels | |
| Number of USB Channels | 1USB Channel | |
| Height | 1.45mm | |
| Length | 14mm | |
| Width | 14.2mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

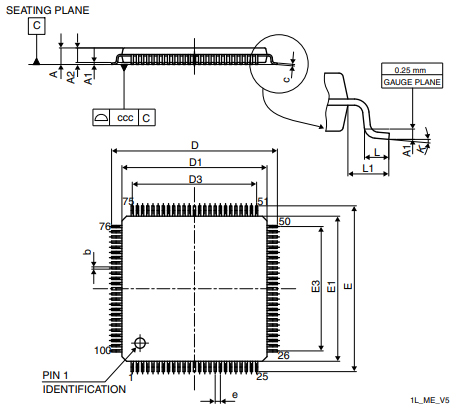

STM32F427VIT6 Package Dimension
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics STM32F427VIT6.
Download datasheets and manufacturer documentation for STM32F427VIT6
