STM32F429IIT6 STMicroelectronics: Specification, Datasheet, Manufacturer And Features

The STM32F429IIT6 is a Microcontroller Unit, based on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180MHz. The Cortex-M4 core features a floating-point unit (FPU) single precision which supports all ARM® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It incorporates high-speed embedded memories, up to 4Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.

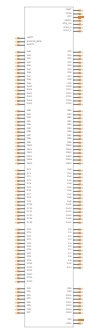

Symbol

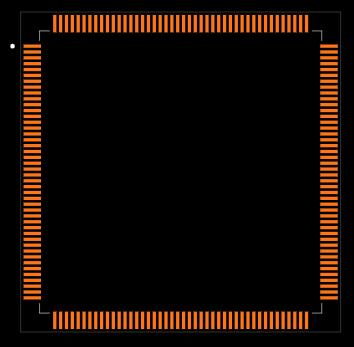

Footprint

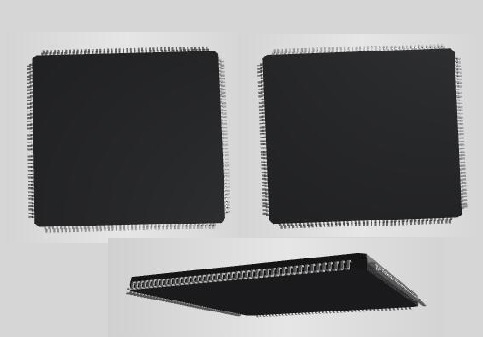

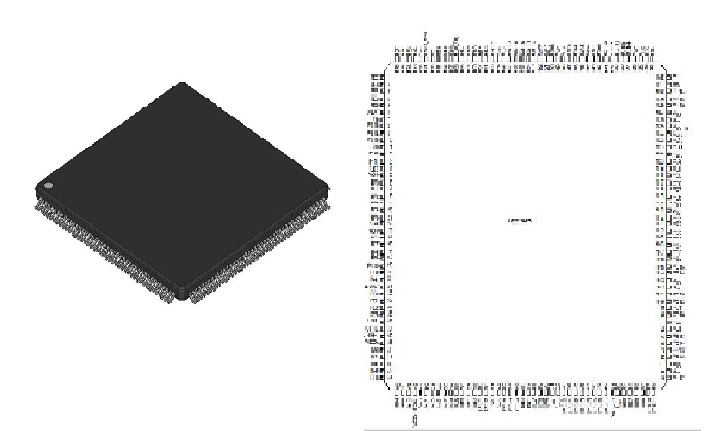

3D Models

• Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

• Memories

    -Up to 2 MB of Flash memory organized into two banks allowing read-while-write

    -Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM

    -Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, Compact               Flash/NOR/NAND memories

• LCD parallel interface, 8080/6800 modes

• LCD-TFT controller up to XGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)

•  Clock, reset, and supply management

     -1.7 V to 3.6 V application supply and I/Os

     -POR, PDR, PVD, and BOR

     -4-to-26 MHz crystal oscillator

     -Internal 16 MHz factory-trimmed RC (1% accuracy)

     -32 kHz oscillator for RTC with calibration

     -Internal 32 kHz RC with calibration

• Low power

     -Sleep, Stop and Standby modes

     -VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM

• 3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode

• 2×12-bit D/A converters

• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

• Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

• Debug mode

     -SWD & JTAG interfaces

     -Cortex-M4 Trace Macrocell™

• Up to 168 I/O ports with interrupt capability

     -Up to 164 fast I/Os up to 90 MHz

     -Up to 166 5 V-tolerant I/Os

• Up to 21 communication interfaces

     -Up to 3 × I²C interfaces (SMBus/PMBus)

     -Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)

     -Up to 6 SPIs (45 Mbits/s), 2 with muxed full-duplex I²S for audio class accuracy via internal audio PLL or external clock

     -1 x SAI (serial audio interface)

     -2 × CAN (2.0B Active) and SDIO interface

• Advanced connectivity

     -USB 2.0 full-speed device/host/OTG controller with on-chip PHY

     -USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY, and ULPI

     -10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

• 8- to 14-bit parallel camera interface up to 54 Mbytes/s

• True random number generator

• CRC calculation unit

• RTC: subsecond accuracy, hardware calendar

• 96-bit unique ID

STMicroelectronics STM32F429IIT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F429IIT6.

STM32 F4 Cortex™-M4 MCUs

The STM32F429IIT6 is a Microcontroller Unit, based on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180MHz. The Cortex-M4 core features a floating-point unit (FPU) single precision which supports all ARM® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It incorporates high-speed embedded memories, up to 4Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.

STMicroelectronics STM32 F4 32-bit Cortex™-M4 Microcontrollers (MCUs) offer better performance, DSP capability, more SRAM, and peripheral improvements such as full-duplex I²S, less than 1μA RTC, and 2.4MSPS ADCs. These MCUs include a floating-point unit and core features such as built-in single-cycle multiply-accumulate (MAC) instructions, optimized SIMD arithmetic, and saturating arithmetic instructions.
